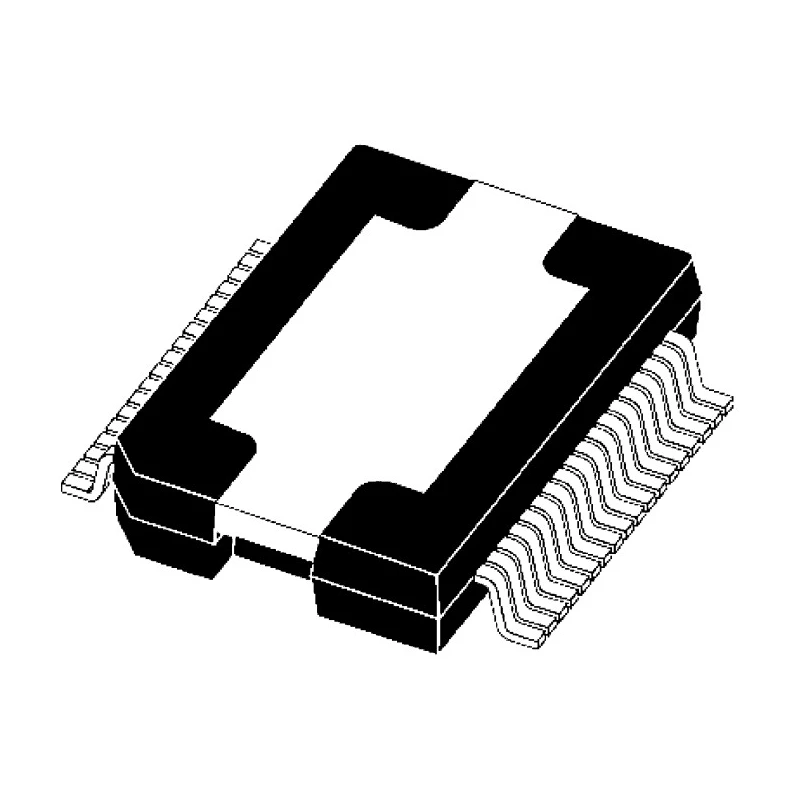

STMicroelectronics Brushed DC Motor Driver IC 52 V 2.8 A PowerSO 36-Pin L6207PD

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Brushed DC Motor Driver IC 52 V 2.8 A PowerSO 36-Pin L6207PD

Name: STMicroelectronics Brushed DC Motor Driver IC 52 V 2.8 A PowerSO 36-Pin L6207PD
Brand: STMicroelectronics
SKU: 219138
Price: 12.07 USD
Availability: InStock



Category Motor Driver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	3.3mm
Length	16mm
Model	L6207PD
Width	11.1mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	L6207
Configuration	Full Bridge
Output Current	5.6A
Maximum Operating Temperature	150°C
Package Type	PowerSO
Minimum Operating Temperature	-40°C
Pin Count	36
Maximum Collector Emitter Voltage Vceo	52V
Maximum Supply Voltage	52V
Minimum Supply Voltage	8V
Supply Current	2.8A
Maximum IGBT Collector Current	2.8A
Typical Switching Frequency	100kHz

Key Features

Operates with a supply voltage range from 8 V to 52 V.
Maximum IGBT collector current of 2.8 A and output current up to 5.6 A.
Typical switching frequency of 100 kHz ensures efficient motor control.
Surface mount package type with compact dimensions of 16 mm length, 11.1 mm width, and 3.3 mm height.
Capable of operating in temperatures from -40°C up to 150°C.
No automotive standard compliance, making it suitable for general industrial applications.
Designed for improved production efficiency through ready-for-insertion packaging.
Ideal for electronic components, power management, and motor driver IC applications.

Product Description

STMicroelectronics L6207PD is a robust Brushed DC Motor Driver IC designed for industrial and electronic applications requiring reliable and efficient motor control. Housed in a compact PowerSO 36-pin surface mount package, this device supports full bridge configuration with a maximum collector-emitter voltage of 52 V and an output current capability of 5.6 A, ideal for powering Brushed DC motors.

The integrated driver IC can operate over a wide supply voltage range from 8 V to 52 V, making it versatile for various power requirements. It supports a typical switching frequency of 100 kHz, which enhances switching efficiency and reduces power losses. The device is designed to withstand operating temperatures from -40°C to 150°C, suitable for demanding industrial environments.

With its 36-pin package and compact physical dimensions - 16 mm length, 11.1 mm width, and 3.3 mm height - the L6207PD is suitable for surface mounting on PCBs in automated assembly processes. Though it does not meet automotive standards, its capability and construction make it a reliable choice for general industrial and electronic motor driver applications.

The L6207PD supports full bridge motor drive configurations, enabling the control of forward and reverse motor rotation efficiently.

Industrial use cases include motor control in robotics, manufacturing automation, HVAC motor drivers, and other electronic control systems requiring precise brushed DC motor operation. The PowerSO package also facilitates thermal management in embedded environments.

Operates with a supply voltage range from 8 V to 52 V. Maximum IGBT collector current of 2.8 A and output current up to 5.6 A. Typical switching frequency of 100 kHz ensures efficient motor control. Surface mount package with dimensions 16 mm x 11.1 mm x 3.3 mm.

Wide operating temperature range from -40°C to 150°C. Full bridge configuration for brushed DC motors. Compact 36-pin PowerSO package for PCB mounting. Ideal for industrial motor driver applications. For more products like the STMicroelectronics L6207PD, explore our Motor Driver IC category to find motor control solutions for various industrial and electronic applications.
