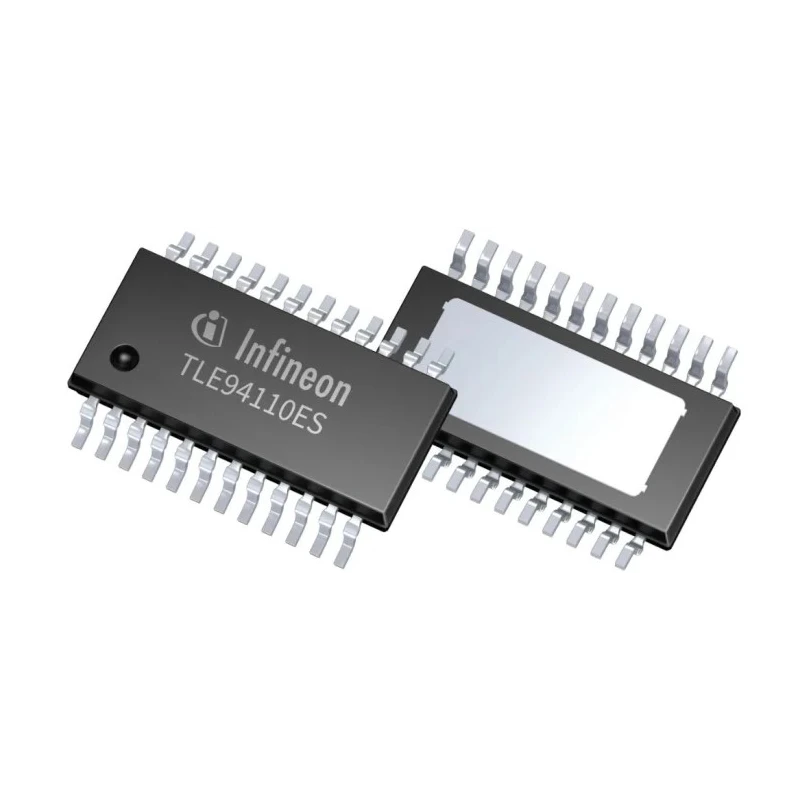

Infineon Motor Driver IC Dual Channel 2A Output Current 40V Max Supply PG-TSDSO-24 TLE94110ESXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Motor Driver IC Dual Channel 2A Output Current 40V Max Supply PG-TSDSO-24 TLE94110ESXUMA1

Name: Infineon Motor Driver IC Dual Channel 2A Output Current 40V Max Supply PG-TSDSO-24 TLE94110ESXUMA1
Brand: Infineon
SKU: 203607
Price: 2.61 USD
Availability: InStock



Category Motor Driver IC Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.15mm
Length	8.65mm
Model	TLE94110ESXUMA1
Width	3.9mm
Mount Type	Surface
Series	TLE
Output Current	2A
Maximum Operating Temperature	150°C
Package Type	PG-TSDSO-24
Minimum Operating Temperature	-40°C
Number of outputs	10
Rise Time	80ns
Pin Count	24
Minimum Supply Voltage	40V
Number of Drivers	2
Fall Time	80ns

Key Features

This device supports controlling motors and actuators in industrial electronic systems.
It operates over a wide temperature range from -40°C to 150°C for harsh environment use.
Ten discrete outputs enable effective multi-channel load management.
Fast 80ns rise and fall times reduce switching losses and improve efficiency.
The compact surface-mount package measures 8.65 mm length, 3.9 mm width, and 1.15 mm height for dense assembly integration.
Dual drivers provide independent control of two motor channels.
Designed for automotive standard non-compliant industrial applications.
Suitable for robotic drive electronics and multi-channel actuator interfaces.

Product Description

Infineon TLE94110ESXUMA1 is a dual-channel motor driver integrated circuit designed for industrial motor control applications. It delivers a maximum output current of 2A per channel and can operate at supply voltages up to 40V, making it suitable for medium-load motors and actuators.

The device supports harsh industrial environments with an operating temperature range from -40°C to 150°C. Its ten outputs enable multi-channel load management, supporting complex system partitioning and signal distribution.

Packaged in a compact 24-pin PG-TSDSO-24 surface-mount package (8.65 mm x 3.9 mm x 1.15 mm), the IC fits well in space-constrained designs on dense PCB assemblies. The 80ns rise and fall time specifications minimize switching losses and electromagnetic interference, optimizing performance and efficiency.

This motor driver IC is ideal for industrial motor control modules, robotic drive electronics, and multi-channel actuator interfaces. It is designed to meet the needs of control systems requiring fast switching and reliable load management in demanding environments.

Key features of TLE94110ESXUMA1 include dual independent drivers, high-voltage motor control capability, and robust thermal performance supporting elevated usage scenarios. Its package and electrical characteristics make it suitable for integration in compact power assemblies and industrial electronic systems.

This motor driver IC enables industrial motor and actuator control with 2A output current. Wide operating voltage range up to 40V supports diverse motor types. Compact PG-TSDSO-24 package ensures space-efficient PCB integration.

Fast switching times of 80ns rise and fall reduce losses and EMI. Broad temperature tolerance from -40°C to 150°C for harsh conditions. Multiple outputs and dual drivers allow complex multi-channel control. Designed for industrial and robotic applications requiring fast and reliable switching.

Surface-mount mount type suited for automated SMT assembly.

For professionals seeking reliable and efficient industrial motor control solutions, Infineon’s TLE94110ESXUMA1 offers advanced features in a compact package. Explore EnvMart’s Power Management ICs category to find a range of high-quality Motor Driver ICs from leading manufacturers.
