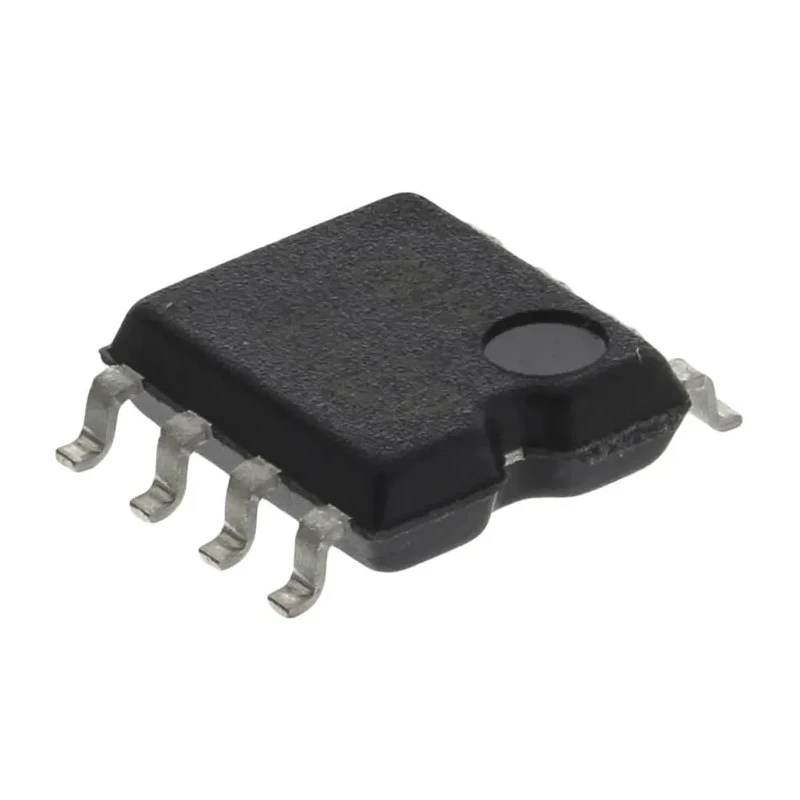

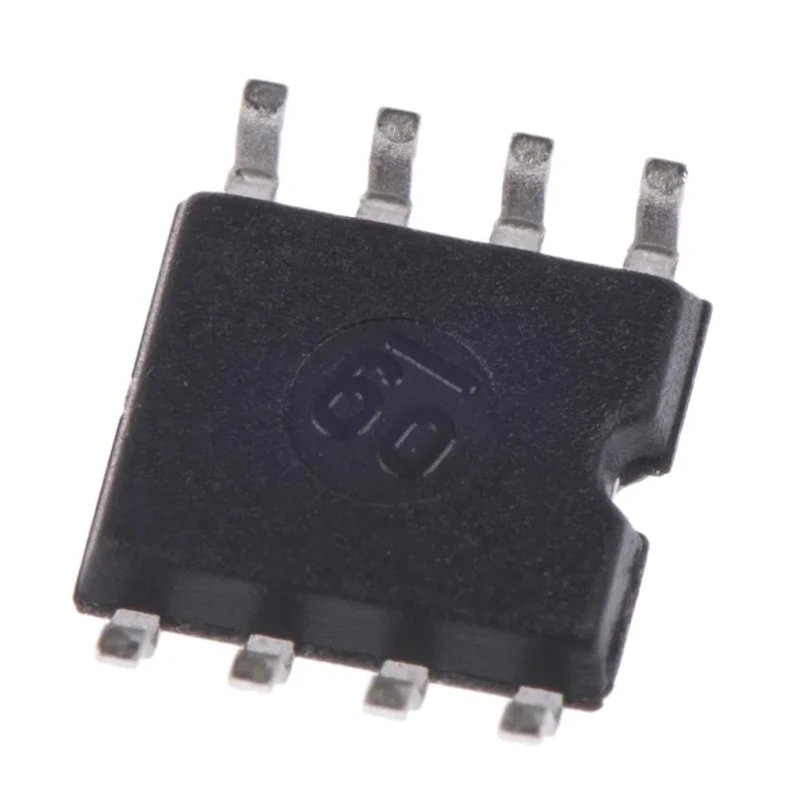

ROHM Brushed DC Motor Motor Driver IC 7 V 1 A 8-Pin SOP BD6211F-E2

Free Delivery in India | Lowest Global Shipping Charges

ROHM Brushed DC Motor Motor Driver IC 7 V 1 A 8-Pin SOP BD6211F-E2

Name: ROHM Brushed DC Motor Motor Driver IC 7 V 1 A 8-Pin SOP BD6211F-E2
Brand: ROHM
SKU: 214019
Price: 2.26 USD
Availability: InStock



Category Motor Driver IC Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	1.5mm
Length	5mm
Model	BD6211F-E2
Width	4.4mm
Motor Type	Brushed DC Motor
Mount Type	Surface
Series	BD6211F
Configuration	Half Bridge
Output Current	1A
Maximum Operating Temperature	85°C
Package Type	SOP
Minimum Operating Temperature	-40°C
Pin Count	8
Maximum Collector Emitter Voltage Vceo	7V
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Supply Current	1.5mA
Maximum IGBT Collector Current	1A
Typical Switching Frequency	100kHz
Inverter Power Rating	0.68W

Key Features

Designed for brushed DC motor drive applications with a half bridge configuration.
Supports maximum IGBT collector current of 1 A for reliable motor control.
Operates within a voltage range of 3 V minimum supply to 5.5 V maximum supply.
Compact SOP package with 8 pins ensures easy surface mounting.
Wide operating temperature from -40°C to 85°C suitable for various environments.
Typical switching frequency of 100 kHz enables efficient motor operation.
Low inverter power rating of 0.68 W for reduced energy consumption.
Supply current is low at 1.5 mA, supporting energy-efficient applications.

Product Description

ROHM BD6211F-E2 is a Brushed DC Motor Driver IC designed for precise control of brushed DC motors. This Motor Driver IC comes in an 8-pin SOP surface mount package and supports a half bridge configuration suitable for various motor control applications. The IC can handle a maximum IGBT collector current of 1 A and operates within a collector-emitter voltage of 7 V, making it well-suited for compact motor drive systems.

Operating voltage ranges from a minimum supply of 3 V to a maximum of 5.5 V, with a typical switching frequency of 100 kHz, which ensures efficient and smooth motor operation. The device operates reliably over a wide temperature range, from -40°C to 85°C, supporting industrial, automotive (though not certified), and general-purpose applications.

The low inverter power rating of 0.68 W coupled with a supply current of just 1.5 mA results in energy-efficient performance, ideal for embedded and battery-powered devices. The compact dimensions of 5 mm length, 4.4 mm width, and 1.5 mm height enable integration in space-constrained PCB layouts.

This IC is mainly used in industrial automation, robotics, home appliances, and other electronics systems that require precise brushed DC motor control. It is supplied on reels for efficient assembly in mass production.

Designed for brushed DC motor drive with half bridge configuration. Maximum current handling of 1 A with 7 V maximum voltage. Surface mount SOP package for space saving and automated PCB assembly. Wide operating temperature range from -40°C to 85°C.

High switching frequency of 100 kHz for smooth operation. Low power consumption with inverter rating of 0.68 W and supply current of 1.5 mA. Compact size: 5 mm × 4.4 mm × 1.5 mm. Explore a wide range of power management ICs and motor driver solutions at EnvMart to complement your electronic designs.
