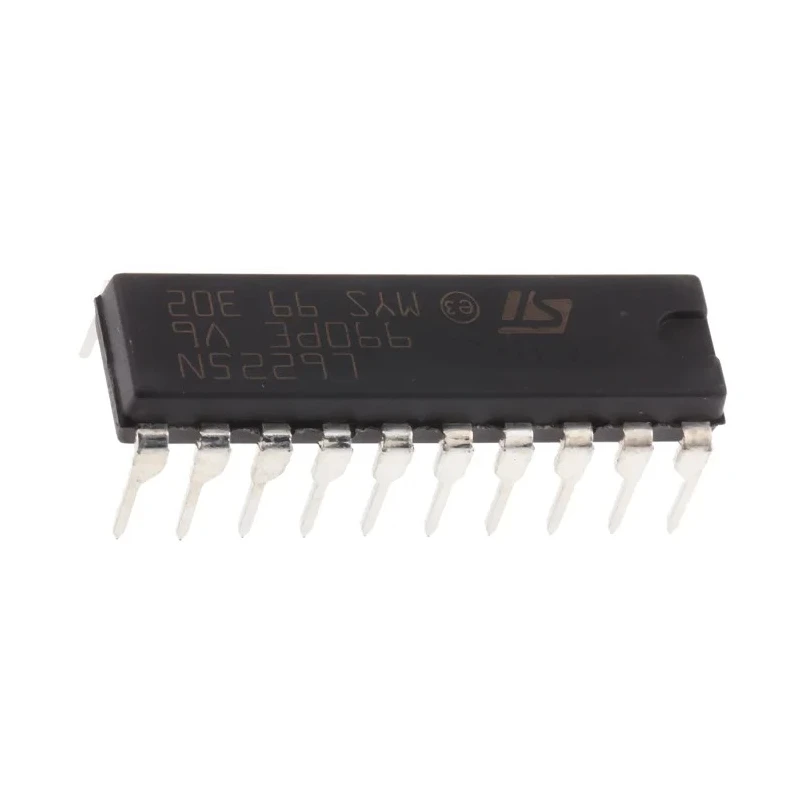

STMicroelectronics Brushed DC Motor Driver IC Full Bridge 52 V 1.4 A 20-Pin PDIP L6225N

STMicroelectronics L6225N is a high-performance Brushed DC Motor Driver IC featuring a full bridge configuration designed for efficient and precise motor control applications. Operating with a maximum collector emitter voltage of 52 V and collector current of 1.4 A, this device supports robust motor driving functionality within embedded systems and industrial automation setups.

Encapsulated in a 20-pin PDIP through-hole package, the L6225N offers convenient integration into printed circuit boards, enabling reliable power delivery and switching capabilities demanded by multi-phase brush motor drivers.

With a typical switching frequency of 100 kHz, the IC delivers smooth and responsive motor control, efficiently translating logic input commands from microcontrollers or digital signal processors into power output for brushed DC motors.

The operating temperature range from -40°C to 150°C ensures the device performs reliably under harsh environmental conditions commonly encountered in industrial and automotive sectors.

This motor driver IC supports supply voltages ranging from 8 V up to 52 V, catering to diverse motor control system voltage requirements. Output current capacity of up to 2.8 A allows for effective control of motors requiring higher torque.

Its full bridge configuration coupled with compatibility for microcontrollers, DSPs, or FPGAs makes STMicroelectronics L6225N an essential component in precision motion control, robotics, HVAC systems, and automated manufacturing processes.

Designed for driving brushed DC motors using logic commands. Full bridge configuration supporting a maximum IGBT collector current of 1.4 A. Wide supply voltage range from 8 V to 52 V. Typical switching frequency of 100 kHz for efficient motor control.

Operating temperature range from -40°C to 150°C for robust performance. Through hole mounting type with a compact PDIP package design. Output current capability up to 2.8 A ensuring strong drive performance. Pin count of 20 compatible with standard PCB layouts.

Suitable for use with microcontrollers, DSPs, or FPGAs in motor control systems. Reliable power management IC for industrial and embedded applications.

Available for immediate integration in electronic and industrial control systems, the L6225N enhances efficiency and reliability in motor driver applications. Explore more STMicroelectronics Motor Driver ICs and components on EnvMart.
