onsemi Brushless DC Motor, AC Motor Driver IC 1.2 kV 40 A 27-Pin Through Hole SPM3 FSBB20CH120D

Free Delivery in India | Lowest Global Shipping Charges

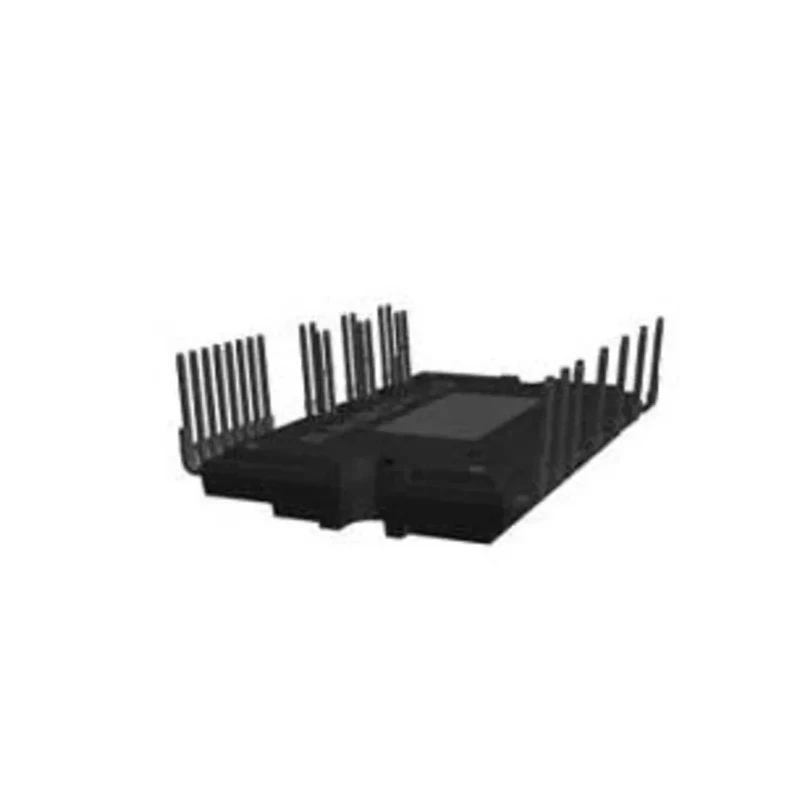

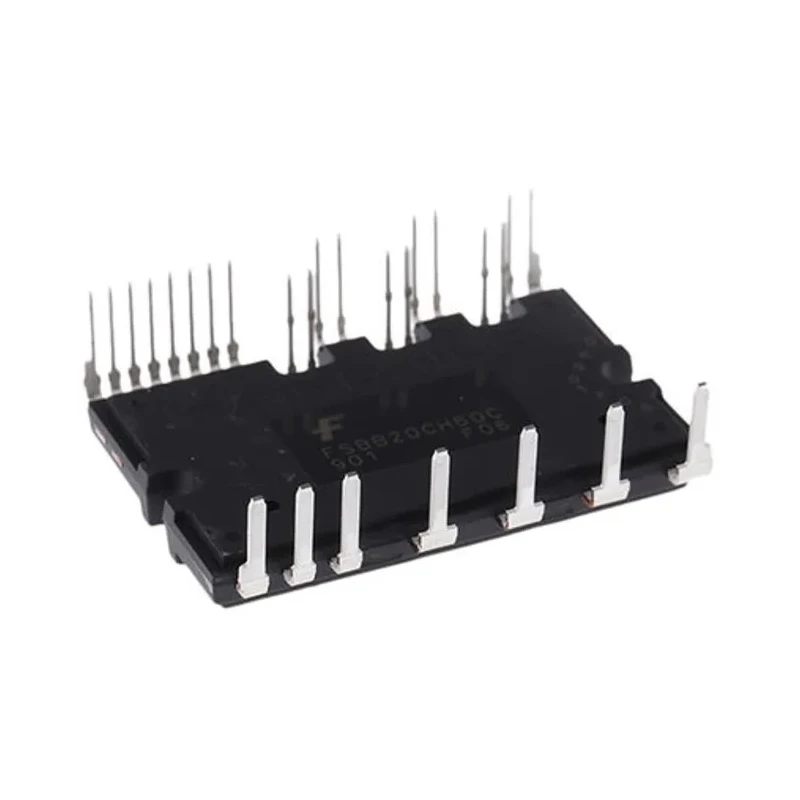

onsemi Brushless DC Motor, AC Motor Driver IC 1.2 kV 40 A 27-Pin Through Hole SPM3 FSBB20CH120D

Name: onsemi Brushless DC Motor, AC Motor Driver IC 1.2 kV 40 A 27-Pin Through Hole SPM3 FSBB20CH120D
Brand: onsemi
SKU: 213510
Price: 34.18 USD
Availability: InStock



Category Motor Driver IC Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	5.7mm
Length	44.2mm
Model	FSBB20CH120D
Width	27mm
Motor Type	Brushless DC Motor, AC
Mount Type	Through Hole
Series	Motion SPM 3
Configuration	Array 6
Output Current	20A
Maximum Operating Temperature	150°C
Package Type	SPM3
Minimum Operating Temperature	-40°C
Pin Count	27
Maximum Collector Emitter Voltage Vceo	1.2kV
Maximum Supply Voltage	800V
Minimum Supply Voltage	300V
Supply Current	10mA
Maximum IGBT Collector Current	40A

Key Features

Operates with a maximum collector emitter voltage of 1.2 kV.
Supports maximum IGBT collector current up to 40 A for robust current handling.
Features 27 pins with a Through Hole mount type for ease of PCB integration.
Includes a supply voltage range from 300 V to 800 V suitable for various motor control systems.
Designed to operate reliably over a temperature range from -40°C to 150°C.
Compact package type SPM3 measuring 44.2 mm in length and 27 mm in width.
Low supply current of 10 mA reduces power consumption in motor applications.
Ideal for driving AC Induction, Brushless DC (BLDC), and Permanent Magnet Synchronous Motors (PMSM).

Product Description

onsemi FSBB20CH120D Brushless DC Motor, AC Motor Driver IC delivers high efficiency and optimized performance for industrial inverter motor applications. It is part of the Motion SPM 3 Series and provides advanced smart power modules integrating gate drive optimization built to minimize electromagnetic interference and losses.

The IC supports a maximum IGBT collector current of 40 A and withstands collector emitter voltages up to 1.2 kV. Featuring a 27-pin, through hole mount configuration with a compact SPM3 package, it combines functionality and integration to simplify PCB designs.

This motor driver IC accepts supply voltages between 300 V and 800 V, making it versatile for various AC induction motors, brushless DC motors, and permanent magnet synchronous motors (PMSM). It operates efficiently with a low supply current of 10 mA, enhancing overall system efficiency.

Designed for demanding industrial environments, it can operate reliably across a wide temperature range from -40°C to 150°C. The module integrates multiple protection features, including under-voltage lockouts and thermal monitoring, ensuring operational safety and durability.

Operates at a maximum collector emitter voltage of 1.2 kV. Handles collector current up to 40 A for powerful motor control. 27-pin Through Hole package with compact SPM3 form factor. Supply voltage range from 300 V to 800 V tailored for inverter motor drives.

Wide operating temperature range of -40°C to 150°C. Low supply current consumption at 10 mA. Advanced protection features built in for enhanced safety. Suitable for AC Induction, BLDC, and PMSM motor types. Part of the reliable Motion SPM 3 Series by onsemi.

This motor driver IC is ideal for industrial, manufacturing, and HVAC applications requiring efficient and reliable motor control solutions. The compact design and integrated protections optimize performance while maintaining ease of installation and maintenance.

Explore more advanced power management and Motor Driver ICs in the onsemi product range at EnvMart for your industrial and electronics design needs.
