| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.7mm |
| Length | 1.3mm |
| Model | BAT30KFILM |
| Width | 0.9mm |
| Mount Type | Surface |
| Series | BAT30 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 580mV |

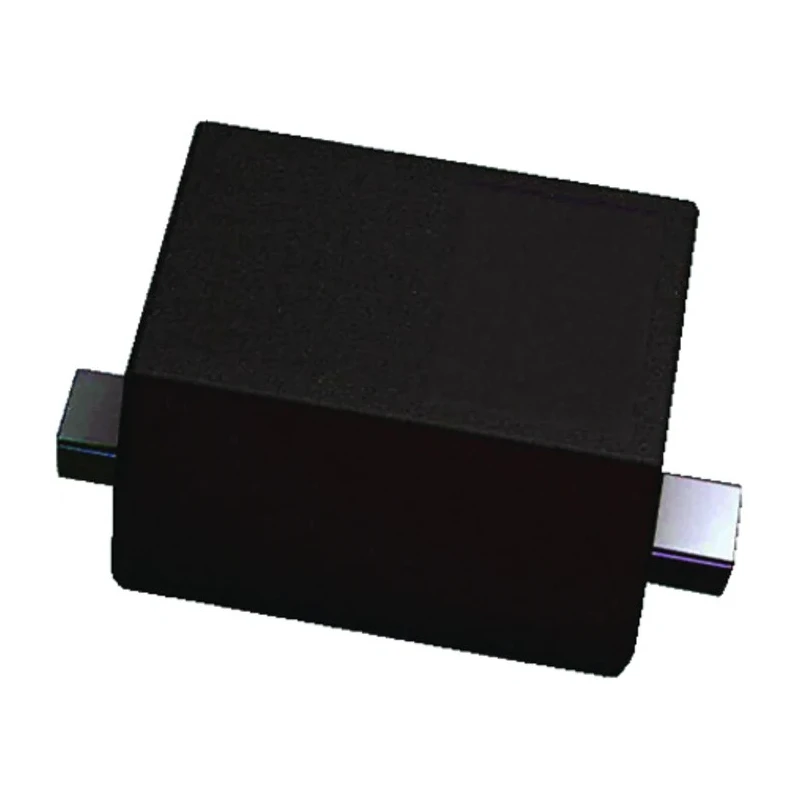

STMicroelectronics BAT30KFILM is a high-performance Schottky barrier diode designed for surface mount applications in electronic circuits.
This model supports a maximum continuous forward current of 300 mA and a peak reverse repetitive voltage of 30 V, making it suitable for low voltage rectification and protection duties.
Its compact SOD-523 package with dimensions 1.3 mm length, 0.9 mm width, and 0.7 mm height enables integration into densely packed PCBs, ideal for modern electronic devices. The forward voltage drop of 580 mV improves energy efficiency by reducing conduction losses, beneficial in power-sensitive applications.
The diode can withstand peak non-repetitive forward surge currents of 1 A, enhancing robustness under transient conditions.
With a low peak reverse current of 50 μA and a maximum operating temperature of 150°C, this diode guarantees both efficiency and reliability across various industrial, consumer electronics, and communication equipment applications.
As a single Schottky diode, it is widely used in power supply modules, switching regulators, and automotive circuits, where fast switching and low forward voltage drop are critical.
The diode features a compact 2-pin SOD-523 package. Maximum forward voltage is 580 mV, ensuring efficient conduction. Designed to operate in temperatures up to 150°C. Peak reverse current is low at 50 μA, enhancing reliability.
Peak surge current tolerance of 1 A for transient conditions. Single diode configuration optimized for rectification and switching applications. Ideal for low voltage, high frequency switching power supplies and freewheeling diodes.
Small form factor supports high density circuit designs. Manufactured in China with high quality control standards.
This diode is a preferred choice for engineers seeking a reliable, efficient rectifier solution in a minimal footprint. Explore more semiconductor and electronic components in the Semiconductor category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
