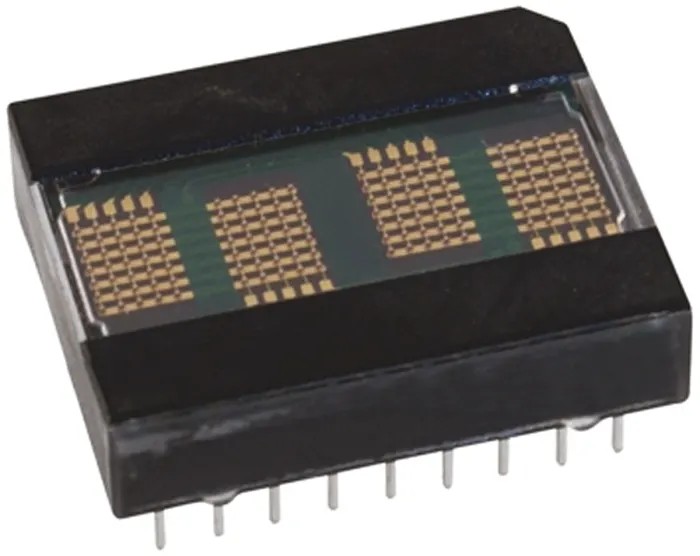

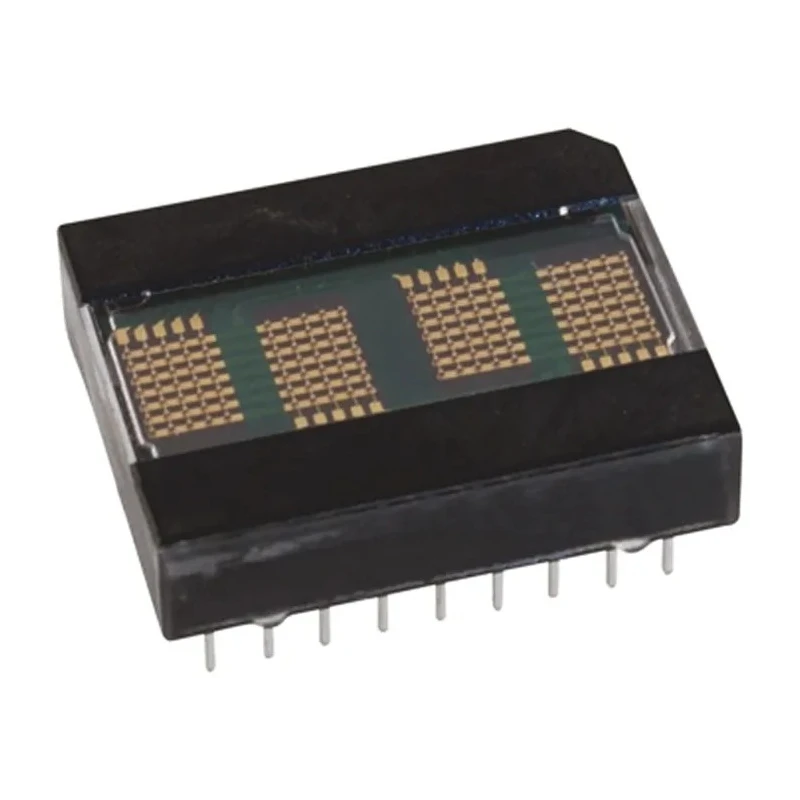

Broadcom 4 Dot Matrix LED Display Red 3.5mcd 5.1 mm HDLO-2416
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Dot Matrix |
| Brand | Broadcom |
| Model | HDLO-2416 |
| Mount Type | Through Hole |
| Series | HDLx-2416 |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Viewing angle | 50° typical |
| Minimum Operating Temperature | -40°C |
| Interfaces | languages |
| Number Of Segments | 35 |
| External Width | 25.2mm |
| External Depth | 20.1mm |
| External Height | 6.6mm |
| Luminous Intensity | 3.5mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 626nm |
| Colour of Face | Black |
| Number of Characters | 4 |
| Character Width | 3.4mm |
Key Features
- Features a 4-digit alphanumeric 5x7 dot matrix display.
- Red LED color with a dominant wavelength of 626nm.
- Character width is 3.4mm and height is 5.1mm for clear readability.
- Through-hole mount type suitable for standard DIL packages.
- Operating temperature range from -40°C to 85°C.
- Luminous intensity is 3.5mcd ensuring bright display output.
- Viewing angle typical of 50 degrees provides wide visibility.
- Includes built-in RAM, ASCII decoder, and LED drive circuitry.
Product Description
Broadcom HDLO-2416 is a 4 digit alphanumeric 5x7 dot matrix LED display designed for industrial and electronic applications. It offers a red LED color with a luminous intensity of 3.5mcd and a character height of 5.1mm for clear and bright display output.
This LED display is built with integrated RAM and ASCII decoder along with LED drive circuitry, enabling seamless interface with microprocessor bus systems. It supports 128 special ASCII characters encompassing English, German, Italian, Swedish, Danish, and Norwegian languages, making it versatile for multilingual industrial use.
The device uses a through-hole mount type in a standard dual in-line package (DIL) configuration, with external dimensions measuring 25.2mm width, 20.1mm depth, and 6.6mm height. It is designed to operate reliably within the temperature range of -40°C to 85°C and is RoHS compliant, ensuring environmentally safe manufacturing.
With a typical viewing angle of 50 degrees, this display ensures excellent visibility in various lighting conditions. Its black face color provides high contrast for the red LED characters, improving legibility in electronic panels, instrumentation, and control systems.
Features a 4-digit 5x7 dot matrix for alphanumeric display. Red LEDs provide a dominant wavelength of 626nm. Compact dimensions and through-hole mounting make it ideal for embedded applications. Broad operating temperature range suitable for harsh environments.
Integrated ASCII decoder and RAM facilitate ease of use with microprocessor interfaces.
This LED display is well-suited for industrial automation, electronic equipment, instrumentation, and control panel applications where reliable and clear alphanumeric display is essential.
Explore more products in the 'LED Display' category for additional display solutions and compatible components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the HDLO-2416 display is 3.5 mcd, ensuring a bright display output.
The character height of this model is 5.1 mm, which contributes to clear readability.
This display operates reliably within a temperature range of -40°C to 85°C.
The HDLO-2416 uses a through-hole mount type, suitable for standard dual in-line package (DIL) configurations.
The typical viewing angle of this model is 50 degrees, providing wide visibility in various lighting conditions.
This display can show 4 characters, making it suitable for alphanumeric output.
The external dimensions of this display are 25.2 mm in width, 20.1 mm in depth, and 6.6 mm in height.
The HDLO-2416 features red LEDs with a dominant wavelength of 626 nm.
Yes, this model includes a built-in ASCII decoder, facilitating ease of use with microprocessor interfaces.
The display is RoHS compliant, ensuring environmentally safe manufacturing practices.
This display supports 128 special ASCII characters, encompassing multiple languages including English, German, Italian, Swedish, Danish, and Norwegian.
The HDLO-2416 display consists of 35 segments, allowing for versatile alphanumeric representation.
