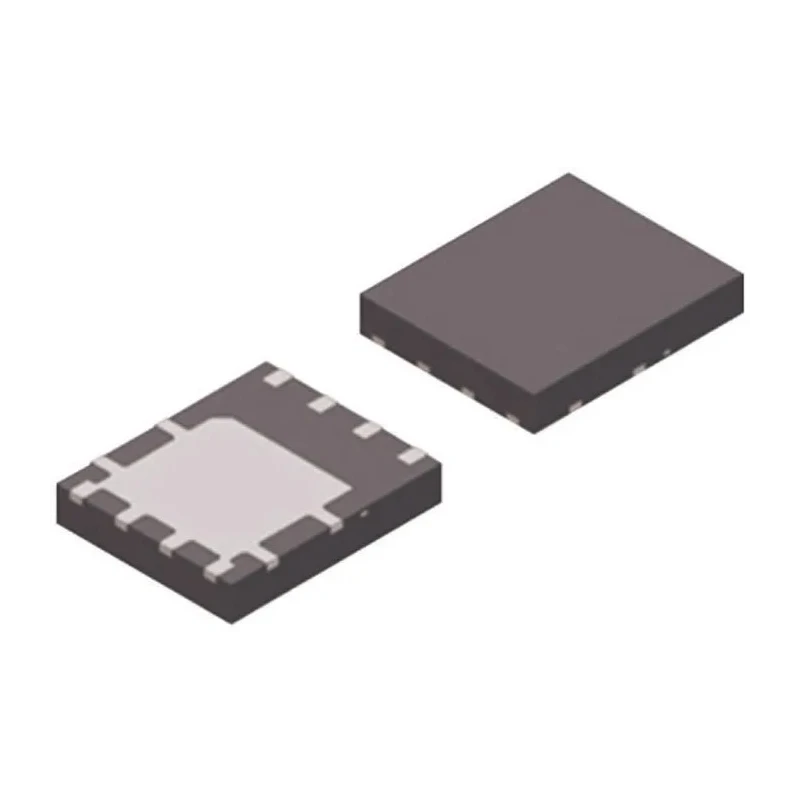

STMicroelectronics 170 V 8 A Surface Mount Schottky Diode PowerFLAT 8-Pin STPS8170DEE-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.05mm |
| Length | 3.4mm |
| Model | STPS8170DEE-TR |
| Width | 3.4mm |
| Mount Type | Surface |
| Series | STPS8170DEE |
| Maximum Operating Temperature | 175°C |
| Package Type | PowerFLAT |
| Minimum Operating Temperature | -65°C |
| Pin Count | 8 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 170V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 900mV |
| Semelab 600V 5A, Schottky Diode, 2-Pin DLCC3 SML05SC06D3ABrand | Semelab |
| onsemi 100V 5A, Schottky Diode, 8-Pin DFN MBR5H100MFST3GBrand | ON Semiconductor |
| STMicroelectronics 30 V 30 A Diode Schottky 8-Pin PowerFLAT STPS30L30DJF-TRBrand | STMicroelectronics |
Key Features
- This diode is configured as a single Schottky rectifier to provide low forward voltage and fast switching.
- It comes in a compact 8-pin PowerFLAT surface mount package.
- The device supports a maximum continuous forward current of 8 A.
- Peak reverse repetitive voltage is rated at 170 V for robust operation.
- The maximum forward voltage drop is 900 mV, ensuring high efficiency.
- The diode can withstand peak non-repetitive forward surge currents up to 100 A.
- Operating temperature ranges from -65°C to 175°C, suitable for harsh environments.
- Pin count is 8 for enhanced current handling and thermal performance.
Product Description
STMicroelectronics STPS8170DEE-TR is a high-performance Schottky barrier diode designed for power rectification applications in industrial, automotive, and electronic circuits. It features a low forward voltage drop of 900 mV and can continuously conduct forward currents up to 8 A, making it ideal for efficient power supply designs requiring minimal energy loss.
Housed in a surface mount 8-pin PowerFLAT package, the STPS8170DEE-TR is engineered to deliver superior thermal management and compact installation. The diode configuration is single, optimized for fast switching and low reverse leakage currents, rated at a peak reverse repetitive voltage of 170 V and a peak reverse current of 15 mA. It can sustain peak non-repetitive forward surge currents as high as 100 A, enhancing its robustness in transient conditions.
The device operates reliably over a broad temperature range from -65°C to 175°C, meeting demanding environmental and automotive specifications without automotive standard certification. Its small footprint with dimensions of 3.4 mm in length and width and 1.05 mm in height facilitates compact PCB design and integration in space-constrained electronic assemblies.
Applications for the STPS8170DEE-TR include power supply rectification, voltage clamping, reverse polarity protection, and energy conversion in industrial machinery, automotive electronics, and consumer devices. It supports efficient current handling and thermal dissipation, contributing to system reliability and energy savings.
This diode provides low forward voltage drop and high current capability. Suitable for industrial and automotive power electronics applications. Compact surface mount 8-pin PowerFLAT package optimizes PCB space usage. Wide operating temperature range supports demanding conditions.
High surge current tolerance enhances device durability. Designed for robust and efficient rectification in power circuits. Enables reliable operation in transient and high-stress environments. Compact dimensions enable versatile electronic system designs.
Facilitates improved energy efficiency and thermal management. Explore a wide range of semiconductor diodes suitable for power electronics at EnvMart, including Schottky diodes from leading manufacturers like STMicroelectronics.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current is 8 A.
The peak reverse repetitive voltage is rated at 170 V.
The maximum forward voltage drop is 900 mV.
The dimensions of the package are 3.4 mm in length, 3.4 mm in width, and 1.05 mm in height.
The operating temperature range is from -65°C to 175°C.
It can withstand peak non-repetitive forward surge currents up to 100 A.
This model is configured as a single Schottky rectifier.
The maximum peak reverse current is rated at 15 mA.
It is suitable for power supply rectification, voltage clamping, reverse polarity protection, and energy conversion in various electronic applications.
This diode uses surface mount technology.
The brand of this diode is STMicroelectronics.
The country of origin for this diode is India.
