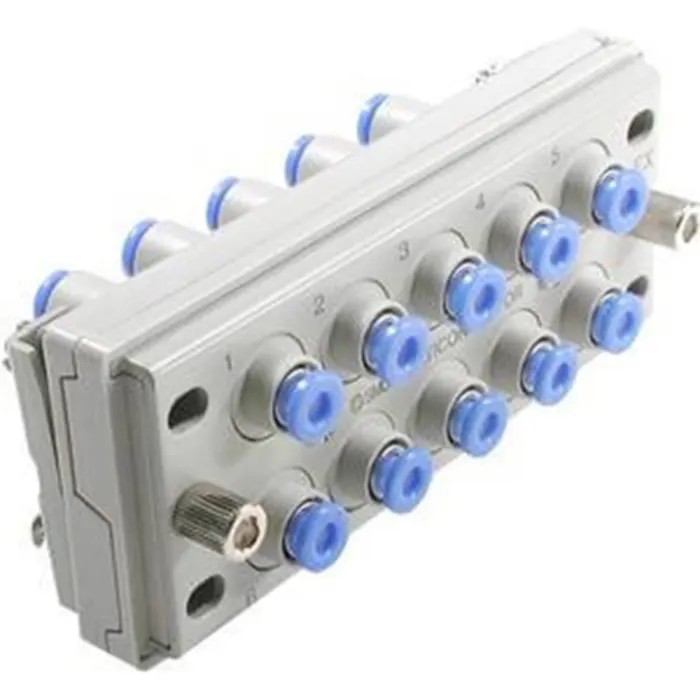

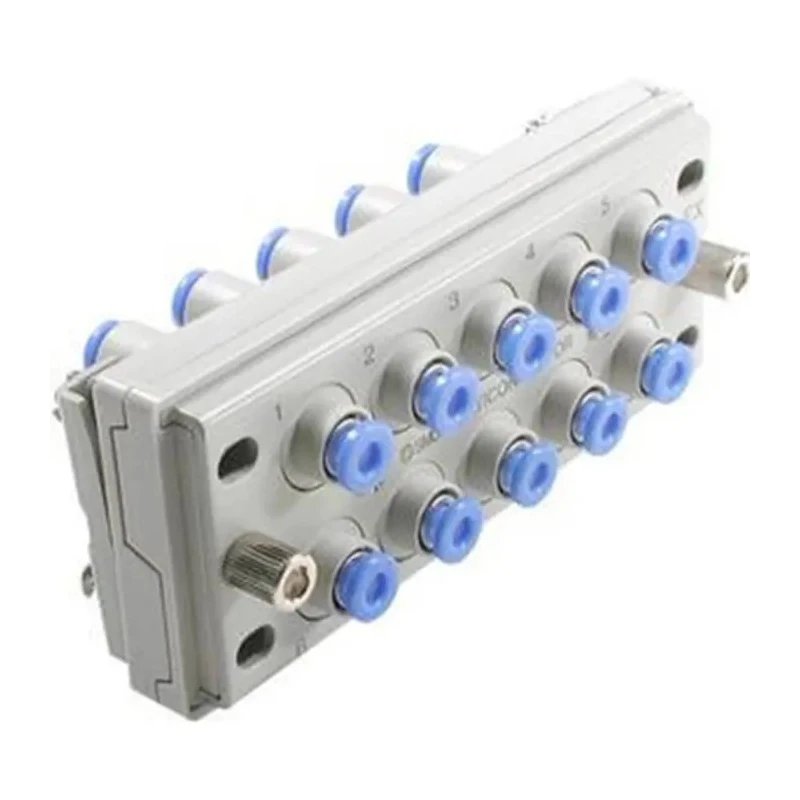

SMC Polyurethane Bulkhead Connector Pneumatic One-Touch Fitting Panel Mount KDM10-08

The SMC KDM10-08 polyurethane bulkhead connector is a high-performance pneumatic fitting designed for panel mounting in industrial and manufacturing environments. This one-touch fitting provides a secure and efficient push-in connection for 6 mm tubing on Connection A, facilitating streamlined assembly and maintenance.

Crafted from durable polyurethane material, the connector sustains operation at temperatures up to 60°C, making it suitable for varied industrial fluid power applications including pneumatic control systems and automated machinery.

The KDM series bulkhead connector significantly reduces mounting space requirements, enhancing compactness by eliminating the need for multiple union joints typically used for panel and partition connections. Its design allows the creation of multi-connectors accommodating mixed tube sizes of 10 mm and 20 mm, supporting flexible pneumatic layouts.

This fitting is engineered to operate reliably under positive pressure as well as vacuum conditions, ensuring broad versatility across pneumatic circuits. The product is RoHS compliant, confirming adherence to electrical and mechanical safety and environmental standards.

Applications include industrial automation, pneumatic tooling in manufacturing plants, HVAC system controls, and any compressed air or vacuum line requiring efficient panel interface fittings. The one-touch connection/disconnection feature aids in rapid installation and servicing, minimizing machine downtime and labor effort.

The bulkhead connector is designed for panel mounting applications. It uses polyurethane material resistant to maximum operating temperatures up to 60°C. The one-touch fitting enables easy connection and disconnection of tubes.

It supports push-in tubing connection size of 6 mm for Connection A. Compatible with tubing sizes 10 mm and 20 mm for multi-connector applications. Designed for positive pressure and vacuum use cases. The series KDM provides significant space savings compared to multiple union joints.

Complies with RoHS standards ensuring environmental safety. Explore additional SMC Pneumatic Fittings and connectors available at EnvMart to find compatible components for your pneumatic system needs.
