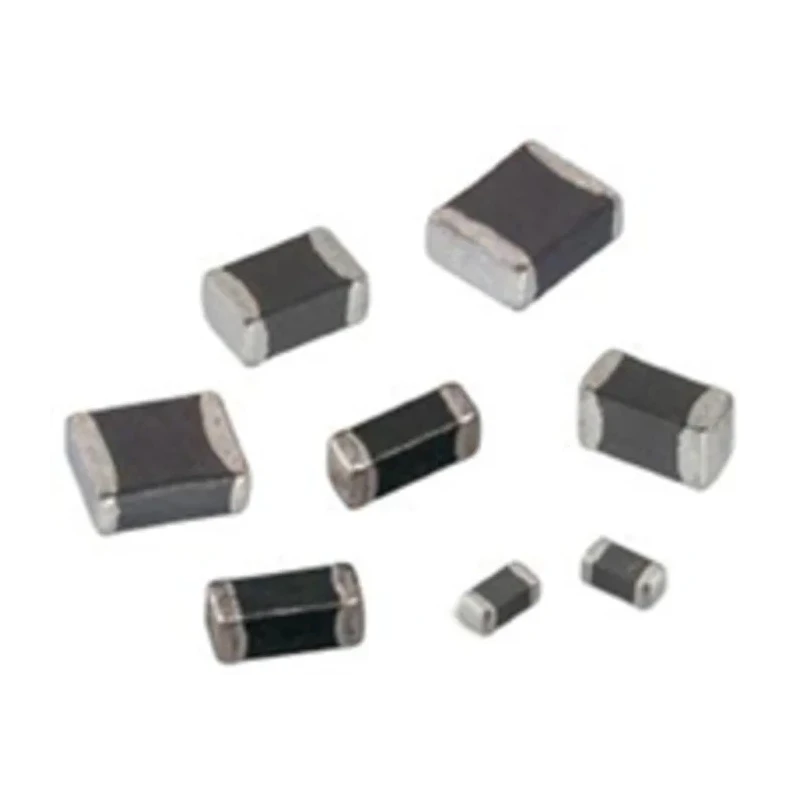

Wurth Elektronik 680 nH 0603 Unshielded Multilayer Surface Mount Inductor with Ferrite Core WE-PMI 74479762168
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.5mm |
| Operating Temperature Range | -40°C to +125°C |
| Length | 1.6mm |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | WE-PMI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 680nH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 1A |
| Pin Count | 2 |
| Maximum DC Resistance | 220mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 150MHz |
| Minimum Quality Factor | 9 |
| Inductor Construction | Multilayer |
Key Features
- Multilayer construction tailored for surface mount PCB assembly.
- Maximum DC current rating of 1 Ampere suitable for high current designs.
- Operating temperature range from -40°C to +125°C ensuring reliability in harsh environments.
- Low DC resistance of 220 milliohms to reduce power losses.
- Ferrite core material optimizes inductance and frequency response.
- Unshielded design for applications where magnetic shielding is not required.
- Package size 0603 with dimensions 1.6 mm length, 0.8 mm depth, and 0.5 mm height.
- Compatible with tape and reel packaging for automated manufacturing processes.
Product Description
Wurth Elektronik 74479762168 is a 680 nH multilayer surface mount inductor from the WE-PMI series designed for compact electronic power applications. This component features an unshielded construction with a ferrite core, optimized for high efficiency and low losses. It has a ±20% inductance tolerance and supports a maximum DC current rating of 1 Ampere.
Its compact 0603 package with dimensions of 1.6 mm length, 0.8 mm depth, and 0.5 mm height makes it suitable for high density PCB layouts in consumer electronics, industrial equipment, and telecommunications devices. The operating temperature range from -40°C to +125°C ensures stable performance in a wide variety of operating conditions.
The inductor exhibits a low DC resistance of 220 milliohms which helps in minimizing power dissipation. Its multilayer construction and ferrite core provide effective inductance with a maximum self-resonant frequency of 150 MHz and a minimum quality factor of 9. This product is compliant with RoHS and REACH directives, supporting environmentally responsible manufacturing.
Common applications include DC/DC converters especially at high switching frequencies above 1 MHz, portable devices like PDAs and digital cameras, and other circuits requiring reliable inductors for power management and filtering. The product is supplied in tape and reel packaging, ideal for automated pick-and-place assembly lines.
Multilayer surface mount with ferrite core provides reliable inductance. Unshielded design reduces size and weight for compact applications. High current handling capability up to 1 Ampere for power circuits. Wide operating temperature range from -40°C to +125°C for diverse environments.
Low DC resistance minimizes energy loss and heat generation. Compatible with automated assembly via tape and reel packaging. Meets environmental safety standards including RoHS and REACH. Typical applications include DC/DC converters and portable electronics.
Compact 0603 package facilitates high-density PCB layouts. Explore further Wurth Elektronik inductors and surface mount components for your electronics projects on EnvMart.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680 nH with a tolerance of ±20%.
It supports a maximum DC current rating of 1 Ampere, suitable for high current designs.
The dimensions of the 0603 package are 1.6 mm in length, 0.8 mm in depth, and 0.5 mm in height.
The operating temperature range is from -40°C to +125°C, ensuring reliable performance in various environments.
It has a low DC resistance of 220 milliohms, which helps reduce power losses.
The maximum self-resonant frequency of this inductor is 150 MHz.
This model features a ferrite core material, which optimizes inductance and frequency response.
Yes, it is compliant with RoHS and REACH directives, supporting environmentally responsible manufacturing.
It is supplied in tape and reel packaging, making it compatible with automated manufacturing processes.
Common applications include DC/DC converters, portable devices, and circuits requiring reliable inductors for power management and filtering.
The minimum quality factor is 9, indicating its efficiency in inductive applications.
The termination style is surface mount, suitable for compact PCB layouts.
