| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 1.35mm |
| Length | 2.85mm |
| Model | MMSZ5235B-7-F |
| Mount Type | Surface |
| Series | MMSZ5235B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 20mA |
| Maximum Reverse Leakage Current | 3μA |
| Nominal Zener Voltage Vz | 6.8V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 5Ω |

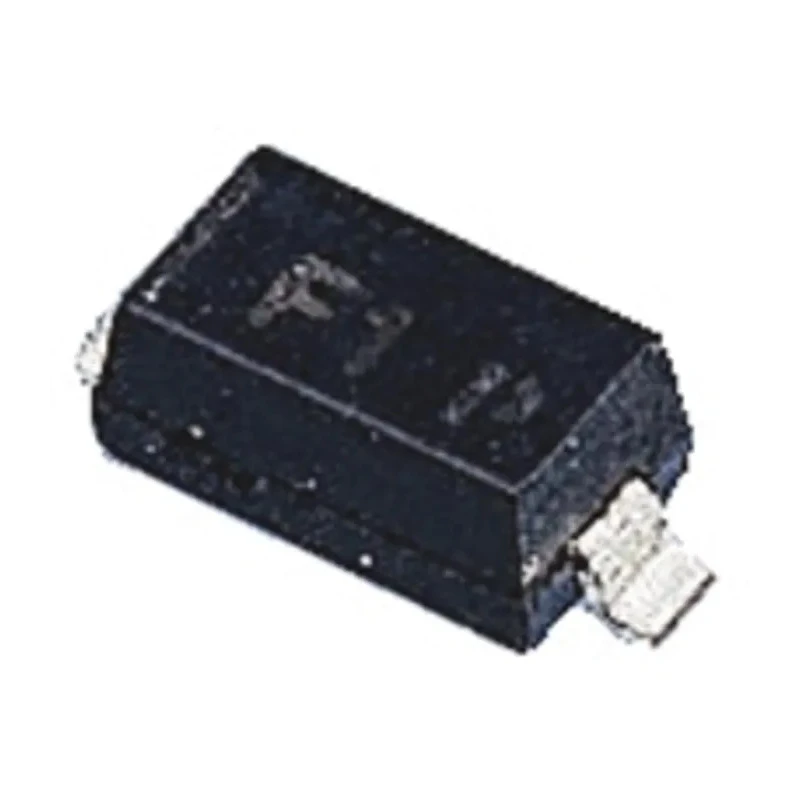

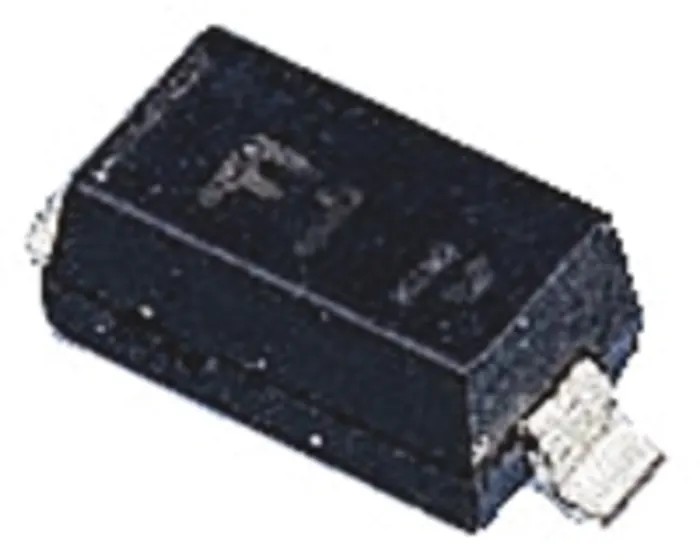

The DiodesZetex MMSZ5235B-7-F is a high-quality general purpose Zener diode designed for stable voltage regulation applications in electronic circuits. Featuring a nominal Zener voltage of 6.8 V and maximum power dissipation of 500 mW, this device is ideal for protecting sensitive components against voltage spikes and maintaining voltage reference in power supplies.
Constructed for surface mounting, the diode uses a 2-pin SOD-123 package, which ensures ease of integration on printed circuit boards especially in compact or automated assembly processes.
The diode delivers reliable performance over a broad temperature range of -65°C to 150°C, making it suitable for industrial, automotive, and consumer electronic applications. With a Zener voltage tolerance of ±5% and maximum impedance of 5 Ω, it provides accurate voltage regulation and minimal voltage variation.
This device is tested at 20 mA current and supports a very low reverse leakage current of 3 μA, optimizing efficiency and low power loss in circuits. This Zener diode meets stringent RoHS environmental standards and complies with the automotive quality standard AEC-Q101.
Its compact physical dimensions of 1.35 mm height and 2.85 mm length make it suitable for space-constrained designs.
The MMSZ5235B series is widely used in power supply regulation, voltage clamping, waveform clipping, and reference voltage generation in industrial, automotive, and general electronic applications.
The product is supplied in reel packaging to support high-volume manufacturing and efficient insertion into automated assembly lines.
Designed and manufactured to meet demanding electronic component quality and reliability criteria, this Zener diode by DiodesZetex represents a dependable choice for voltage stabilization tasks in various electronics sectors.
