Nexperia Dual Low Saturation Voltage NPN + PNP Bipolar Transistor 60 V 1 A 6-Pin TSOP PBSS4160DPN,115

Nexperia PBSS4160DPN,115 Dual Low Saturation Voltage Bipolar Transistor combines both NPN and PNP transistor types in a compact 6-pin TSOP surface-mount package. It supports a maximum collector current of 1 ampere and can handle collector-emitter voltages up to 60 volts, making it suitable for various switching and digital circuit applications.

Designed with low saturation voltages, these transistors reduce power losses and heat generation, enhancing overall circuit efficiency. The device operates reliably in a wide temperature range from -65°C to 150°C and complies with the automotive AEC-Q101 standard, ensuring robustness in demanding environments.

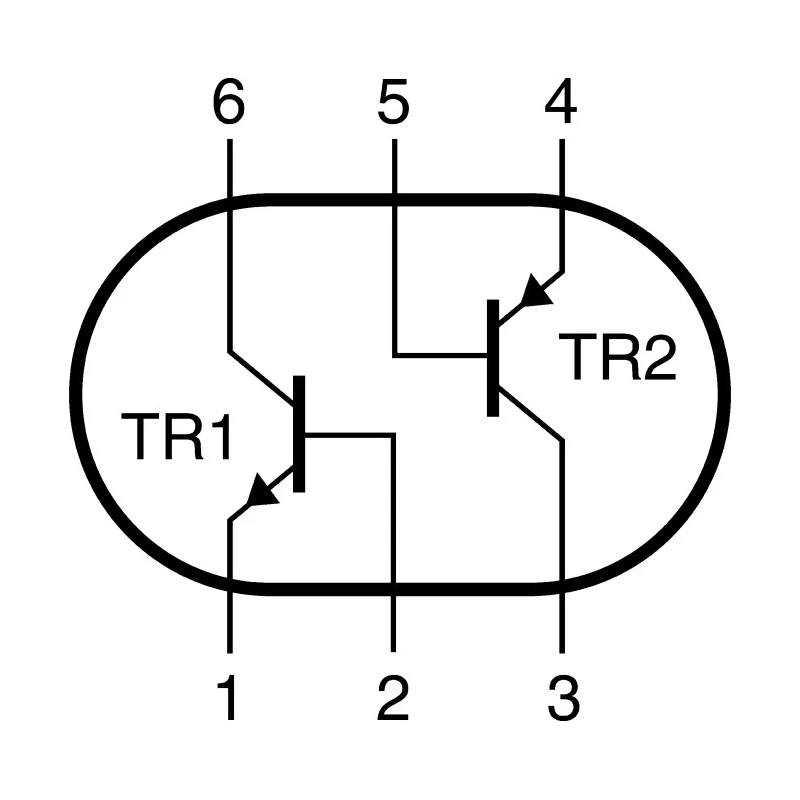

The transistor configuration is isolated and the compact dimensions (length 2.9 mm, width 1.5 mm, height 1 mm) allow for high-density PCB designs. This device achieves a high transition frequency of 220 MHz, suitable for high-speed switching circuits.

The maximum power dissipation rating is 700 milliwatts, providing stable operation within its limits. The transistor is packaged in a 6-pin Thin Small Outline Package (TSOP), optimized for surface mounting on printed circuit boards for industrial, automotive, and consumer electronics applications.

Manufactured in Malaysia, the PBSS4160DPN,115 model from Nexperia stands as a reliable component choice for low voltage, low power switching applications requiring both NPN and PNP transistors in a dual package.

Features low collector-emitter saturation voltage for high efficiency. Contains both NPN and PNP transistors in one device. Maximum DC collector current of 1 ampere. Operates within temperature range from -65°C to 150°C.

Maximum power dissipation of 700 milliwatts. High transition frequency of 220 MHz suitable for switching applications. Isolated transistor configuration with surface mount TSOP package. Compliance with automotive standard AEC-Q101 ensures reliability.

Compact dimensions: 2.9 mm length, 1.5 mm width, and 1 mm height. Manufactured in Malaysia for quality assurance. Explore more Bipolar Transistors and related semiconductor products at EnvMart for your electronic design and manufacturing needs.
