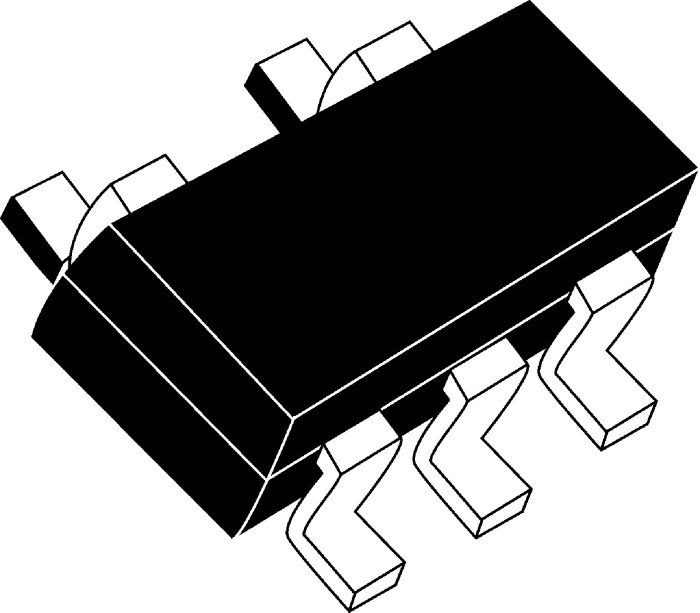

DiodesZetex Schmitt Trigger Input Inverter, 1 Element, 5-Pin SOT-25 74LVC1G14W5-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex Schmitt Trigger Input Inverter, 1 Element, 5-Pin SOT-25 74LVC1G14W5-7

Name: DiodesZetex Schmitt Trigger Input Inverter, 1 Element, 5-Pin SOT-25 74LVC1G14W5-7
Brand: DiodesZetex
SKU: 133541
Price: 0.08 USD
Availability: InStock



Category Logic ICs Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1.3mm
Length	3.1mm
Model	74LVC1G14W5-7
Width	1.7mm
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output LVCMOS
Output type	Push Pull
Series	74LVC1G14
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SOT-25
Minimum Operating Temperature	-40°C
Operating Voltage	1.65 to 5.5 V
Pin Count	5
Number of Elements per Chip	1
Maximum Supply Voltage	5.5V
Logic Family	LVC
Logic Function	Inverter
Minimum Supply Voltage	1.65V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	6.5ns
Maximum Low Level Output Current	32mA

Key Features

This device integrates a single inverter element with Schmitt trigger input for noise immunity and signal conditioning.
Operating voltage ranges from 1.65 V to 5.5 V, compatible with LVTTL/TTL inputs and LVCMOS outputs.
Maximum propagation delay time is 6.5 ns, supporting high-speed switching applications.
Features push-pull output with output currents of +/- 32 mA for robust drive capability.
Designed for surface-mount applications with a small SOT-25 package and 5 pins for compact PCB layouts.
Operating temperature range is from -40°C to 125°C for reliable operation in diverse environments.

Product Description

DiodesZetex 74LVC1G14W5-7 is a single gate inverter IC with Schmitt trigger input function, tailored for low-voltage CMOS logic applications. It offers a reliable operating voltage range from 1.65 V to 5.5 V, making it suitable for a variety of modern electronic circuit designs that require noise-resistant input signal conditioning.

The device features a compact 5-pin SOT-25 surface-mount package, which is ideal for space-constrained assemblies in industrial, consumer electronics, and embedded system applications. Its push-pull output stage delivers balanced high and low output currents of 32 mA, enabling effective driving of subsequent logic stages.

Designed specifically for demanding environmental conditions, this inverter operates across a wide temperature range of -40°C to 125°C. Its typical propagation delay of 6.5 ns allows fast switching, enhancing timing performance in digital circuits.

The 74LVC1G14 series, to which this model belongs, is known for low power consumption and compatibility with standard input/output logic levels, including LVTTL/TTL inputs and LVCMOS outputs. This makes it adaptable to numerous industrial, communication, and data processing systems requiring reliable Schmitt trigger inputs for signal stabilization.

This inverter chip integrates a Schmitt trigger input for superior signal noise immunity. It supports a broad supply voltage, accommodating various system designs. The device is packaged in a small form factor for efficient PCB utilization.

High output drive capability ensures reliable interfacing with other logic components. Wide operating temperature range suits harsh industrial environments. Low propagation delay enhances performance in rapid switching applications.

Surface mount technology ensures automated production compatibility.

Choose the DiodesZetex 74LVC1G14W5-7 inverter IC for projects needing compact, high-performance digital logic solutions. Explore EnvMart for more semiconductor components and logic IC options to complete your electronic design.

Explore more products in our Logic ICs category.
