| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.45mm |
| Length | 3.85mm |
| Model | BZT52C7V5-7-F |
| Mount Type | Surface |
| Series | BZT52C7V5 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 7.5V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 15Ω |
| Typical Voltage Temperature Coefficient | 2.5mV/°C |
| Surface Mount case | SOD-123 |

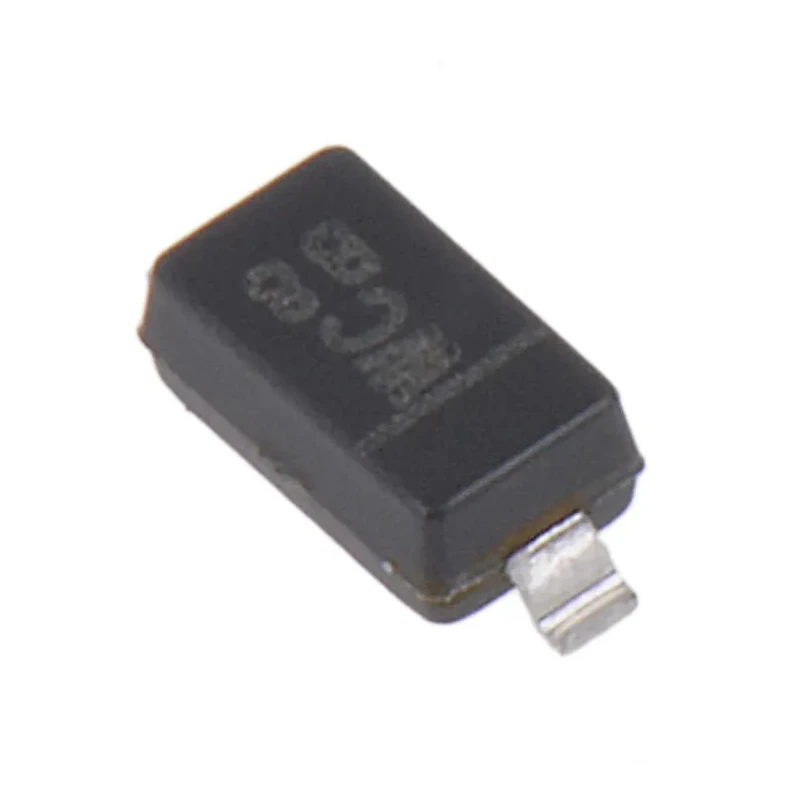

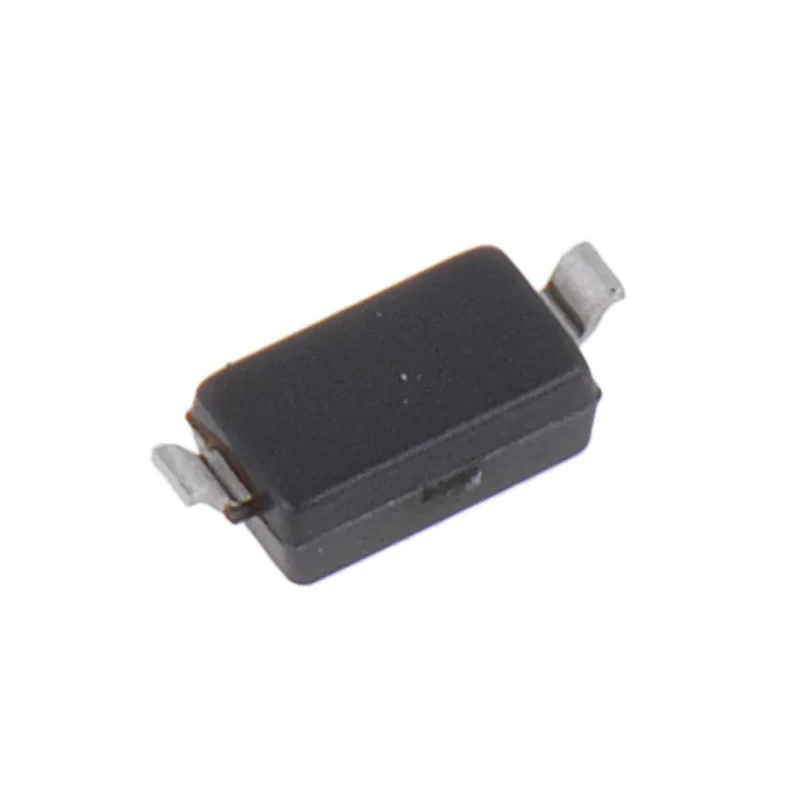

DiodesZetex BZT52C7V5-7-F 7.5 V Zener diode is a single-element, general purpose voltage regulation component suitable for surface mount applications. It comes in the compact SOD-123 package with a 2-pin configuration optimized for space-constrained electronic circuits.
With a nominal Zener voltage of 7.5 V and a tolerance of ±6 percent, this diode is designed to maintain a stable voltage reference in power supply and protection circuits. It has a maximum power dissipation rating of 500 milliwatts, enabling it to handle moderate power loads efficiently within its operating temperature range of -65°C to 150°C.
The device features a typical voltage temperature coefficient of 2.5 millivolts per degree Celsius, and a maximum Zener impedance of 15 ohms, ensuring reliable performance under varying thermal conditions. Its maximum reverse leakage current is very low at 1 microampere, minimizing leakage losses that could affect circuit operation.
Certified to meet the AEC-Q101 automotive standard, the diode suits demanding automotive and industrial environments. Physical dimensions measure 3.85 mm in length and 1.45 mm in height, facilitating integration into compact printed circuit boards using surface mount technology.
The BZT52 series by Diodes Inc represents a trusted family of Zener Diodes optimized for voltage regulation tasks in commercial, industrial, automotive, and electronic manufacturing sectors.
Single-element general purpose Zener diode for voltage regulation applications. Surface mount SOD-123 package with 2-pin configuration for PCB integration. Rated for 500 milliwatts maximum power dissipation ensures stable operation.
Wide operating temperature range from -65°C to 150°C supports harsh environments. Low maximum reverse leakage current of 1 microampere minimizes losses. Complies with AEC-Q101 automotive standard for quality and reliability.
This product is ideal for industrial electronics, automotive system circuits, laboratory instrumentation, and consumer electronics protection circuits requiring precise voltage clamping in a compact form factor.
