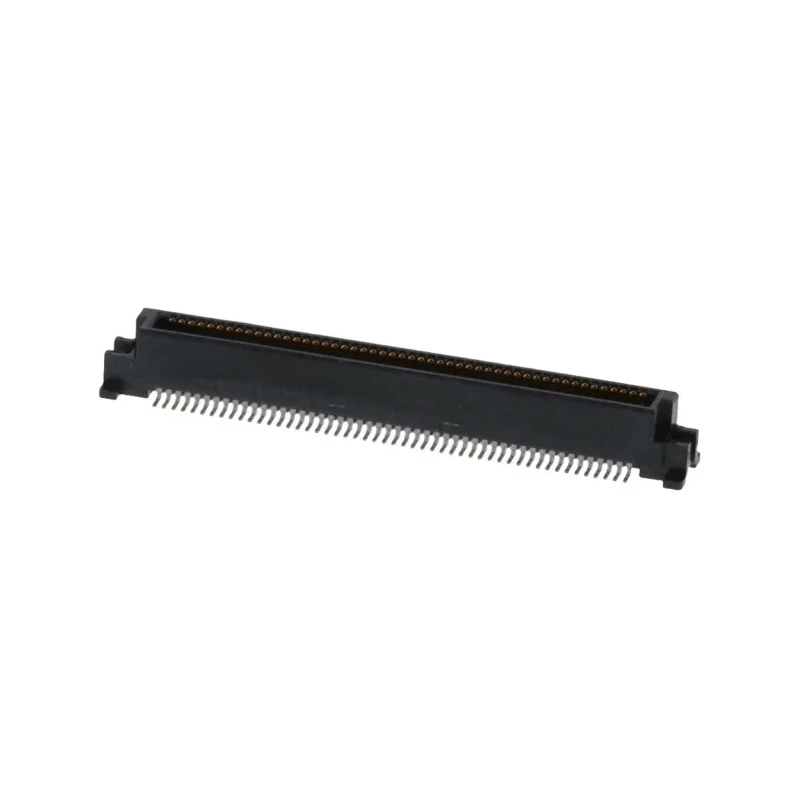

Molex SlimStack Series Straight Surface PCB Header 100 Contact, 0.64 mm Pitch, 2 Row, Shrouded 55091-1074

Free Delivery in India | Lowest Global Shipping Charges

Molex SlimStack Series Straight Surface PCB Header 100 Contact, 0.64 mm Pitch, 2 Row, Shrouded 55091-1074

Name: Molex SlimStack Series Straight Surface PCB Header 100 Contact, 0.64 mm Pitch, 2 Row, Shrouded 55091-1074
Brand: Molex
SKU: 133490
Price: 9.31 USD
Availability: InStock



Category PCB Header Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	Molex
Orientation	Straight
Current	500mA
Mount Type	Surface
Housing Material	High Temperature Thermoplastic
Contact Material	Copper Alloy
Series	SlimStack
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.64mm
Contact Plating	Gold
Number of Contacts	100
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

This PCB header features 100 gold-plated copper alloy contacts arranged in two rows for organized connectivity.
Compact 0.64 mm pitch design improves packing efficiency on circuit boards.
High temperature thermoplastic housing material ensures durability and heat resistance.
Supports a maximum current of 500mA and voltage rating of 100V for low power applications.
Shrouded and polarised design ensures proper mating and increased safety.
Wide operating temperature range from -55°C up to 105°C for reliable function in harsh conditions.
Surface mount type designed for board-to-board connector systems.
Self-extinguishing plastic enhances safety in fire-prone environments.

Product Description

Molex 55091-1074 SlimStack Series Straight Surface PCB Header is a 100-contact, 2-row, shrouded PCB connector with a compact 0.64 mm pitch. It offers a reliable solution for board-to-board and signal connections in electronic devices.

The product features gold-plated copper alloy contacts with excellent conductivity and corrosion resistance, providing effective signal transmission and long service life. The high temperature thermoplastic housing ensures mechanical robustness and thermal stability.

This PCB header operates at a maximum voltage of 100V and current of 500mA, suitable for low-power electronics. Its shrouded and polarised design guarantees proper mating, reducing connection errors and improving system reliability.

The component supports a wide operating temperature range from -55°C to 105°C, making it suitable for use in demanding conditions such as automotive environments and portable devices. The surface mount design allows for easy integration onto printed circuit boards in dense assemblies.

Safety aspects include self-extinguishing materials that reduce fire risks, ideal for applications in security systems and other safety-critical fields. This PCB header has 100 gold-plated copper alloy contacts organized in two rows.

Compact 0.64 mm pitch design maximizes board space efficiency. Made of high temperature thermoplastic housing for durability. Rated for 500mA current and 100V maximum voltage. Shrouded and polarised for secure, correct connector mating.

Wide operating temperature span from -55°C to 105°C. Surface mount type for board-to-board connection systems. Self-extinguishing design enhances fire safety. Commonly applied in security, portable electronics, and automotive industries.

Ideal for industrial, automotive, and electronic manufacturing applications, this Molex SlimStack PCB header provides dependable electrical connectivity in a compact footprint. Explore more PCB Headers and electronic connectors in the Electronics Components category on EnvMart.
