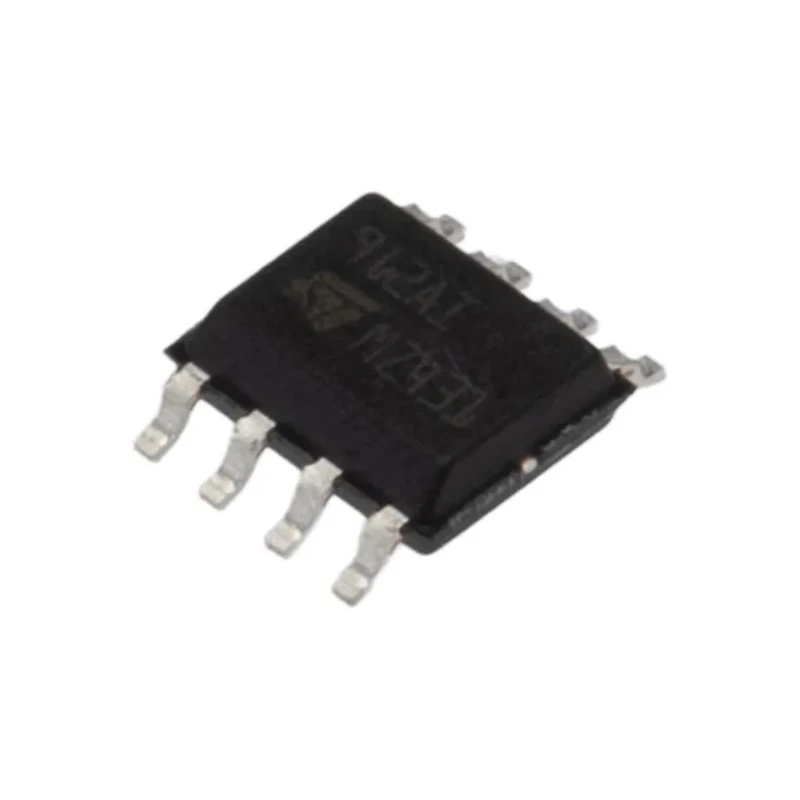

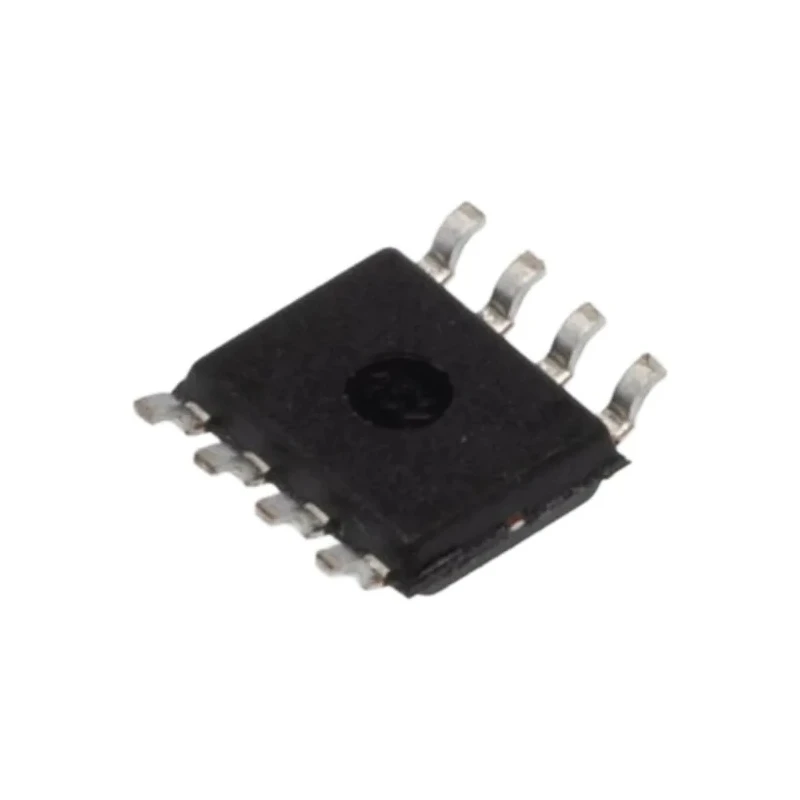

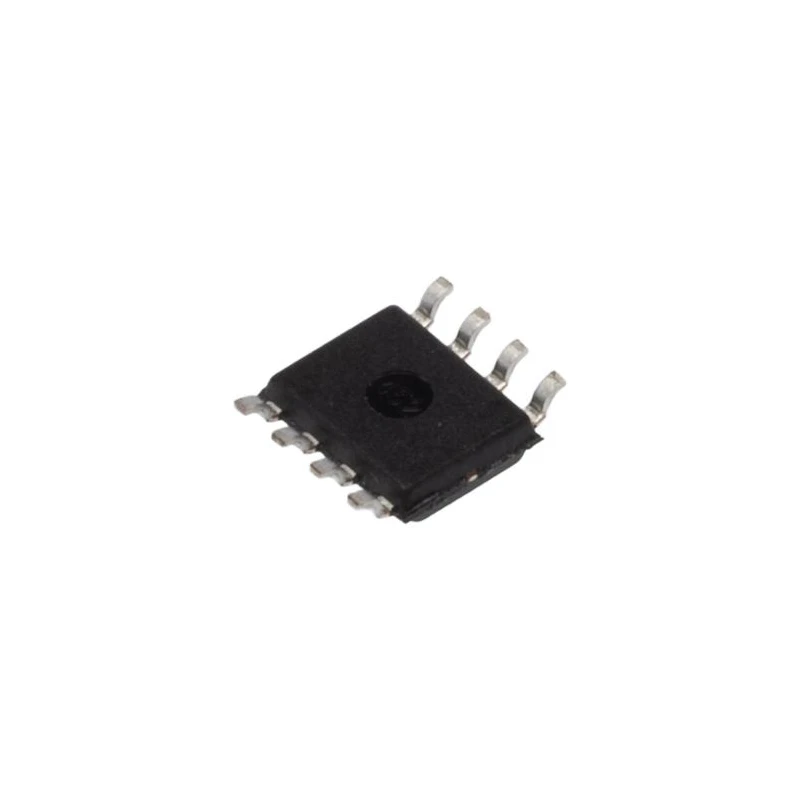

STMicroelectronics Operational Amplifier 1 MHz 16V 8-Pin SOIC Dual Channel TS912AIDT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.25mm |
| Length | 4.9mm |
| Model | TS912AIDT |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | TS912 |
| Output Current | 75mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | Q002, AEC Q100, Q001, ECOPACK, Q003 |
| Pin Count | 8 |
| Automotive Standard | AEC-Q1, AEC-Q3, AEC-Q100, AEC-Q2 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 1 to 300 pA |
| Vos - Input Offset Voltage | 2 to 12 mV |
| Slew Rate | 0.8V/μs |
| Low input offset voltage | 5 mV max. (A grade) |
| Input Offset Current | 1 to 200 pA |
| Low input bias current | 1 pA typical |
| STMicroelectronics, Operational Amplifier, 1 MHz, 8-Pin 16V SOICBrand | STMicroelectronics |
Key Features
- Low power operation with a typical slew rate of 0.8 V/μs.
- Wide supply voltage range from 3 V to 16 V supports flexible applications.
- Low input bias current from 1 to 300 pA enables high-precision amplification.
- Input offset voltage range of 2 to 12 mV ensures low signal distortion.
- High output current capability of 75 mA supports various loads.
- RoHS compliant and meets automotive standards including AEC-Q1 and AEC-Q100.
- Operating temperature range from -40°C to 125°C suitable for harsh environments.
Product Description
STMicroelectronics TS912AIDT is a dual operational amplifier designed to deliver precise signal amplification in electronic circuits. Featuring a gain bandwidth product of 1 MHz and low power consumption, this amplifier is suitable for a wide range of industrial and automotive applications.
The device operates within a supply voltage range of 3 V to 16 V and is housed in a compact 8-Pin SOIC package with dimensions of 4.9 mm length, 3.9 mm width, and 1.25 mm height. It offers low input bias current typically at 1 pA and input offset voltage of maximum 5 mV for A grade units, which ensure minimal signal errors.
Designed to meet rigorous automotive standards such as AEC-Q1, AEC-Q2, AEC-Q3, and AEC-Q100, this operational amplifier maintains reliable performance with an operating temperature range from -40°C up to 125°C. The output current capability of 75 mA allows driving various loads effectively.
The TS912 series includes TS912, TS912A, TS914, and TS914A models offering low power CMOS input amplifiers with rail-to-rail input/output voltages, enabling single or dual-supply operations from as low as 2.7 V.
Low power operation with a slew rate of 0.8 V/μs. Wide supply voltage range of 3 V to 16 V. Low input bias current and offset voltages for precise signal amplification. Compliance with multiple automotive standards for harsh environment usage.
Compact 8-Pin SOIC surface mount package. Operating temperature from -40°C to 125°C. Output current up to 75 mA for robust load driving.
This Operational Amplifier is widely used in industrial control systems, automotive electronics, instrumentation, and other embedded systems requiring reliable and accurate amplification. Its surface mount SOIC package facilitates easy PCB assembly and integration into modern electronic designs.
Explore the comprehensive Electronics & Electricals category on EnvMart for all semiconductor and amplifier components suitable for your engineering projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1 MHz.
It has an output current capability of 75 mA, allowing it to drive various loads effectively.
This operational amplifier operates within a supply voltage range of 3 V to 16 V.
The dimensions of the 8-Pin SOIC package are 4.9 mm in length, 3.9 mm in width, and 1.25 mm in height.
The operating temperature range for the TS912AIDT is from -40°C to 125°C.
It has a low input bias current, typically at 1 pA, with a range of 1 to 300 pA.
The input offset voltage range is from 2 to 12 mV, ensuring low signal distortion.
Yes, it meets multiple automotive standards including AEC-Q1, AEC-Q2, AEC-Q3, and AEC-Q100.
The slew rate is 0.8 V/μs, which supports low power operation.
This model uses a surface mount type for easy PCB assembly and integration.
It is a dual-channel operational amplifier, providing two amplification paths.
It is RoHS compliant and adheres to automotive standards including AEC-Q1 and AEC-Q100.
