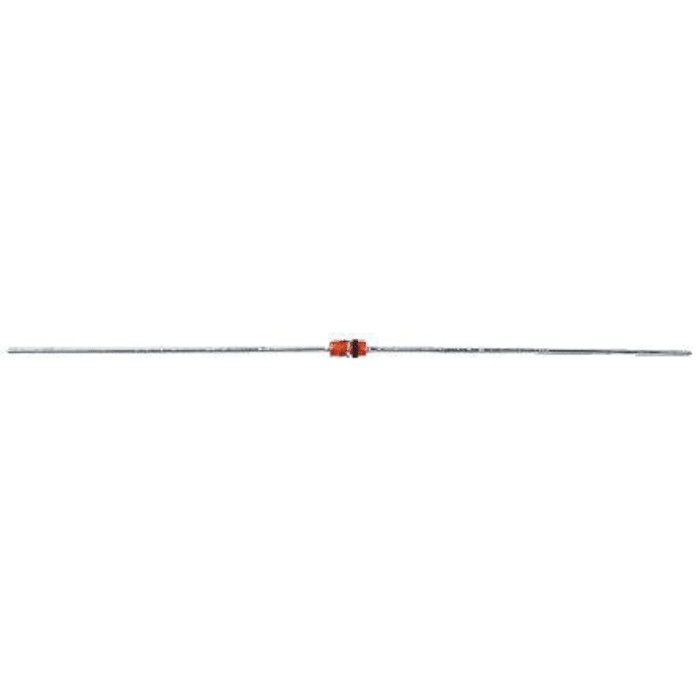

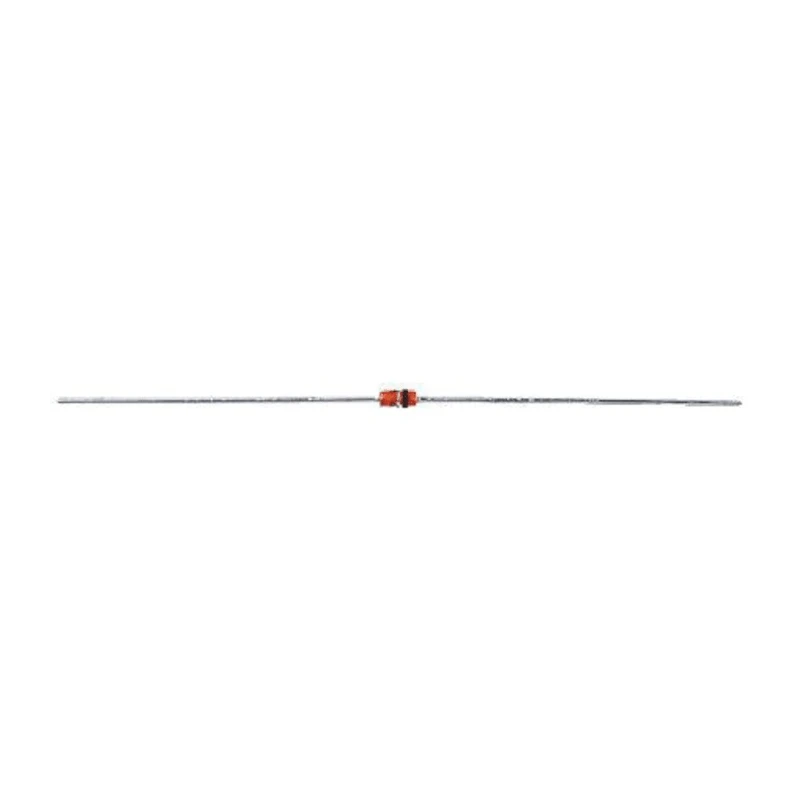

Vishay 14 V 500 mW Zener Diode Single 2% Tolerance Through Hole 2-Pin DO-35 TZX14C-TR
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 3.9mm |
| Model | TZX14C-TR |
| Mount Type | Through Hole |
| Series | TZX |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-35 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 14V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 35Ω |
Key Features
- This diode features a nominal Zener voltage of 14 volts and a maximum power dissipation of 500 mW.
- It has a maximum Zener impedance of 35 ohms and a test current of 5 mA ensuring voltage regulation capability.
- The device supports a wide operating temperature range from -65°C to 175°C, suitable for demanding applications.
- The low reverse leakage current of 1 microampere contributes to efficient performance in voltage regulation circuits.
- Qualification to AEC-Q101 automotive standard ensures reliability in automotive and industrial electronics.
- Compact dimensions with a length of 3.9 mm facilitate installation in tight circuit board layouts.
- Through hole package type DO-35 enables easy mounting and soldering in electronic assemblies.
- Ideal for applications needing voltage regulation with high stability and sharp reverse characteristics.
Product Description
Vishay TZX14C-TR is a single Zener Diode designed for precise voltage regulation with a nominal Zener voltage of 14 V and power dissipation rating of 500 mW. Packaged in a rugged through hole 2-pin DO-35 format, it offers excellent reliability and performance in electronic circuits.
This diode is characterized by a sharp reverse voltage characteristic and very low reverse leakage current of just 1 μA. Its maximum Zener impedance of 35 Ω ensures stable voltage regulation at a test current of 5 mA. The device operates reliably over a broad temperature range from -65°C to +175°C, making it suitable for industrial, automotive, and general electronic applications.
Certified to the AEC-Q101 automotive standard, the TZX14C-TR series supports stringent quality requirements for automotive electronics. Its compact size with a length of 3.9 mm and the through hole DO-35 package allow easy integration into PCB designs requiring durable components.
Typical uses include voltage regulation, reference voltage generation, and protection circuits in power supplies and electronic modules. The small signal nature and low noise profile make it a preferred choice in sensitive circuits where voltage stability is critical.
Its high stability and sharp reverse characteristic offer superior performance for demanding electronic designs. The single diode configuration simplifies circuit design while providing consistent and reliable operation.
Nominal Zener voltage of 14 V with 2% tolerance. Maximum power dissipation of 500 mW. Low reverse leakage current of 1 μA minimizes power losses. AEC-Q101 automotive qualification for enhanced reliability. Suitable for use in industrial, automotive, and general electronic circuits.
Compact through hole DO-35 package for straightforward mounting. Wide operating temperature range from -65°C to 175°C. High stability voltage regulator diode with sharp reverse characteristic. Explore more semiconductor and diode products in the Electronics & Electricals category at EnvMart for reliable industrial and commercial electronics components.
Explore more products in our Zener Diodes category.
