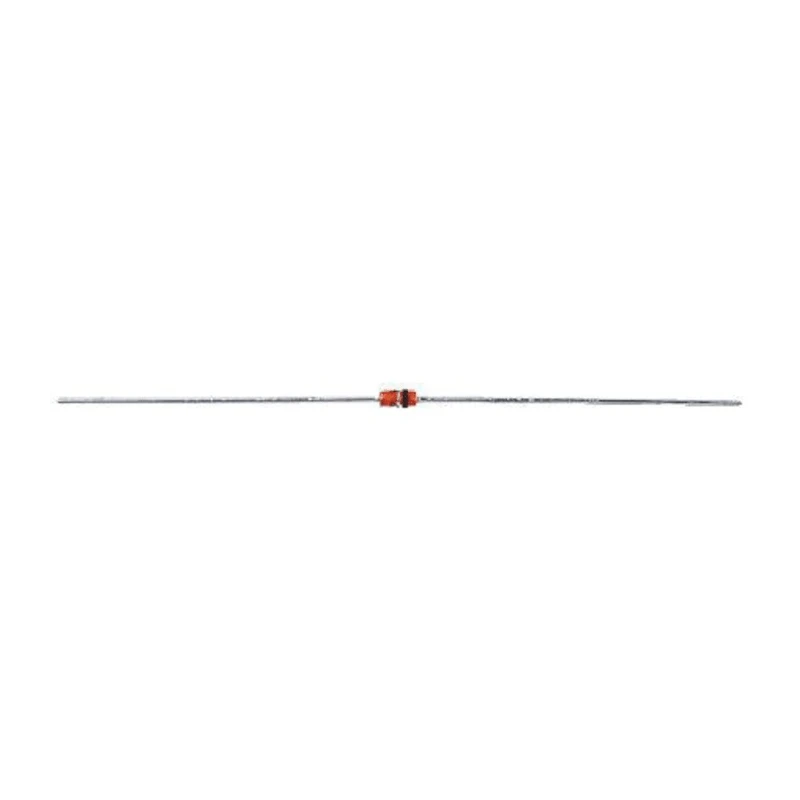

Vishay 3.7 V Zener Diode 500 mW Through Hole 2-Pin SOD-27 TZX3V6C-TR

Free Delivery in India | Lowest Global Shipping Charges

Vishay 3.7 V Zener Diode 500 mW Through Hole 2-Pin SOD-27 TZX3V6C-TR

Name: Vishay 3.7 V Zener Diode 500 mW Through Hole 2-Pin SOD-27 TZX3V6C-TR
Brand: Vishay
SKU: 133301
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Length	3.9mm
Model	TZX3V6C-TR
Mount Type	Through Hole
Series	TZX
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	3.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	100Ω

Key Features

The diode features a nominal zener voltage of 3.7 V with a tolerance of plus or minus 3 percent.
Maximum power dissipation is rated at 500 milliwatts ensuring robust performance.
It has a low maximum reverse leakage current of 5 microamperes for enhanced efficiency.
The component is rated for a test current of 5 milliamperes with a maximum zener impedance of 100 ohms.
Operating temperature ranges from minus 65 to 175 degrees Celsius, suitable for diverse environments.
The diode is AEC-Q101 automotive qualified offering high reliability in automotive applications.
Its SOD-27 package supports through-hole mounting with two pins for secure circuit integration.
This small signal zener diode provides a very sharp reverse characteristic and low noise operation.

Product Description

Vishay TZX3V6C-TR is a high-quality 3.7 V nominal Zener diode designed for voltage regulation in electronic circuits, capable of dissipating 500 mW power. It features a single diode configuration in a 2-pin SOD-27 through-hole package, making it suitable for robust mounting and integration in various electronic assemblies.

This diode offers excellent performance with a tight voltage tolerance of ±3%, a low maximum reverse leakage current of 5 microamperes, and a maximum zener impedance of 100 ohms at a test current of 5 mA. It supports a wide operating temperature range from -65°C to +175°C, making it ideal for industrial, automotive, and general electronic applications requiring stable voltage regulation.

The Vishay TZX series diodes are known for their very sharp reverse characteristics, very low reverse current, low noise, and high stability, ensuring reliable operation even in demanding environments. The product is compliant with RoHS directives and carries the AEC-Q101 automotive qualification, verifying its suitability for automotive electronic systems.

Typical use cases include automotive electronics, power supplies, protection circuits, and signal conditioning where precision voltage clamping or regulation is needed. The 3.9 mm length of the package is optimized for compact PCB designs with through-hole mounting convenience.

Incorporate the TZX3V6C-TR diode into your designs for dependable voltage regulation and component protection. Nominal zener voltage: 3.7 V with ±3% tolerance. Maximum power dissipation: 500 mW. Low reverse leakage current: 5 μA maximum.

Test current: 5 mA. Maximum zener impedance: 100 Ω. Operating temperature: -65°C to 175°C. Package type: SOD-27 through hole. Automotive standard: AEC-Q101 qualified. RoHS compliant. Single diode configuration with 2 pins.
