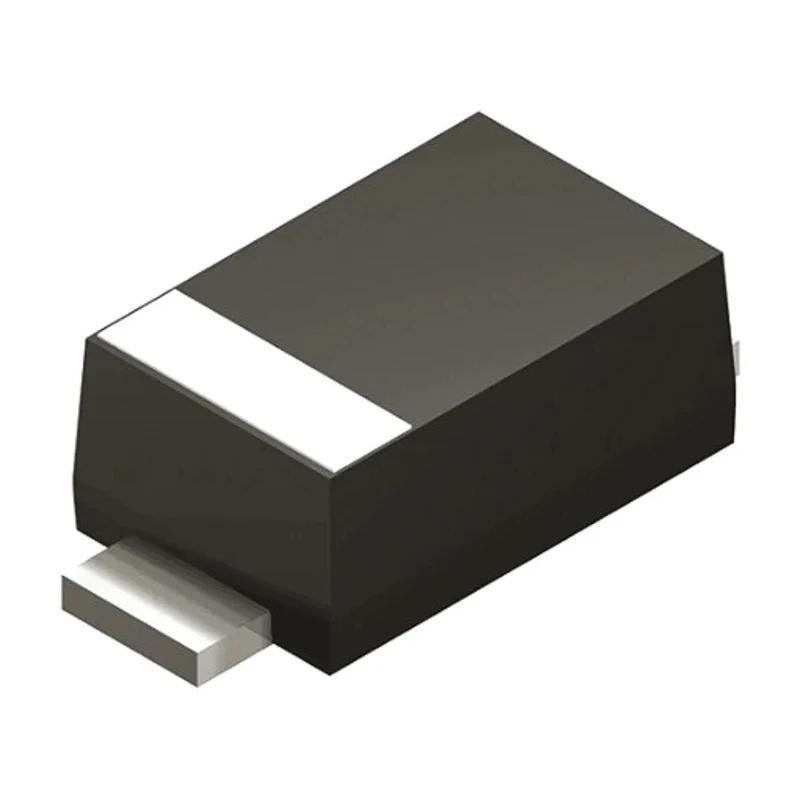

Nexperia 30 V 2 A Surface Mount Schottky Diode 2-Pin SOD-123 PMEG3020BER,115

Nexperia PMEG3020BER,115 is a high efficiency Schottky Barrier Diode designed for surface mount applications with a compact 2-pin SOD-123 package. It supports a maximum continuous forward current of 2 A and has a peak reverse repetitive voltage of 30 V, making it suitable for power rectification and protection circuits.

Its low forward voltage drop (max 520 mV) ensures minimal power loss and heat generation, enhancing energy efficiency in electronic devices. The diode's peak non-repetitive forward surge current rating of 50 A allows it to withstand transient overloads, ensuring durability in demanding conditions.

The device's mechanical dimensions (height 1.1 mm, width 1.9 mm, length 2.8 mm) provide a low-profile footprint ideal for modern compact electronic assemblies. With operating temperature range from -55°C up to 150°C, it delivers reliable performance across harsh thermal environments including automotive applications compliant with the AEC-Q101 standard.

Additional characteristics include low leakage current (50 μA) which helps reduce standby power consumption and negligible power switching losses for improved efficiency in high frequency circuits. The diode is manufactured under stringent quality controls, making it appropriate for industrial, automotive, and consumer electronics sectors.

This diode supports a maximum continuous forward current of 2 A. It has a peak reverse repetitive voltage rating of 30 V for reliable blocking capability. The device features a maximum forward voltage drop of 520 mV which ensures high efficiency.

Peak non-repetitive forward surge current capacity is 50 A to withstand surge conditions. Its small SOD-123 package dimensions allow compact PCB design with height 1.1 mm and width 1.9 mm. Designed for operation in temperatures from -55°C to 150°C for wide temperature robustness.

The diode conforms to automotive standard AEC-Q101 for automotive-grade reliability. Low leakage current of 50 μA minimizes power dissipation during reverse bias.

This Nexperia Schottky Diode PMEG3020BER,115 is well suited for use in industrial electronics, automotive electronics, power supply systems, switching regulators, and other applications requiring efficient rectification and low forward voltage drops. EnvMart offers this diode as part of its semiconductor electronic components portfolio.
