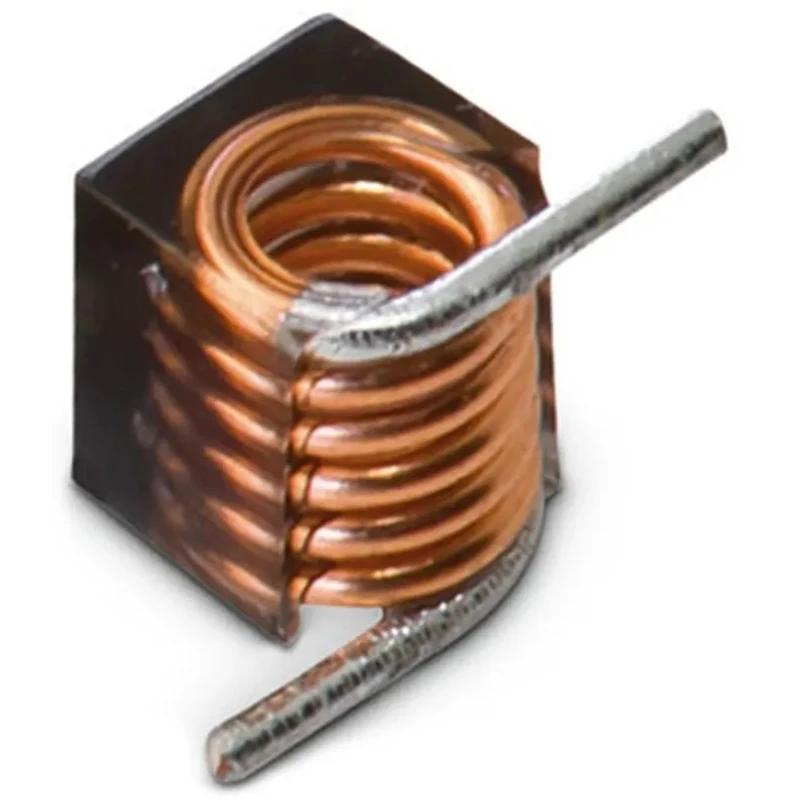

Wurth Elektronik WE-CAIR 4248 Shielded Surface Mount Air Coil Inductor with Ferrite Core 47nH ±5% 3A 744912147
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.83mm |
| Length | 3.81mm |
| Depth | 4.2mm |
| Packaging | Tape & Reel |
| Series | WE-CAIR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47nH |
| Standards/Approvals | REACH, RoHS |
| Package/Case | 4248 |
| Maximum DC Current | 3A |
| Pin Count | 2 |
| Maximum DC Resistance | 5.6mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 2.1GHz |
| Minimum Quality Factor | 100 |
| Inductor Construction | Without Core |
| Automotive Standard | AEC-Q200 |
Key Features
- High quality ferrite core construction for efficient magnetic performance.
- Shielded design minimizes electromagnetic interference.
- Supports maximum operating temperature up to 125°C.
- Minimum quality factor of 100 ensures low loss at high frequencies.
- Complies with automotive standard AEC-Q200.
- Maximum self-resonant frequency is 2.1 GHz enabling RF applications.
- Pin count of 2 pins compatible with standard soldering processes.
- Packaging via Tape & Reel for automated PCB assembly.
Product Description
Wurth Elektronik 744912147 WE-CAIR series shielded surface mount air coil inductor provides a precise inductance of 47 nH with ±5% tolerance, designed for high-performance and reliability in demanding applications. Featuring a ferrite core, this inductor supports a maximum DC current of 3 A and offers a maximum operating temperature of 125°C.
The 4248 package size and tape & reel packaging format make this component fully compatible with automated surface mount technology (SMT) assembly processes, increasing production efficiency and yield. The inductor is shielded to minimize electromagnetic interference, thereby improving overall circuit performance in sensitive RF and broadband filter applications.
WE-CAIR inductors exhibit a minimum quality factor (Q) of 100, ensuring low losses at high frequencies up to the maximum self-resonant frequency of 2.1 GHz. This makes them ideal for broadband filtering, RF decoupling, and other high-frequency electronic circuits in automotive and industrial environments compliant with AEC-Q200 standards.
The temperature range of -40°C to 125°C allows reliable operation in harsh environmental conditions. The simple 2-pin solder termination style supports conventional soldering methods. Dimensions of 4.83 mm height and 4.2 mm depth allow for compact PCB layouts in space-constrained designs.
Ferrite core with shielded construction minimizes EMI. Suitable for high current RF applications with up to 3A DC current. Automotive grade compliant with AEC-Q200 quality standards. Compact 4248 SMD package compatible with pick and place automated assembly.
Wide temperature range supports industrial environments. Explore more components from Wurth Elektronik and our extensive Surface Mount Inductors category to find the perfect solutions for your electronic design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 47 nH with a tolerance of ±5%.
It supports a maximum DC current of 3 A.
The maximum operating temperature is 125°C.
The dimensions are 4.83 mm in height, 4.2 mm in depth, and 3.81 mm in length.
The maximum self-resonant frequency is 2.1 GHz, making it suitable for RF applications.
It features a ferrite core, which enhances its magnetic performance.
It is packaged via Tape & Reel, which is compatible with automated PCB assembly processes.
The minimum quality factor is 100, ensuring low losses at high frequencies.
It complies with REACH and RoHS standards, as well as the automotive standard AEC-Q200.
The termination style is solder, supporting conventional soldering methods.
The operating temperature range is from -40°C to 125°C, allowing for reliable operation in harsh conditions.
This model has a pin count of 2, making it compatible with standard soldering processes.
