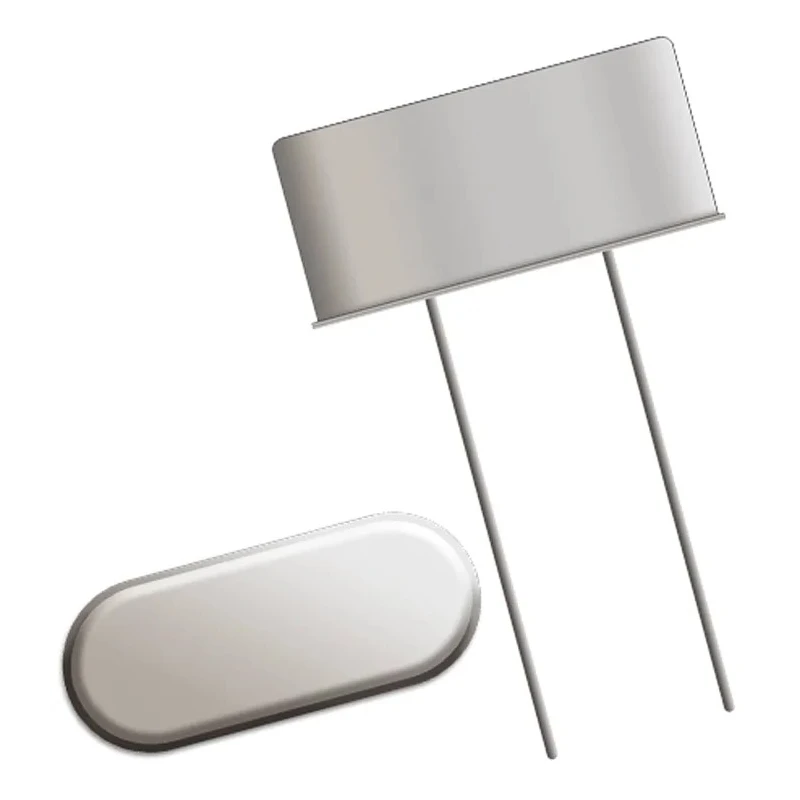

QANTEK 24 MHz Crystal HC-49 2-Pin Through Hole ±20 ppm 18 pF Load Capacitance QCL24.0000F18B23B
Specifications
| Country of Origin | China |
|---|---|
| Brand | QANTEK |
| Height | 3.5mm |
| Length | 11.05mm |
| Model | QCL24.0000F18B23B |
| Packaging | Bulk |
| Width | 4.65mm |
| Mount Type | Through Hole |
| Series | QCL |
| Maximum Operating Temperature | 85°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 24MHz |
| Load Capacitance | 18pF |
| Series Resistance | 40Ω |
| RS PRO 24MHz Crystal ±30ppm 2-Pin 11.35 x 5 x 3.5mmBrand | RS PRO |
Key Features
- This crystal operates at a standard frequency of 24 MHz for precise timing applications.
- It features a HC-49 package type suitable for through-hole mounting.
- Offers a frequency tolerance of ±20 ppm and frequency stability of ±30 ppm.
- The device supports an operating temperature range from -40°C to 85°C.
- It includes 2 pins and dimensions of 11.05 mm length, 4.65 mm width, and 3.5 mm height.
- Series resistance is 40 Ω, compliant with RoHS standards.
- Designed primarily for integration in electronic circuits requiring stable oscillations.
- Manufactured in China, ensuring consistent quality under the QCL series.
Product Description
QANTEK QCL24.0000F18B23B is a 24 MHz crystal oscillator housed in a HC-49 through-hole package designed for precision frequency control in electronic applications. The crystal offers a frequency tolerance of ±20 ppm and stability of ±30 ppm, ensuring high accuracy and reliability in timing circuits. Its load capacitance is specified at 18 pF, suitable for a wide range of oscillator circuits.
This 2-pin device measures 11.05 mm in length, 4.65 mm in width, and 3.5 mm in height, making it compact for integration on printed circuit boards with through-hole mounting. It supports a broad operating temperature range from -40°C to 85°C, making it suitable for diverse environmental conditions and industrial applications.
The series resistance of 40 Ω helps maintain signal integrity and performance. The product complies with RoHS environmental standards, ensuring it meets modern electronic compliance requirements.
Typical industrial applications include electronic equipment timing, communication devices, and other electronic systems where precise frequency and reliability are critical. The product is manufactured under the QCL series by QANTEK and originates from China.
This crystal operates at a standard frequency of 24 MHz for precise timing applications. It features a HC-49 package type suitable for through-hole mounting. Offers frequency tolerance of ±20 ppm and stability of ±30 ppm.
The device supports an operating temperature range from -40°C to 85°C. Includes 2 pins and dimensions of 11.05 mm length, 4.65 mm width, and 3.5 mm height. Series resistance is 40 Ω, compliant with RoHS standards. Designed for integration in electronic circuits requiring stable oscillations.
Manufactured in China ensuring consistent quality under the QCL series. Explore the Electronics Components category at EnvMart for more precision crystals, oscillators, and reliable frequency control devices from leading brands.
Explore more products in our Crystal Units category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The crystal operates at a standard frequency of 24 MHz, suitable for precise timing applications.
It has a load capacitance of 18 pF, which is appropriate for a variety of oscillator circuits.
This model features a frequency tolerance of ±20 ppm, ensuring high accuracy in timing circuits.
The dimensions are 11.05 mm in length, 4.65 mm in width, and 3.5 mm in height, making it compact for integration.
It supports an operating temperature range from -40°C to 85°C, suitable for diverse environmental conditions.
This model includes 2 pins, designed for through-hole mounting.
The series resistance is 40 Ω, which helps maintain signal integrity and performance.
It features an HC-49 package type, suitable for through-hole mounting applications.
Yes, it complies with RoHS standards, ensuring it meets modern electronic compliance requirements.
It is designed for integration in electronic circuits requiring stable oscillations, such as timing and communication devices.
The product is manufactured in China, ensuring consistent quality under the QCL series.
The frequency stability of this model is ±30 ppm, contributing to its reliability in timing applications.
