| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.35mm |
| Length | 2mm |
| Model | BZM55C3V9-TR |
| Mount Type | Surface |
| Series | BZM55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-80 |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 40μA |
| Nominal Zener Voltage Vz | 3.9V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 90Ω |

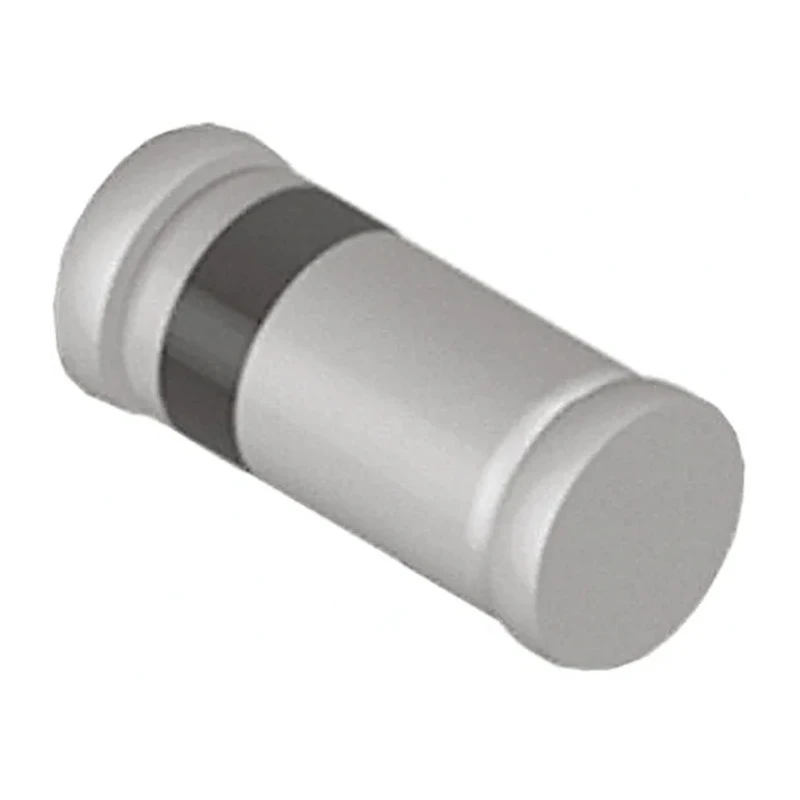

The Vishay BZM55C3V9-TR is a high-quality 3.9 V Zener diode designed for voltage regulation in electronic circuits. This single element diode is housed in a compact 2-pin SOD-80 surface mount package, delivering robust performance with a maximum power dissipation of 500 mW. It features a nominal Zener voltage of 3.9 V with a tolerance of ±5%, making it suitable for precise voltage regulation tasks in various applications.
With a maximum operating temperature of 175°C and compliance to the automotive AEC-Q101 standard, the diode is reliable for demanding automotive and industrial environments. Its low maximum reverse leakage current of 40 μA and Zener impedance up to 90 Ω improve circuit efficiency and stability at a test current of 5 mA. The physical dimensions of 2 mm length and 1.35 mm height facilitate compact PCB designs.
This diode is widely used in electronic components manufacturing, power supply circuits, and automotive electronics, providing dependable voltage regulation and protection. It is suitable for industrial, automotive, and commercial applications where compactness and performance are paramount.
Nominal Zener voltage of 3.9 V with ±5% tolerance ensuring voltage stability. Maximum power dissipation of 500 mW for efficient heat handling. Compact 2-pin SOD-80 surface mount package for space-saving designs. Rated for maximum operating temperature of 175°C for harsh environments.
Low reverse leakage current to reduce power loss and enhance efficiency. Complies with automotive-grade AEC-Q101 reliability standards. Ideal for automotive, industrial, and electronic component applications. Compact dimensions support modern miniaturized electronic assemblies.
EnvMart offers this Vishay Zener diode model BZM55C3V9-TR within the Electronics & Electricals category for semiconductor voltage regulation solutions.
