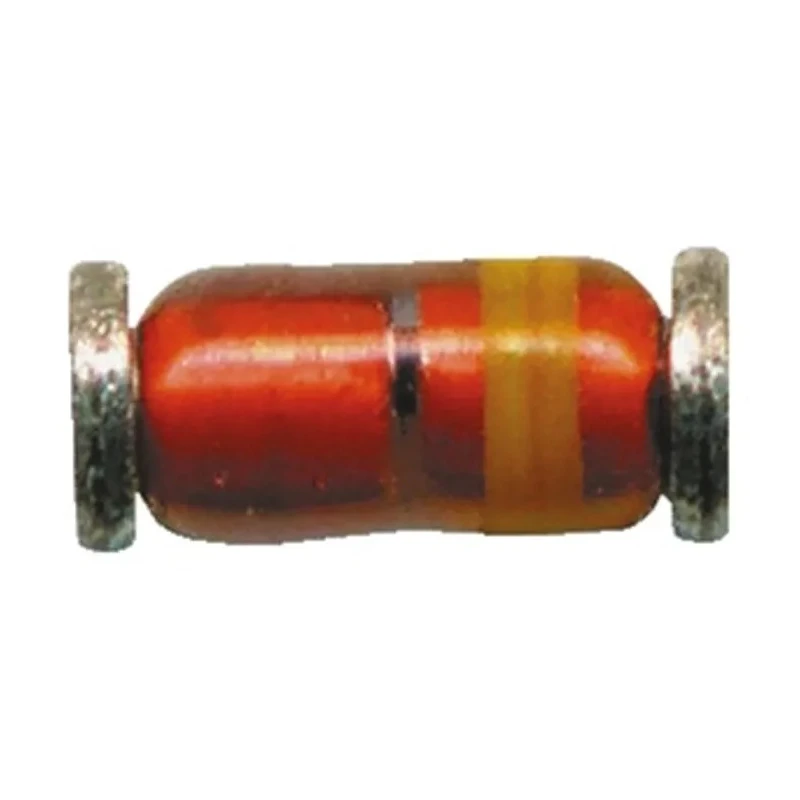

Vishay 4.7 V 1 W General Purpose Surface Mount Zener Diode, Single Element, 2-Pin DO-213AB ZMY4V7-GS08
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Length | 4mm |
| Model | ZMY4V7-GS08 |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-213AB |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 1W |
| Diode Configuration | Single |
| Test Current It | 100mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 4.7V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 7Ω |
Key Features
- This diode has a nominal Zener voltage of 4.7 volts with a tolerance of ±5 percent.
- It features a single diode element in a compact 2-pin DO-213AB package suitable for surface mounting.
- The maximum power dissipation is rated at 1 watt, ensuring reliable operation under significant load.
- The device complies with AEC-Q101 automotive standards, indicating suitability for automotive electronics applications.
- Operating temperature ranges from -55°C to 175°C, offering broad environmental tolerance.
- Maximum reverse leakage current is 500 nanoamperes, minimizing leakage losses.
- Test current is 100 mA to verify diode performance characteristics.
- The maximum Zener impedance is 7 ohms, ensuring voltage stability during operation.
Product Description
Vishay ZMY4V7-GS08 is a 4.7 V, 1 W general-purpose surface mount Zener diode designed and manufactured for use in stabilizing and clipping circuits that require stable voltage regulation under high power load. The diode is housed in a compact DO-213AB package with two pins, facilitating easy surface mount assembly on printed circuit boards.
This Zener diode features a single silicon planar diode element configured for reliable unclipped nominal voltage stabilization. It meets the AEC-Q101 qualification standard, making it suitable for automotive and industrial applications where performance reliability is critical.
The diode can operate across an extensive temperature range from -55°C to 175°C, making it useful in harsh environments. Its maximum power dissipation rating of 1 watt ensures stable operation in moderate power circuits.
With low maximum reverse leakage current at 500 nA and a maximum Zener impedance of 7 ohms, it delivers excellent voltage regulation efficiency. The test current is standardized at 100 mA for characterization and quality control purposes. The diode’s length of 4 millimeters supports compact PCB layouts, enabling efficient space utilization in electronic assemblies.
This product is manufactured in China and is typically supplied on reels, allowing for streamlined automated placement in production lines to improve manufacturing efficiency.
Application areas include automotive electronics, industrial control systems, and power management circuitry where precise voltage regulation is necessary, along with general-purpose semiconductor use cases.
Set in EnvMart’s Electronics & Electricals category under Semiconductors > Zener Diodes, this Vishay ZMY4V7-GS08 diode is a trusted component for robust and compact voltage stabilization solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 4.7 volts with a tolerance of ±5 percent.
The maximum power dissipation rating for this model is 1 watt, ensuring reliable operation under significant load.
It operates across a temperature range from -55°C to 175°C, making it suitable for harsh environments.
The maximum reverse leakage current is 500 nanoamperes, which helps minimize leakage losses.
This diode is housed in a compact DO-213AB package, which is suitable for surface mounting.
It complies with the AEC-Q101 automotive standard, indicating suitability for automotive electronics applications.
The maximum Zener impedance is 7 ohms, ensuring voltage stability during operation.
The test current for this model is standardized at 100 mA to verify its performance characteristics.
This model features a single diode element, configured for reliable unclipped nominal voltage stabilization.
The diode has a length of 4 millimeters, supporting compact PCB layouts for efficient space utilization.
It is suitable for automotive electronics, industrial control systems, and power management circuitry where precise voltage regulation is necessary.
This product is manufactured in China and is typically supplied on reels for automated placement in production lines.
