| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.7mm |
| Length | 3.9mm |
| Model | BZX55C56-TR |
| Mount Type | Through Hole |
| Series | BZX55 |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 2.5mA |
| Maximum Reverse Leakage Current | 10μA |
| Nominal Zener Voltage Vz | 56V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 135Ω |

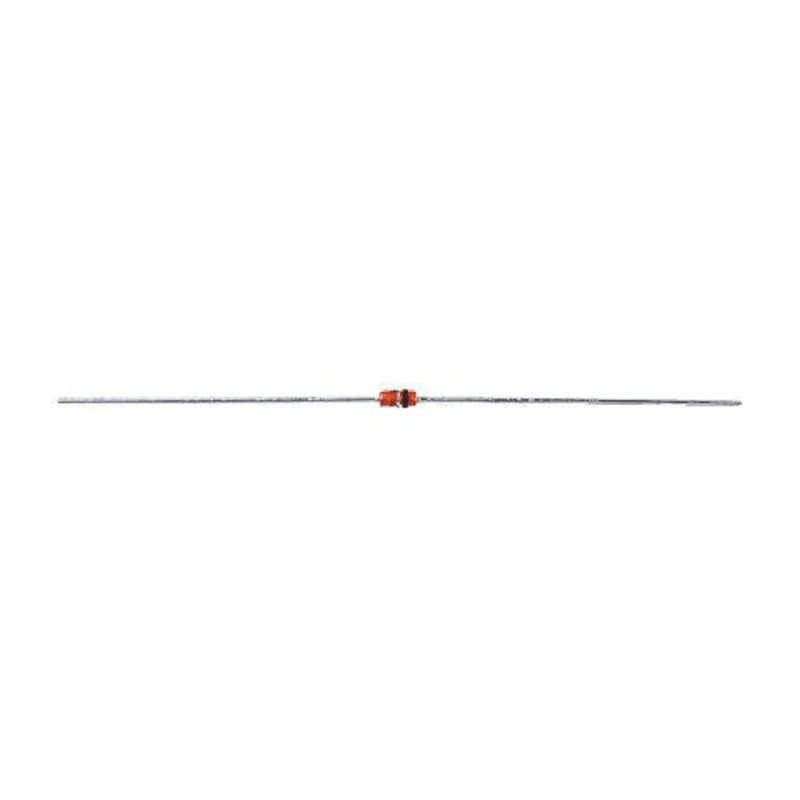

Vishay BZX55C56-TR Zener Diode is a high-quality voltage regulator diode designed for industrial and automotive applications. It operates with a nominal Zener voltage of 56 V and can dissipate power up to 500 mW, making it suitable for protection and stabilization of voltage in sensitive semiconductor circuits.
Housed in a compact 2-pin SOD-27 through-hole package, this diode has a low profile with a height of 1.7 mm and length of 3.9 mm, allowing for easy mounting on printed circuit boards. The device maintains very low reverse current, high stability, and sharp reverse characteristic essential for precision electronic component function.
Temperature tolerance spans from -65°C to 175°C, enabling use in varying environmental conditions including automotive electronics where thermal stress is common. The diode's compliance with AEC-Q101 certification underscores its reliability for automotive semiconductor applications.
This Zener diode is RoHS compliant, ensuring that it meets environmental directives restricting hazardous substances in electronic components. It features a maximum Zener impedance of 135 Ω and maximum reverse leakage current is limited to 10 μA, which helps in minimizing power loss and leakage currents in circuits.
Typical use cases include voltage regulation, overvoltage protection, and reference voltage applications in industrial electronics, automotive control systems, instrumentation, telecommunications, and consumer electronics equipment requiring stable voltage control.
The diode provides a nominal Zener voltage of 56 volts with ±7% tolerance. It features low reverse current and very high stability for reliable operation. The package type is SOD-27 with a compact height of 1.7mm and length of 3.9mm.
Operating temperature range is from -65°C to 175°C suitable for harsh industrial environments. The diode is AEC-Q101 qualified supporting automotive applications. Maximum power dissipation is 500 mW ensuring efficient voltage regulation.
The device offers maximum Zener impedance of 135 ohms and maximum reverse leakage current of 10 microamps. It comes RoHS compliant for environmental safety. Explore our selection of Vishay semiconductor components for advanced electronic design solutions at EnvMart.
