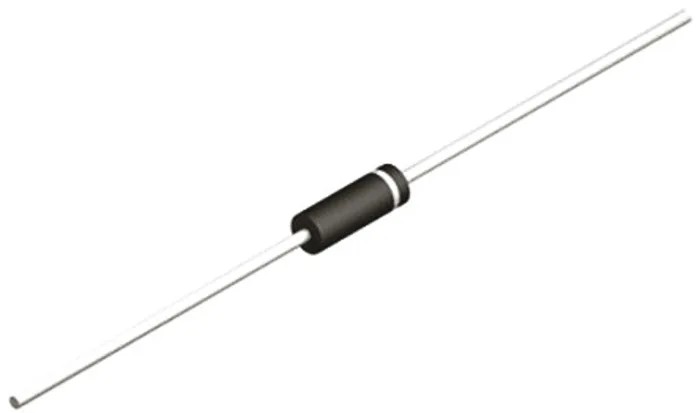

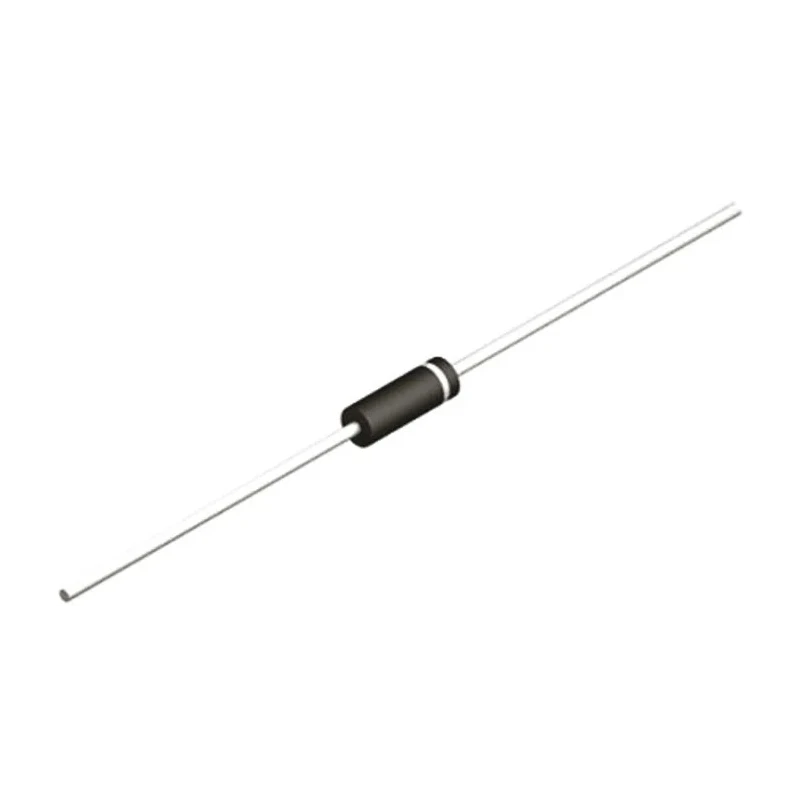

Vishay General Purpose Diode 400 V 1 A 2-Pin DO-204AC 1N5060GP-E3/54
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.6mm |
| Brand | Vishay |
| Length | 7.6mm |
| Model | 1N5060GP-E3/54 |
| Width | 0.028mm |
| Mount Type | Through Hole |
| Series | 1N50 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-204AC |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | UL 94 V-0, RoHS, J-STD-002, JESD 22-B106, JESD 22-B102, JESD 201 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 300μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 2μs |
Key Features
- Standard recovery rectifier diode designed for versatility and high efficiency.
- Through hole mount with a compact 7.6 mm length and 3.6 mm diameter package.
- Features a peak reverse current of 300 microamps and a peak forward surge current of 50 A.
- Operates reliably from -65°C to 175°C, ensuring durability in varying industrial conditions.
- Maximum forward voltage is 1.2 V with a peak reverse recovery time of 2 microseconds.
- Compliance with industry standards including UL 94 V-0, RoHS, J-STD-002, and automotive AEC-Q101 certification.
- Suitable for industrial, electronic, and power supply applications requiring robust rectification.
Product Description
Vishay 1N5060GP-E3/54 is a general purpose diode designed for efficient rectification with a maximum continuous forward current of 1 A and peak reverse repetitive voltage of 400 V. Packaged in the industry-standard 2-pin DO-204AC through-hole configuration, it is ideal for various industrial and electronic applications including power supply circuits.
The diode features a fast peak reverse recovery time of 2 microseconds and a low maximum forward voltage of 1.2 V, contributing to efficiency and reliability. It can withstand operating temperatures ranging from -65°C to 175°C, making it suitable for use in harsh environments. With a peak non-repetitive forward surge current rating of 50 A, it tolerates transient conditions effectively.
Mechanically, it has a length of 7.6 mm and diameter of 3.6 mm, fitting compact PCB layouts. The device complies with multiple quality and safety standards such as UL 94 V-0 and RoHS, ensuring safe and environmentally compliant operation. Automotive standard AEC-Q101 certification adds to its suitability for automotive electronics usage.
Standard recovery power diode for robust rectification. Through hole mount type with 2 pins in DO-204AC package. Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 400 V. Peak reverse current: 300 microamps.
Operating temperature range: -65°C to 175°C. Maximum forward voltage: 1.2 V. Peak reverse recovery time: 2 microseconds. Length: 7.6 mm, Diameter: 3.6 mm. Certifications: UL 94 V-0, RoHS, J-STD-002, AEC-Q101 automotive standard.
This Diode serves in industrial, laboratory, electronics manufacturing, and power supply design settings, providing standard rectification with high reliability. Explore related Vishay semiconductor components on EnvMart for integrated circuit solutions and discrete semiconductor needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 A.
It has a peak reverse repetitive voltage rating of 400 V.
This unit operates reliably within a temperature range of -65°C to 175°C.
The diode is packaged in a DO-204AC configuration, which is a through-hole mount type.
The peak reverse recovery time is 2 microseconds.
The maximum forward voltage is 1.2 V.
It has a peak non-repetitive forward surge current rating of 50 A.
The diode has a length of 7.6 mm and a diameter of 3.6 mm.
It complies with UL 94 V-0, RoHS, J-STD-002, and AEC-Q101 automotive standards.
The peak reverse current is rated at 300 microamps.
This model is suitable for industrial, electronic, and power supply applications requiring robust rectification.
This diode features a 2-pin configuration.
