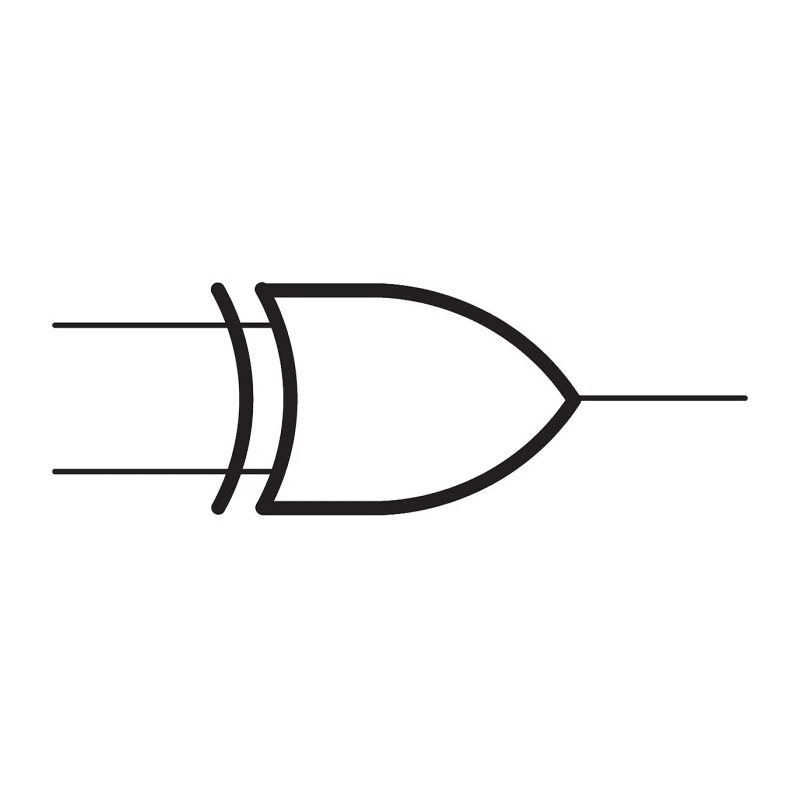

DiodesZetex 4 2-Input XOR Schmitt Trigger Input Logic Gate, 14-Pin TSSOP 74AHC86T14-13

DiodesZetex 74AHC86T14-13 is a high-performance logic gate IC featuring four independent 2-input XOR gates with Schmitt trigger inputs housed in a 14-pin TSSOP package. Operating over a supply voltage range of 2.0V to 5.5V, this device is optimized for fast switching applications with a maximum propagation delay of 11 nanoseconds.

Its Schmitt trigger input design enhances noise immunity and signal integrity, making it suitable for harsh industrial, manufacturing, and electronic equipment environments. The TSSOP surface mount package provides a compact footprint, enabling high-density board layouts in consumer electronics, industrial automation, and telecommunications.

The Logic Gates operate reliably within a wide temperature range from -40°C to 125°C and have push-pull output types capable of sourcing or sinking current up to 8mA at a 4.5V supply. The device complies with stringent ESD protection standards including Human Body Model, Machine Model, and Charged Device Model, ensuring durability in assembly and operational environments.

The 74AHC family ICs from DiodesZetex offer low power consumption while maintaining high-speed CMOS logic performance, ideal for modern digital circuit designs requiring precise and rapid logic computation. This part is extensively used in industrial control systems, automation, signal processing modules, and electronic instrumentation.

This device contains four independent 2-input XOR gates with Schmitt trigger inputs. It supports a wide supply voltage range from 2.0V to 5.5V. The TSSOP package with 14 pins ensures compact surface mounting. Features low propagation delay of 11 nanoseconds for fast switching.

Operating temperature ranges from -40°C to 125°C suitable for industrial environments. Low power consumption with outputs capable of sinking or sourcing 8mA at 4.5V VCC. Push-pull output stage enables robust logic signal driving capability.

Built-in ESD protection exceeding JESD standards for device reliability. Designed using the 74AHC logic family compatible with various digital circuits. Explore more industrial-grade logic ICs and components within the Electronics & Electricals category at EnvMart for your design and manufacturing needs.
