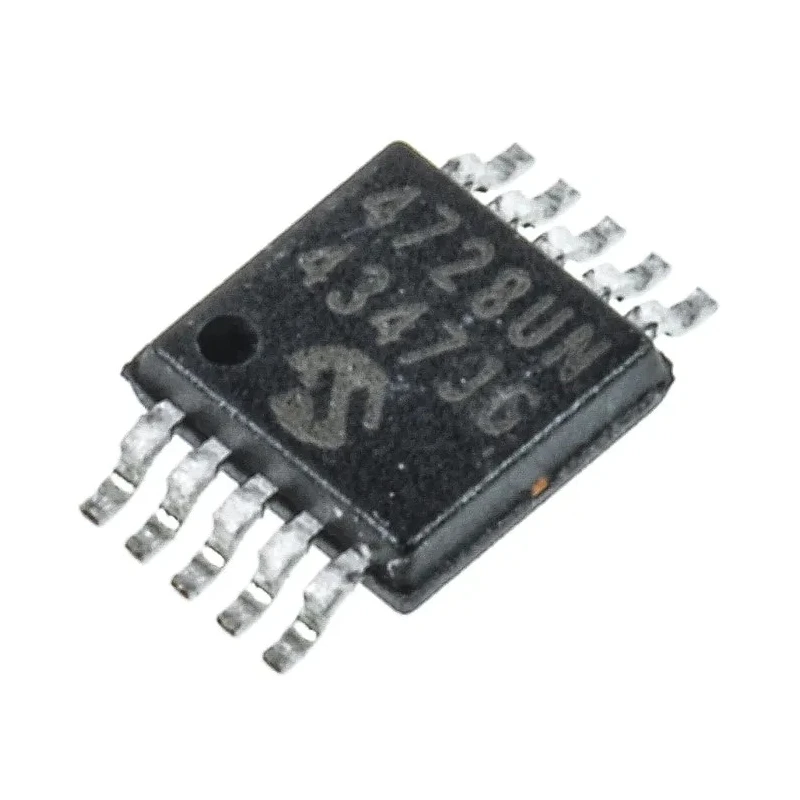

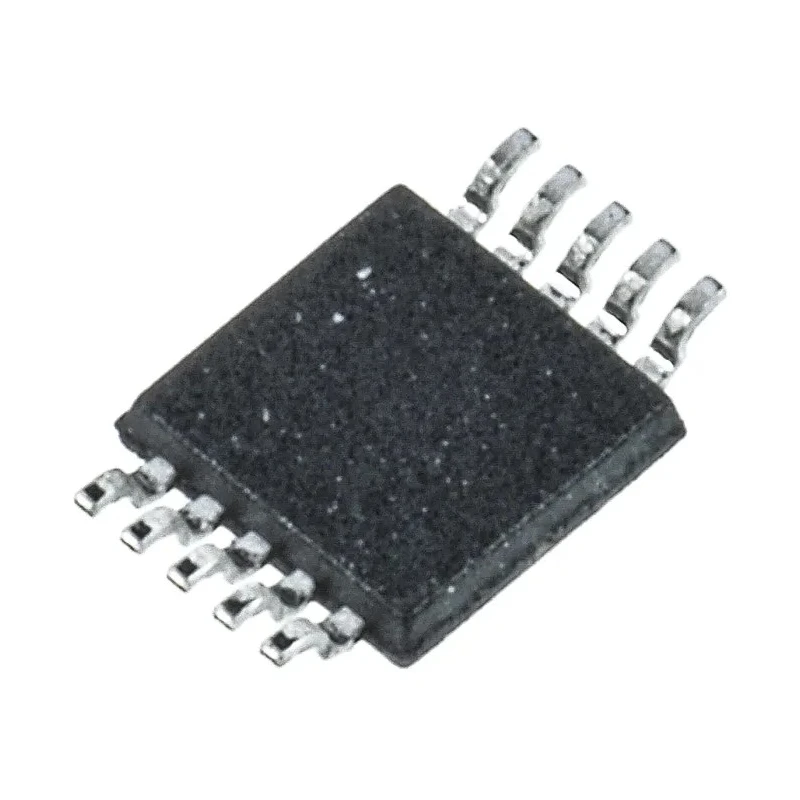

Microchip 12 Bit 4-Channel Digital to Analogue Converter Serial-I2C Interface 3.3-5.5V MCP4728-E/UN
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP4728-E/UN |
| Width | 3mm |
| Mount Type | Surface |
| Settling Time | 6μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | MSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | Serial-I2C |
| Architecture | Resistor String |
| Pin Count | 10 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3.3V |
| Microchip DAC 12 bit- 4-Channel Serial-I2C, 10-Pin MSOPBrand | Microchip |
Key Features
- Resistor string architecture ensures stable analogue voltage generation.
- Operates with supply voltages from 3.3V to 5.5V enabling versatile application.
- Compact MSOP package with 10 pins and dimensions 3mm x 3mm x 1.1mm for PCB space efficiency.
- Fast settling time of 6 microseconds providing quick signal response.
- Supports 4 independent output channels for multi-signal generation.
- Wide operating temperature range from -40°C to 125°C suitable for industrial use.
- Internal voltage reference simplifies circuit design and improves accuracy.
- Surface mount technology (SMT) mount type for automated manufacturing processes.
Product Description
Microchip MCP4728-E/UN is a 12-bit digital-to-analogue converter (DAC) featuring four output channels capable of delivering stable analogue voltages via a Serial-I2C interface. This device is housed in a small 10-pin MSOP package with dimensions of 3mm in length, 3mm in width, and 1.1mm in height, suitable for compact PCB layouts.
Its resistor string architecture ensures precise and consistent voltage output, and the internal voltage reference improves design simplicity and reliability. The device operates over a supply voltage range of 3.3V to 5.5V and supports a fast settling time of 6 microseconds, making it ideal for applications requiring rapid response.
The DAC supports surface mount PCB assembly (Surface mount type) and offers an extended operating temperature range from -40°C up to 125°C, enhancing its suitability for demanding industrial environments. This new condition product from Microchip is designed to enhance electronic system capabilities with unmatched precision and multiple channel outputs.
Resistor string architecture ensures stable analogue voltage generation. Operates with supply voltages from 3.3V to 5.5V enabling versatile application. Compact 10-pin MSOP package for efficient PCB space utilization. Fast settling time of 6 microseconds providing quick signal response.
Four independent output channels designed for signal multiplexing. Wide temperature range from -40°C to 125°C for reliability in harsh environments. Internal voltage reference reduces need for external components. Surface mount technology facilitates automated manufacturing.
Suitable for an array of industrial, embedded, and electronic applications.
Explore the broad range of semiconductors and Digital to Analogue Converters from Microchip on EnvMart for high-quality industrial electronics components designed to meet your development and production requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP4728-E/UN has a resolution of 12 bits, allowing for precise analogue voltage generation.
This model operates with supply voltages ranging from 3.3V to 5.5V, providing versatility for various applications.
The device supports four independent output channels, enabling multi-signal generation.
It has a fast settling time of 6 microseconds, which allows for quick signal response.
The MCP4728-E/UN is housed in a compact 10-pin MSOP package with dimensions of 3mm x 3mm x 1.1mm.
It utilizes a Serial-I2C interface for communication, making it compatible with various microcontrollers.
The maximum operating temperature for the MCP4728-E/UN is 125°C, suitable for industrial environments.
This model features a resistor string architecture, which ensures stable analogue voltage generation.
The minimum operating temperature is -40°C, allowing it to function in harsh conditions.
It supports surface mount technology (SMT), facilitating automated manufacturing processes.
The output type is analogue voltage, which is suitable for various electronic applications.
The country of origin for this product is India.
