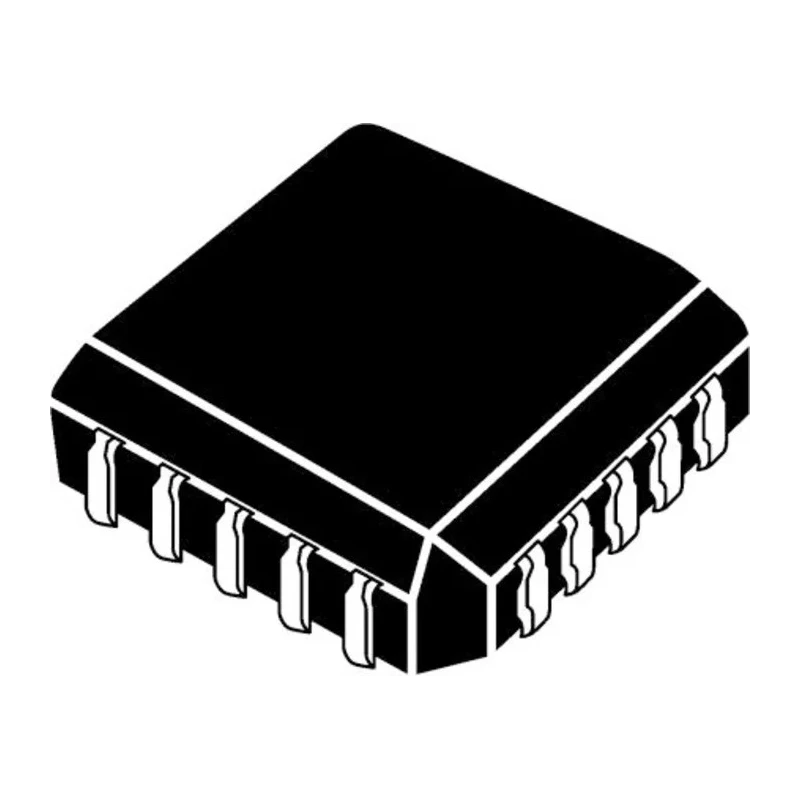

Microchip Simple Programmable Logic Device 150 Gates, 8 Macro Cells, 8 I/O, 62 MHz In System ATF16V8BQL-15JU

Microchip ATF16V8BQL-15JU is a simple programmable logic device featuring 150 gates, 8 macro cells, and 8 user I/Os. It operates at a maximum internal frequency of 62 MHz and supports in-system programmability with re-programmability to facilitate flexible circuit design and updates.

This device comes in a compact PLCC package with 20 pins, suitable for surface mounting on printed circuit boards, enabling easy integration into electronic assemblies.

Designed for high reliability with low power consumption, it performs within a supply voltage range of 4.5V to 5V, and maintains operational stability over a broad temperature range from -40°C to 85°C, making it ideal for industrial and commercial electronics applications.

The device's maximum propagation delay time of 15 ns supports quick logic operations, enhancing performance in timing-sensitive environments.

Applications of this programmable logic device include use in embedded systems, digital logic circuit prototyping, industrial controls, and other electronic systems requiring configurable logic functionality.

High-performance programmable logic device with low power consumption. Supports in-system programmability and re-programmability. Surface mount type with PLCC package and 20 pins. Operating voltage range from 4.5V to 5V for stable performance.

Wide operating temperature range from -40°C to 85°C. Compact design with dimensions of 9.04 mm length and 4.06 mm height. Maximum propagation delay time of 15 ns ensures fast response. Complies with RoHS standards for environmental safety.

This Microchip programmable logic device is manufactured in the Philippines and conforms to RoHS environmental standards. Suitable for various industrial, laboratory, and commercial electronic component applications, it facilitates efficient and flexible circuit design solutions.
