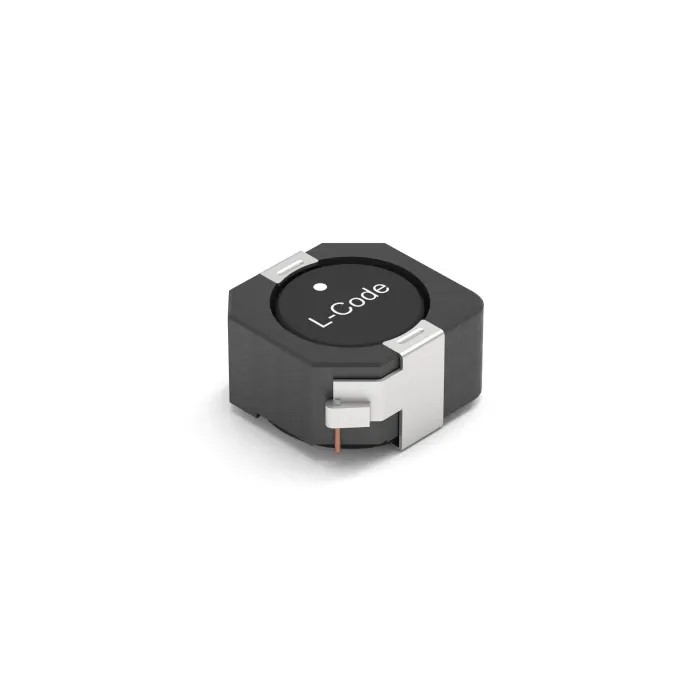

Wurth Elektronik Wirewound Shielded Surface Mount Inductor 10 μH ±20 % 2 A DC Current 7345 WE-PD 744777910
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 7.3mm |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 10μH |
| Standards/Approvals | IPC/JEDEC J-STD-020D |
| Package/Case | 7345 |
| Maximum DC Current | 2A |
| Maximum DC Resistance | 49mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 23MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Recommended solder profile | Reflow |
Key Features
- Magnetically shielded design reduces electromagnetic interference effectively.
- Constructed with a wirewound inductor element for reliable performance.

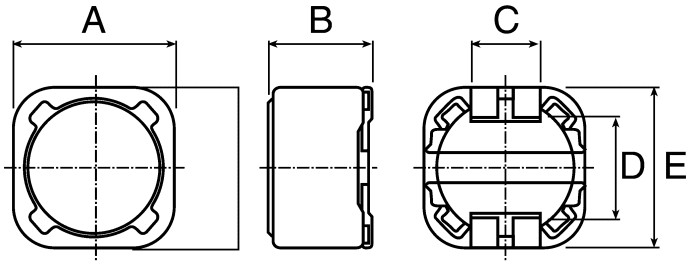

- Compact 7345 package case measuring 7.3 mm length, 7.3 mm depth, and 4.5 mm height.
- Operates reliably within the temperature range of -40°C to 125°C.
- Designed to meet automotive AEC-Q200 standard and IPC/JEDEC J-STD-020D qualifications.
- Maximum DC resistance is 49 mΩ ensuring efficient current flow.
- Maximum self-resonant frequency of 23 MHz supports high-frequency applications.
- Surface mount termination style suitable for automated PCB assembly and reflow soldering.
Product Description
Wurth Elektronik model 744777910 is a wirewound shielded surface mount inductor, series WE-PD, designed for power electronics applications. It features a 10 μH inductance with ±20 % tolerance and supports a maximum DC current of 2 A, making it suitable for high efficiency switching regulators and integrated DC/DC converters.
The inductor comes in a 7345 package with dimensions 7.3 mm in length, 7.3 mm in depth, and 4.5 mm in height. Its magnetically shielded construction minimizes leakage fields, providing low electromagnetic interference in circuit designs. It is moulded with a plastic base (6033 - 7345 series) to enhance mechanical strength and reliability.
Operating temperature range is robust from -40°C to 125°C, with IEC automotive standard AEC-Q200 compliance and IPC/JEDEC J-STD-020D approval ensuring durability in demanding industrial environments. The maximum DC resistance of 49 mΩ minimizes losses and enhances efficiency in power delivery.
The maximum self-resonant frequency of 23 MHz makes this inductor ideal for high-frequency applications. Its surface mount termination style allows for easy placement on automated assembly lines and compatibility with recommended reflow soldering profiles.
This component is specifically designed to cater to switching regulators, low voltage power supplies, and graphic cards, supporting switching regulators with efficiency greater than 86%. Applications include industrial electronics, automotive electronics, and power management circuits.
Magnetically shielded for low leakage and EMI reduction. Wirewound construction provides high current handling capabilities. Fits 7345 SMD package with compact dimensions. Reliably operates in wide temperature and automotive conditions.
Surface mount compatible with automated manufacturing processes. Low DC resistance reduces energy loss and heat generation. High self-resonant frequency supports efficient high-frequency operation. Conforms to industry standards to guarantee quality and safety.
Ideal for switching regulators, DC/DC power converters, and graphic card power circuits.
The product is manufactured in China and supplied on tape and reel packaging, facilitating efficient mass placement. Suitable for a variety of industrial and commercial electronic design uses.
Explore more Surface Mount Inductors and power electronic components in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20%.
It supports a maximum DC current of 2 A.
The dimensions of the 7345 package are 7.3 mm in length, 7.3 mm in depth, and 4.5 mm in height.
The maximum self-resonant frequency is 23 MHz, making it suitable for high-frequency applications.
It operates reliably within a temperature range of -40°C to 125°C.
Yes, it is designed to meet the automotive AEC-Q200 standard.
This inductor features a wirewound construction, which provides high current handling capabilities.
The maximum DC resistance is 49 mΩ, ensuring efficient current flow.
It utilizes a surface mount termination style, suitable for automated PCB assembly and reflow soldering.
It is supplied on tape and reel packaging, facilitating efficient mass placement.
It is compliant with IPC/JEDEC J-STD-020D qualifications, ensuring reliability in electronic applications.
This model is specifically designed for applications such as switching regulators, low voltage power supplies, and graphic cards.
