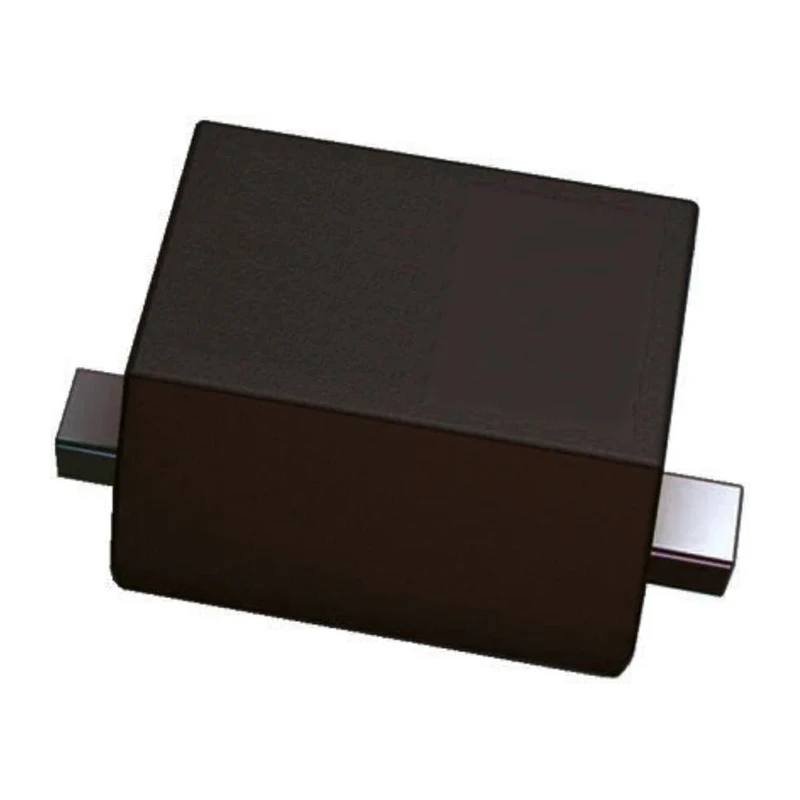

onsemi 1-Element Uni-Directional TVS Diode 181 W, 2-Pin SOD-523 Package ESD5Z6.0T1G

onsemi ESD5Z6.0T1G is a 1-element uni-directional transient voltage suppressor (TVS) diode providing 181 W peak pulse power dissipation in a compact SOD-523 surface mount package. It is designed to safeguard voltage sensitive components against electrostatic discharge (ESD) and transient voltage events, exhibiting fast response time, excellent clamping capability, and low leakage current, making it ideal for reliable ESD protection in modern electronics.

This TVS diode features a minimum breakdown voltage of 6.8 V and maximum reverse stand-off voltage of 6 V, accommodating transient currents up to 8.8 A for robust surge tolerance. The diode operates over a broad temperature range of -55°C to 150°C, suitable for harsh industrial, automotive, and consumer electronics environments.

The device measures 1.3 mm in length, 0.9 mm in width, and 0.7 mm in height, enabling design flexibility where board space constraints are critical. It has a maximum reverse leakage current of only 10 nA to minimize power losses during normal operation. The ESD5Z series complies with IEC61000−4−2 Level 4 and IEC61000−4−4 Level 4 standards for ESD and EFT protection respectively, and adheres to automotive AEC-Q101 quality standards.

Typical applications include portable devices such as cellular phones and digital cameras, as well as power supplies and industrial control systems requiring reliable surge protection. This diode helps protect sensitive circuit elements from damaging voltage transients and prolongs equipment lifespan.

Features a single diode element for precise transient suppression. Uni-directional configuration ensures effective voltage clamping. Minimum breakdown voltage of 6.8 V with maximum reverse stand-off of 6 V. Peak pulse current rating of 8.8 A supports high transient energy absorption.

Compact dimensions of 1.3 mm length, 0.9 mm width, and 0.7 mm height ideal for space-constrained applications. Operating temperature range from -55°C to 150°C for reliable performance. Very low maximum reverse leakage current of 10 nA ensures minimal power loss.

Conforms to automotive standard AEC-Q101 for enhanced reliability. Provides IEC61000−4−2 Level 4 ESD and IEC61000−4−4 Level 4 EFT protection levels.

This component is essential for industrial, automotive, consumer electronic, and communication equipment applications requiring robust ESD protection in a highly compact footprint. For additional related products, browse our TVS Diode category at EnvMart.
