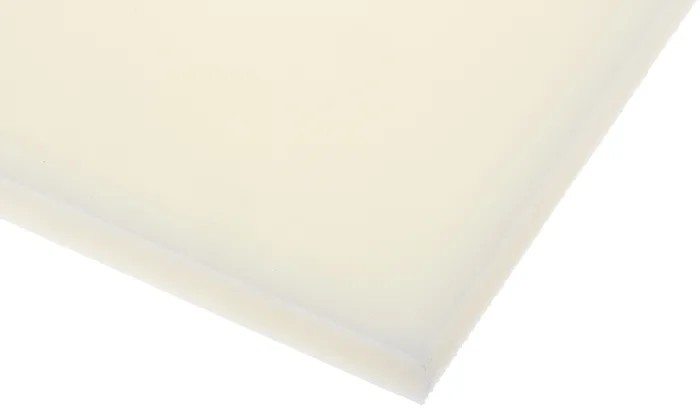

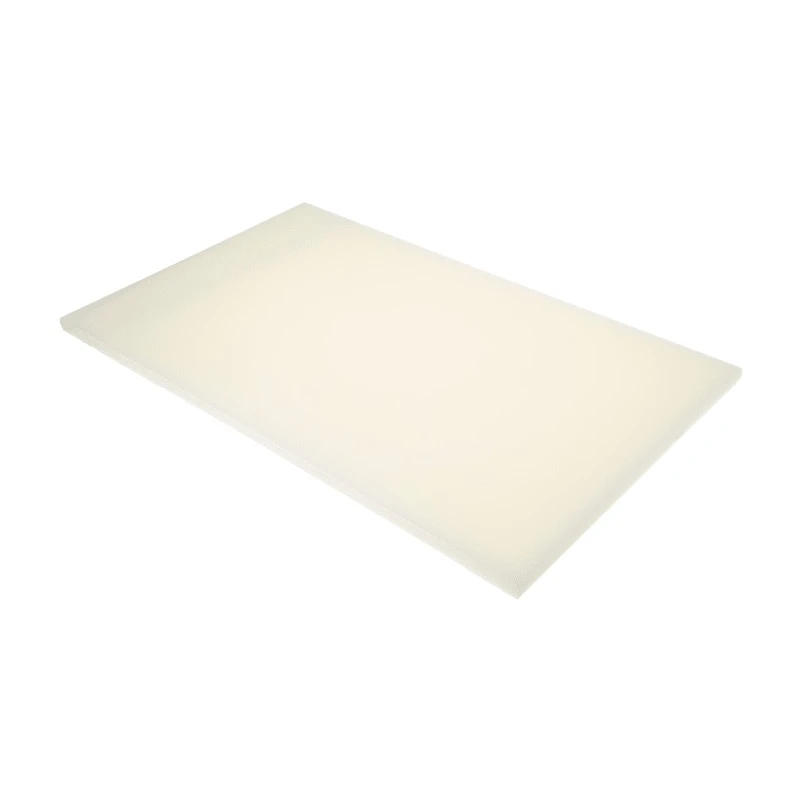

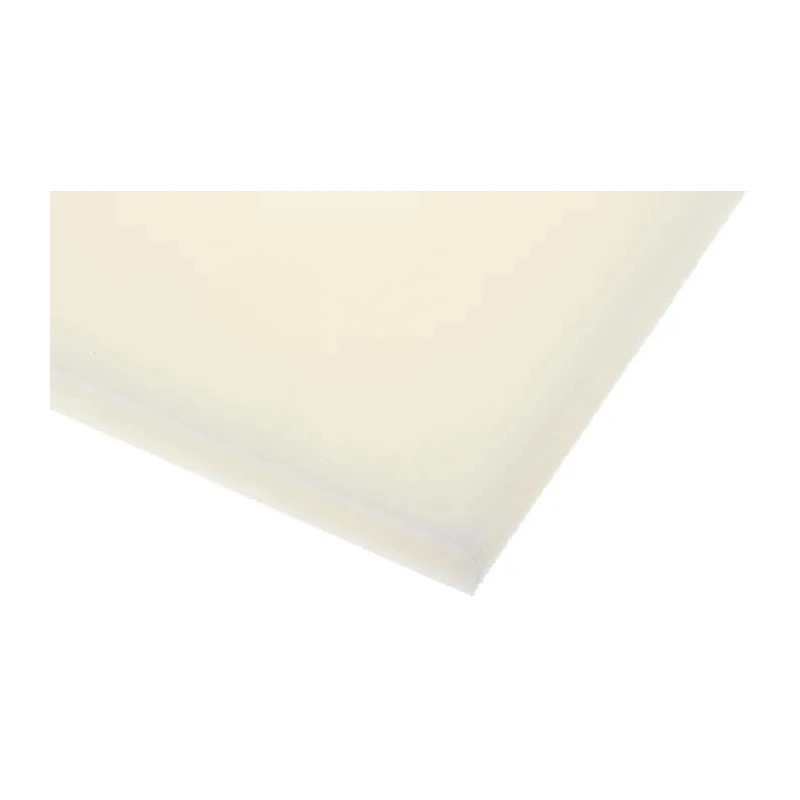

RS PRO Natural Polyamide Plastic Sheet 500 mm x 300 mm x 12 mm 680-296

RS PRO 680-296 Natural Polyamide Plastic Sheet is a high-quality engineering material designed for demanding industrial applications. This sheet is manufactured from Nylon 66 (Polyamide 66 or PA66), a semi-crystalline engineering plastic known for its rigidity, hardness, and outstanding wear resistance. It is supplied in a natural color and sized at 500 mm x 300 mm x 12 mm, suitable for a wide range of custom fabrication tasks.

The sheet features a density of 1.14 g/cm³, which ensures excellent dimensional stability during machining and operation. With a tensile strength of 80 MPa and an impact-resistant matrix, it is ideal for applications requiring high mechanical performance. Its low frictional properties and good slide response make it suitable for delicate components such as gears, cam discs, bushings, piston guides, and friction strips. Polyamide's maximum operating temperature is 100°C, extending usability in high-temperature environments. The UL HB flammability rating provides safety for use in electrical and mechanical contexts.

Engineering and fabrication professionals benefit from the material’s resistance to abrasion, chemicals, oils, greases, and fuels. It is electrically insulating and weldable or bondable, supporting both mechanical and electronic component production. Polyamide plastic sheets are frequently used in electronics, automotive, food processing, textiles, agriculture, packaging, and aerospace sectors. Not only does the sheet offer low water absorption (8.5%) for stability, but it also supports precision machining where tight tolerances and reliable performance are essential.

This sheet’s versatility allows it to be cut by utility knife for thinner sizes, or by a variety of saw types for thicker formats, enabling efficient fabrication and reduced material waste. Common use cases include fabrication of gear wheels, cam discs, friction strips, bushings, spindle nuts, plug parts, rope pulleys, conveyor screws, and impact plates.

Made from Nylon 66 (Polyamide 66) with high rigidity and hardness. Dimensions: 500 mm x 300 mm x 12 mm, density: 1.14 g/cm³. Outstanding wear and impact resistance, low friction, and thermal stability. Maximum operating temperature: 100°C; UL HB flammability rating.

Resistant to chemicals, oils, greases, fuels, and moisture. Typical industrial applications: gears, bearings, piston guides, conveyor screws, and bushings. Electrically insulating and suitable for electronic and mechanical fabrication.
