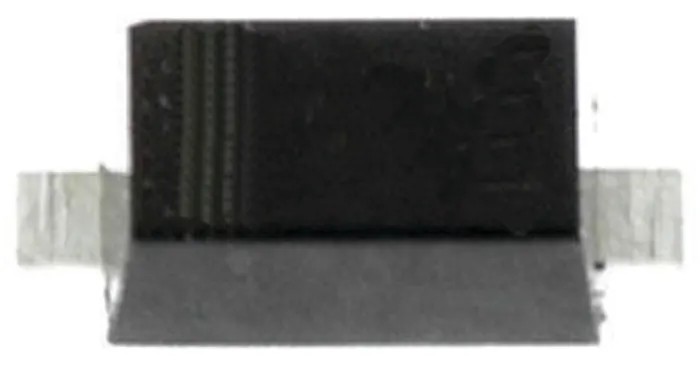

DiodesZetex 4.7 V 500 mW Surface Mount Zener Diode 2-Pin SOD-323 DDZ4V7ASF-7

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 4.7 V 500 mW Surface Mount Zener Diode 2-Pin SOD-323 DDZ4V7ASF-7

Name: DiodesZetex 4.7 V 500 mW Surface Mount Zener Diode 2-Pin SOD-323 DDZ4V7ASF-7
Brand: DiodesZetex
SKU: 130746
Price: 0.04 USD
Availability: InStock



Category Zener Diodes Brand DiodesZetex Condition New

Specifications

Country of Origin	China
Brand	DiodesZetex
Height	0.75mm
Length	1.8mm
Model	DDZ4V7ASF-7
Mount Type	Surface
Series	DDZ4V7ASF
Maximum Operating Temperature	150°C
Package Type	SOD-323
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	20mA
Maximum Reverse Leakage Current	10μA
Nominal Zener Voltage Vz	4.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	130Ω
Surface Mount case	SOD-323F
Diodes Inc, 24V Zener Diode 2.5% 500 mW SMT 2-Pin SOD-323FBrand	DiodesZetex

Key Features

This zener diode features a nominal voltage of 4.7 volts with a tight tolerance of ±2.5%.
It has a maximum power dissipation capacity of 500 milliwatts ensuring reliable performance.
Designed with a 2-pin surface mount SOD-323 package for easy PCB integration.
The device operates over a wide temperature range from -65°C to 150°C.
Maximum reverse leakage current is limited to 10 microamperes for efficiency.
Test current is specified at 20 milliamperes for accurate voltage regulation.
Low maximum zener impedance of 130 ohms aids in stable voltage control.
RoHS compliant ensuring environmental safety and regulatory compliance.

Product Description

DiodesZetex DDZ4V7ASF-7 is a high precision 4.7 V zener diode designed for voltage regulation in electronic circuits. It features a nominal zener voltage of 4.7 volts with a tight tolerance of ±2.5%, providing stable voltage reference points vital for power and signal conditioning applications.

With a maximum power dissipation of 500 milliwatts, this diode handles moderate power loads efficiently. It is built in a compact 2-pin surface mount SOD-323F package, which offers easy integration on modern printed circuit boards optimized for automated assembly.

The diode is constructed to function reliably across a broad temperature range from -65°C up to 150°C, making it suitable for industrial, automotive, and general semiconductor environments requiring robust thermal stability. Its low maximum reverse leakage current of 10 microamperes and a maximum zener impedance of 130 ohms ensure minimal power loss and responsive voltage regulation.

This component complies with RoHS directives, promoting environmental responsibility in manufacturing and deployment. The DDZ4V7ASF-7 series from Diodes Inc provides a precise and compact solution for voltage regulation, commonly used in electronic component assemblies, power supply circuits, and signal conditioning subsystems.

This zener diode features a nominal voltage of 4.7 volts with a tight tolerance of ±2.5%. It has a maximum power dissipation capacity of 500 milliwatts ensuring reliable performance. Designed with a 2-pin surface mount SOD-323 package for easy PCB integration.

The device operates over a wide temperature range from -65°C to 150°C. Maximum reverse leakage current is limited to 10 microamperes for efficiency. Test current is specified at 20 milliamperes for accurate voltage regulation.

Low maximum zener impedance of 130 ohms aids in stable voltage control. RoHS compliant ensuring environmental safety and regulatory compliance. Ideal for electronic component, power regulation, and semiconductor applications.

This product is suitable for industrial electronics manufacturing, power supply design, automotive electronics, and general electronic device applications. Browse more semiconductor and diode components like this at EnvMart to meet your design and production needs.
