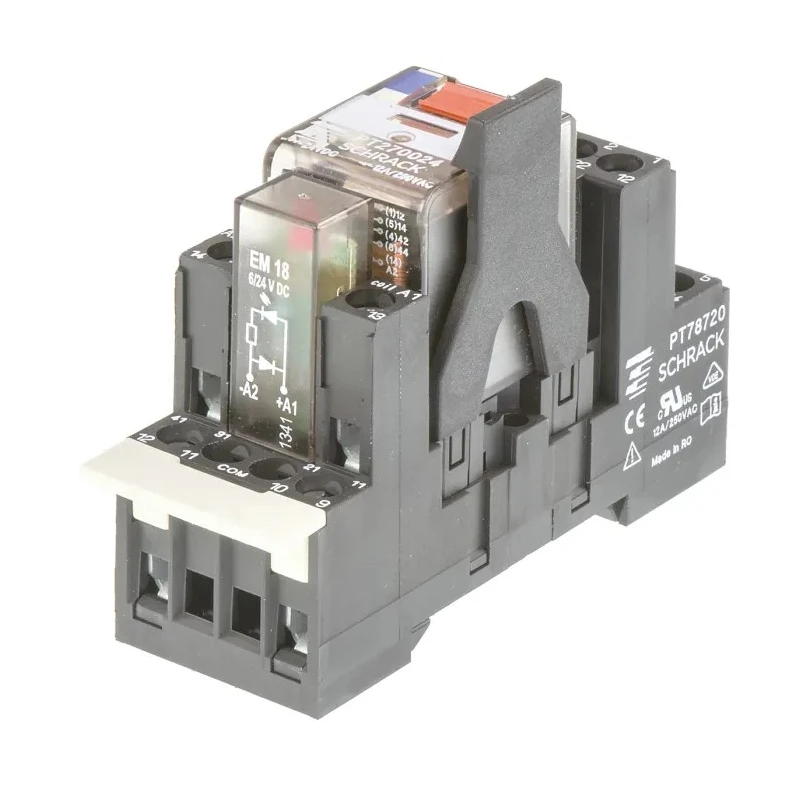

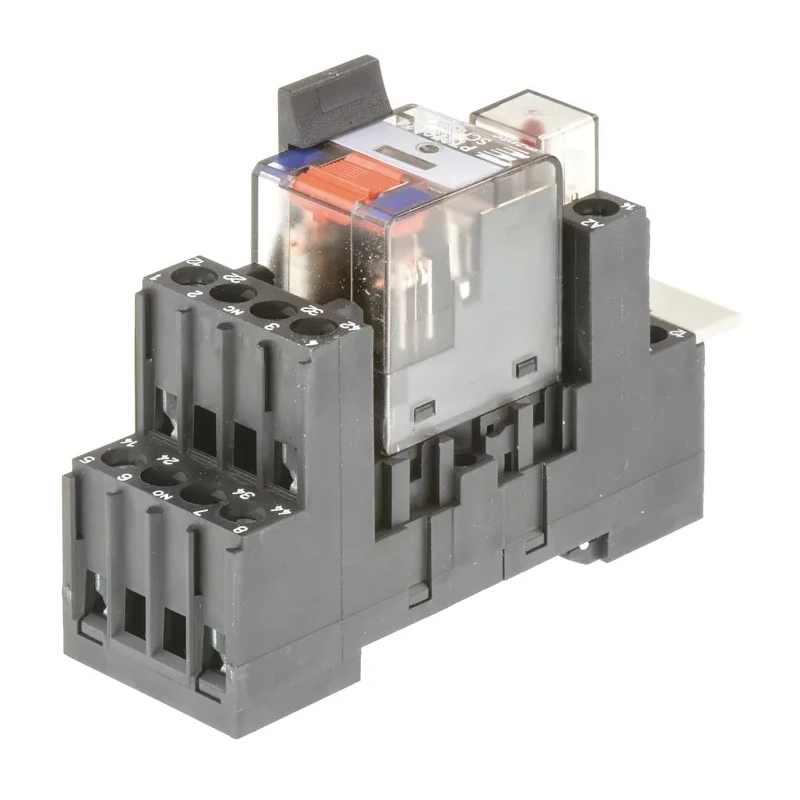

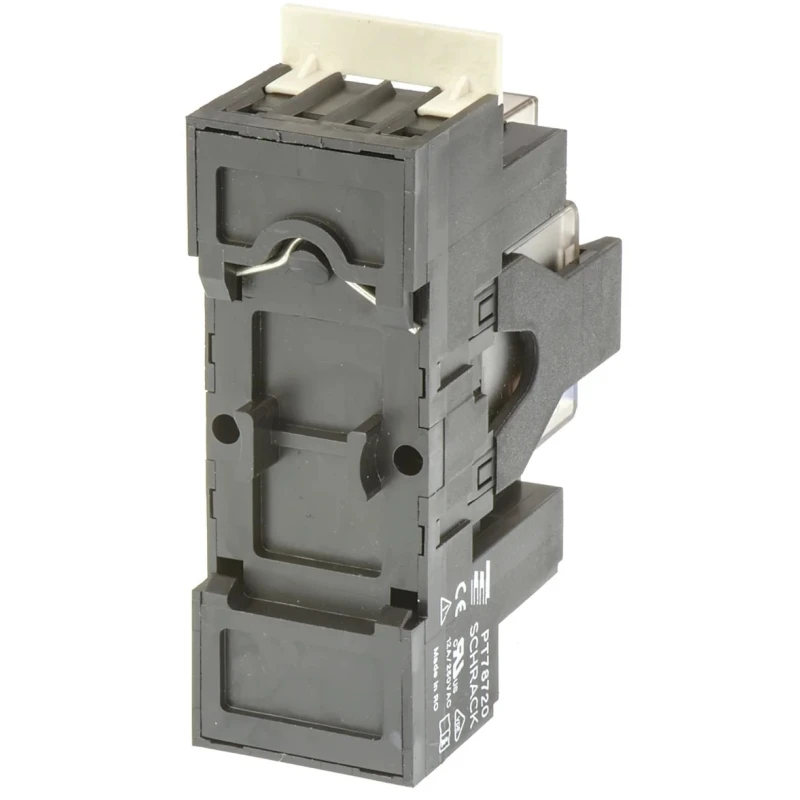

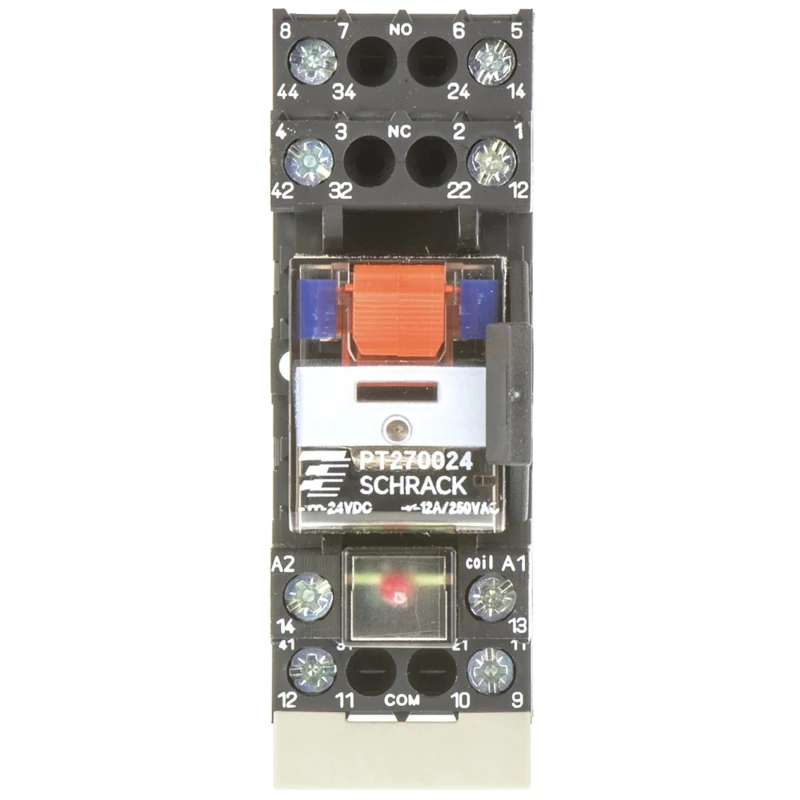

TE Connectivity DIN Rail Power Relay 24V DC Coil 12A Switching Current DPDT PT2S7LC4 8-1415074-1
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 58mm |
| Length | 73.5mm |
| Model | PT2S7LC4 8-1415074-1 |
| Width | 27mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Nickel Alloy |
| Series | PT |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Screw |
| Standards/Approvals | IEC, VDE, UL, RoHS |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Coil Resistance | 777Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
Key Features
- The relay has a coil resistance of 777 ohms ensuring efficient operation.
- It supports a maximum switching AC voltage of 400V AC.
- Mechanical, electrical indicator and manual test tab included for operational convenience.
- Constructed using silver nickel alloy contacts to provide optimal conductivity and durability.
- Suitable for mounting on standard DIN rails with screw terminal connections.
- Operates within a temperature range of -40°C to 70°C for versatile environmental adaptability.
- Conforms to international standards including IEC, VDE, UL, and RoHS for safety and reliability.
Product Description
TE Connectivity PT2S7LC4 8-1415074-1 DIN Rail Power Relay is designed for robust electrical switching applications in industrial, automation, and control systems. It features a 24V DC coil voltage and a DPDT contact configuration capable of handling a switching current of up to 12A, making it suitable for high-load switching tasks.
This relay is mounted on a DIN rail and equipped with screw terminal connections, simplifying installation and maintenance procedures. The coil resistance measures 777 ohms, contributing to its reliable coil operation. Silver nickel alloy contacts ensure high conductivity and wear resistance, enhancing durability under frequent switching cycles.
Performance parameters include a maximum switching AC voltage of 400V AC and operation across a broad temperature range from -40°C to 70°C, ensuring adaptability for harsh industrial environments. The relay includes mechanical and electrical indicators, as well as a manual test tab, facilitating easy status monitoring and testing without circuit disruption.
Compliant with IEC, VDE, UL, and RoHS standards, this relay guarantees safety and regulatory adherence across various global markets. Its compact dimensions - 73.5mm length, 27mm width, and 58mm height - enable integration into a variety of electrical control panels.
The coil resistance is 777 ohms for efficient coil function. Supports operation up to a maximum temperature of 70°C. Contact material is silver nickel alloy designed for robustness. Includes manual test tab and mechanical/electrical indicators for ease of use.
Screw terminal type and DIN rail mounting for reliable mounting and wiring. Meets multiple international standards including IEC, VDE, UL, and RoHS. Operates reliably between -40°C and 70°C ambient temperatures.
This DIN rail power relay is ideal for applications in electrical automation, HVAC control, industrial machinery, and process control systems. It offers dependable switching performance in both commercial and industrial environments.
Discover more quality electrical components and relays in the Power Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay can handle a maximum switching current of 12A.
The coil voltage for this model is 24V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The relay supports a maximum switching AC voltage of 400V AC.
The relay measures 73.5mm in length, 27mm in width, and 58mm in height.
It is designed for mounting on standard DIN rails.
The contacts are constructed from silver nickel alloy, enhancing conductivity and durability.
The coil resistance is 777 ohms, which ensures efficient operation.
This model operates within a temperature range of -40°C to 70°C.
It includes mechanical and electrical indicators, as well as a manual test tab.
It conforms to IEC, VDE, UL, and RoHS standards for safety and reliability.
This relay uses screw terminal connections for reliable wiring.
