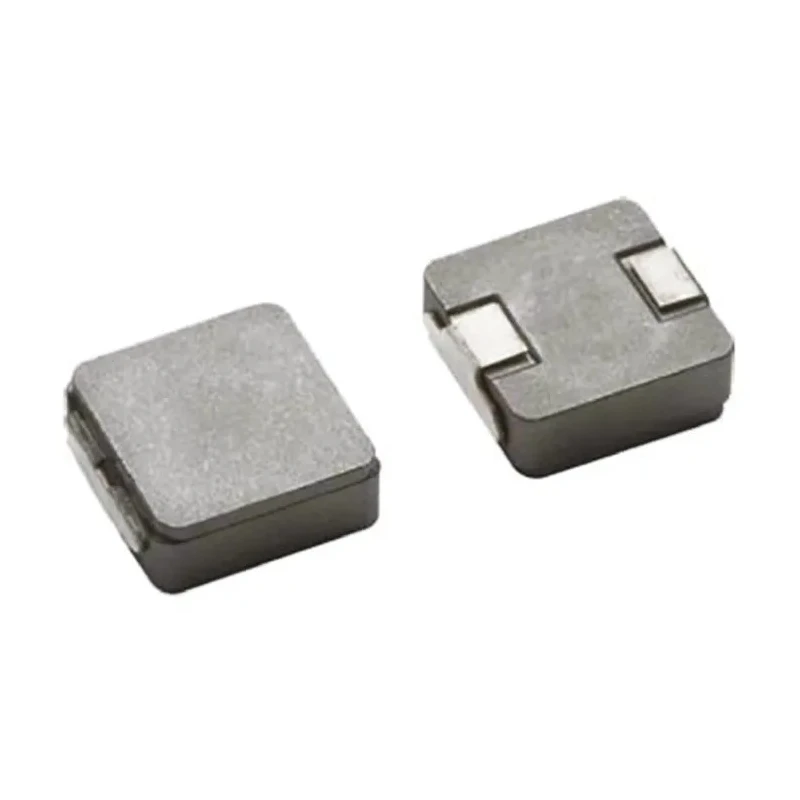

Vishay 4040 Shielded Surface Mount Inductor, 10 μH ±20 % Inductance, Metal Composite Core, 6.8 A Maximum IHLP4040DZER100M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 4mm |
| Length | 10.8mm |
| Model | IHLP4040DZER100M01 |
| Depth | 10.16mm |
| Series | IHLP-4040DZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 10μH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 4040 |
| Maximum DC Current | 6.8A |
| Maximum DC Resistance | 36.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 5MHz |
| Inductor Construction | Shielded |
Key Features
- The inductor features a shielded construction ensuring low electromagnetic interference.
- It is designed for high current applications with a maximum DC resistance of 36.5 mΩ.
- The component package size is 4040 with dimensions 10.8 mm length, 4 mm height, and 10.16 mm depth.
- Operates reliably within a temperature range of -55°C to 125°C for industrial and automotive electronics.
- Supports frequencies up to 5 MHz with low buzz noise due to composite construction.
- Termination is surface mount style for easy PCB integration.
- Complies with JEDEC and RoHS standards for quality and environmental safety.
- Suitable for high current POL converters, DC/DC converters, and battery-powered devices.
Product Description
Vishay IHLP4040DZER100M01 is a 4040 Shielded Surface Mount Inductor featuring a metal composite core, 10 µH inductance with ±20 % tolerance, and a maximum DC current rating of 6.8 A. It is designed to deliver high performance in demanding electronic applications requiring efficient power management.
Constructed with a shielded design, this inductor minimizes electromagnetic interference and buzz noise, vital for sensitive electronic circuits. Its low DC resistance (36.5 mΩ) helps maintain energy efficiency and reduce heat generation during operation.
The 4040 package case dimensions (10.8 mm in length, 4 mm in height, and 10.16 mm in depth) enable low-profile mounting, ideal for compact devices. It is molded for durability and designed for surface mount termination to enable automated PCB assembly.
This inductor is capable of operating over a wide temperature range from -55°C to 125°C, making it suitable for industrial electronics and harsh environments. It supports frequencies up to 5 MHz, ensuring effectiveness in high-frequency DC/DC converter circuits.
Key industrial applications include PDAs, notebooks, desktop computers, servers, high-current POL converters, battery-powered equipment, and FPGA power supplies. Its compliance with JEDEC and RoHS standards confirms adherence to quality and environmental regulations.
The inductor features a shielded construction ensuring low electromagnetic interference. It is designed for high current applications with a maximum DC resistance of 36.5 mΩ. The component package size is 4040 with dimensions 10.8 mm length, 4 mm height, and 10.16 mm depth.
Operates reliably within a temperature range of -55°C to 125°C for industrial and automotive electronics. Supports frequencies up to 5 MHz with low buzz noise due to composite construction. Termination is surface mount style for easy PCB integration.
Complies with JEDEC and RoHS standards for quality and environmental safety. Suitable for high current POL converters, DC/DC converters, and battery-powered devices.
This Vishay Surface Mount Inductor series represents a versatile solution for power electronics and is recommended for designers seeking a reliable magnetically shielded choke for compact, high-performance applications. Explore similar Vishay products and enhance your electronics assembly on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current rating is 6.8 A.
The dimensions of the 4040 package are 10.8 mm in length, 4 mm in height, and 10.16 mm in depth.
The maximum DC resistance is 36.5 mΩ.
It operates reliably within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency is 5 MHz.
The inductor features a metal composite core.
The termination style is surface mount, allowing for easy PCB integration.
It complies with JEDEC and RoHS standards for quality and environmental safety.
This inductor is suitable for high current POL converters, DC/DC converters, and battery-powered devices.
It features a shielded construction, which minimizes electromagnetic interference.
The series name of this inductor is IHLP-4040DZ-01.
