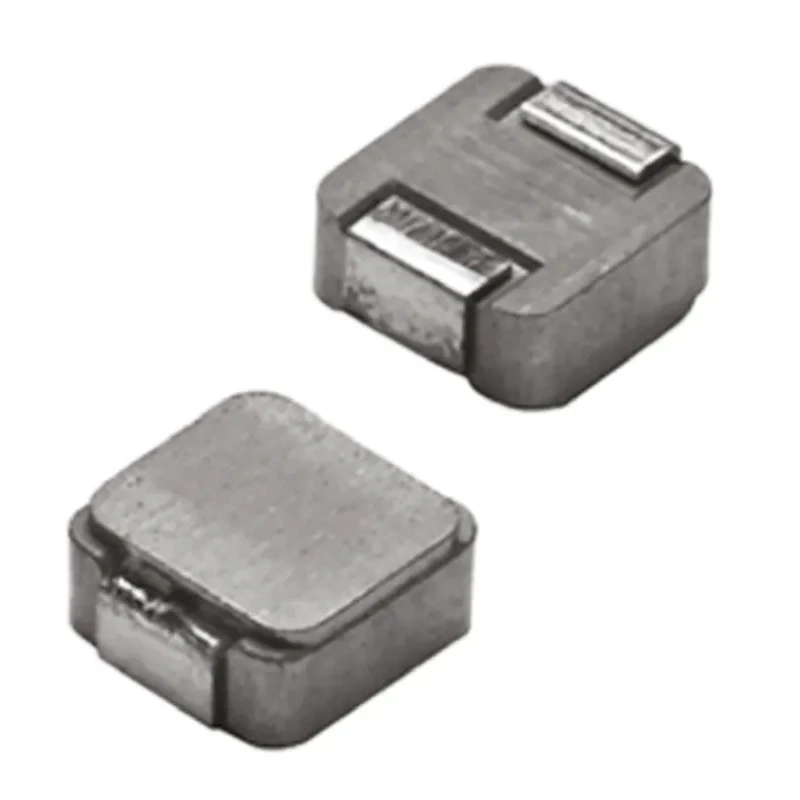

Vishay 1616 Shielded Surface Mount Inductor with Metal Composite Core 2.2 μH ±20% 2.85 A Idc IHLP1616BZER2R2M01
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2mm |
| Length | 4.45mm |
| Model | IHLP1616BZER2R2M01 |
| Depth | 4.06mm |
| Series | IHLP-1616BZ-01 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 2.2μH |
| Standards/Approvals | JEDEC, IEC, RoHS |
| Package/Case | 1616 |
| Maximum DC Current | 2.85A |
| Maximum DC Resistance | 90mΩ |
| Inductance Tolerance | ±20 % |
| Maximum Self Resonant Frequency | 39MHz |
| Inductor Construction | Shielded |
Key Features
- Metal composite core ensures reliable performance and low noise.
- High current handling up to 2.85 A without saturation.
- Compact 1616 package size suitable for surface mounting.
- Maximum DC resistance of 90 mΩ for efficiency.
- Operating temperature range from -55°C to 125°C.
- Shielded design minimizes interference and EMI.
- Maximum self-resonant frequency of 39 MHz for high-frequency applications.
- RoHS compliant with JEDEC and IEC standards.
Product Description
Vishay IHLP1616BZER2R2M01 is a 1616 shielded Surface Mount Inductor featuring a metal composite core, designed for industrial and electronic applications requiring high current and reliable inductance.
This component offers a nominal inductance of 2.2 μH with a tolerance of ±20%, capable of handling a continuous DC current of up to 2.85 A without saturation, making it ideal for power supply circuits, DC/DC converters, and battery-powered devices.
The compact 1616 package measures 4.45 mm in length, 4.06 mm in depth, and 2 mm in height, allowing for space-efficient PCB layouts in modern electronic assemblies. Its shielded construction helps reduce electromagnetic interference (EMI) and provides ultra-low buzz noise during operation.
Designed and moulded for demanding environments, it operates reliably from a minimum temperature of -55°C to a maximum of 125°C. The inductor exhibits a low DC resistance of 90 mΩ, which contributes to high efficiency in power circuits.
With an impressive maximum self-resonant frequency of 39 MHz, this inductor is suitable for use in high-frequency switching power supplies and distributed power systems. It complies with RoHS directives and meets JEDEC and IEC standards, ensuring environmental compliance and quality assurance.
Typical applications include power management systems in portable devices such as PDAs, notebooks, desktop computers, servers, as well as field programmable gate arrays (FPGAs) and power-on-layer (POL) converters. The robust and high-quality construction guarantees longevity and consistent performance in industrial, laboratory, commercial, and manufacturing environments.
Metal composite core ensures reliable performance and low noise. High current handling up to 2.85 A without saturation. Compact 1616 package size suitable for surface mounting. Maximum DC resistance of 90 mΩ for efficiency.
Operating temperature range from -55°C to 125°C. Shielded design minimizes interference and EMI. Maximum self-resonant frequency of 39 MHz for high-frequency applications. RoHS compliant with JEDEC and IEC standards. Explore Vishay's extensive range of electronic components on EnvMart for your industrial and technological needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 2.2 μH with a tolerance of ±20%.
It can handle a maximum DC current of 2.85 A without saturation.
The dimensions of this inductor are 4.45 mm in length, 4.06 mm in depth, and 2 mm in height.
The maximum DC resistance is 90 mΩ, contributing to its efficiency.
It operates reliably in a temperature range from -55°C to 125°C.
The maximum self-resonant frequency is 39 MHz, making it suitable for high-frequency applications.
It features a metal composite core, which ensures reliable performance and low noise.
Yes, it is RoHS compliant and meets JEDEC and IEC standards.
Typical applications include power management systems in portable devices, DC/DC converters, and battery-powered devices.
The inductor features a shielded construction, which minimizes electromagnetic interference (EMI).
This inductor belongs to the IHLP-1616BZ-01 series.
It comes in a compact 1616 package size, suitable for surface mounting.
