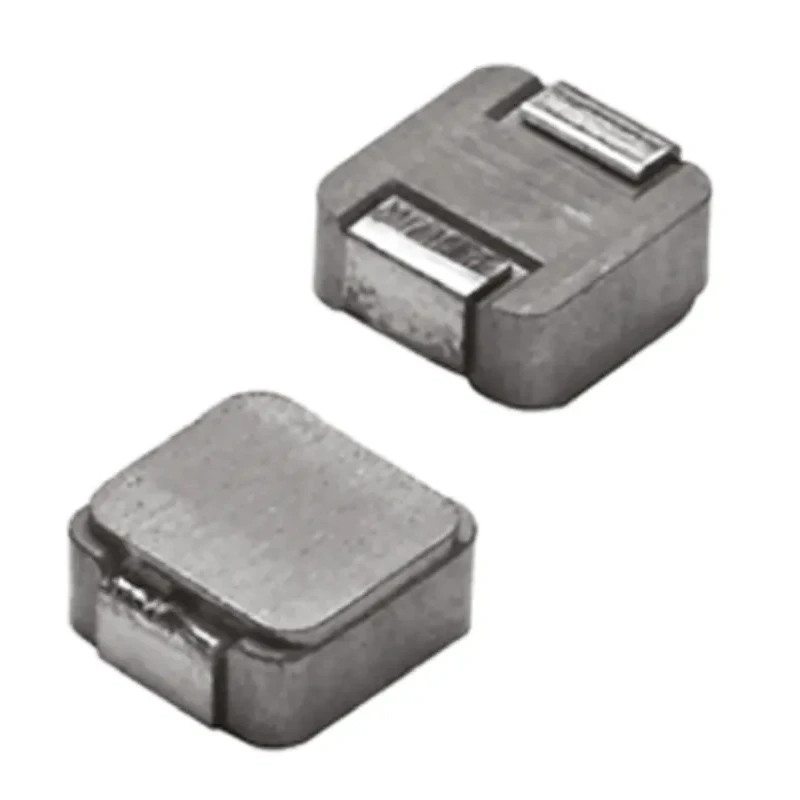

Vishay 1616 Shielded Surface Mount Inductor with Metal Composite Core 1 μH ±20% 4.5 A Idc IHLP1616BZER1R0M11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2mm |
| Length | 4.45mm |
| Model | IHLP1616BZER1R0M11 |
| Depth | 4.06mm |
| Series | IHLP-1616BZ-11 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 1μH |
| Standards/Approvals | RoHS, IEC, JEDEC |
| Package/Case | 1616 |
| Maximum DC Current | 4.5A |
| Maximum DC Resistance | 27mΩ |
| Inductance Tolerance | ±20 % |
| Maximum Self Resonant Frequency | 64MHz |
| Inductor Construction | Shielded |
Key Features
- Compact 1616 package size designed for surface mount applications.
- Constructed with a shielded wire wound inductor design to minimize electromagnetic interference.
- Maximum DC resistance of 27 milliohms ensures efficient current flow.
- Operates reliably in temperatures ranging from -55°C to 125°C.
- Core material made of metal composite for low buzz noise and high transient current tolerance.
- Supports self-resonant frequency up to 64 MHz for improved high-frequency performance.
- RoHS, IEC, and JEDEC compliant for quality and environmental standards.
- Suitable for use in high current POL converters and low profile power supplies.
Product Description
Vishay IHLP1616BZER1R0M11 is a 1616 shielded surface mount inductor equipped with a metal composite core, offering an inductance of 1 μH with ±20 % tolerance and a maximum DC current rating of 4.5 A. This inductor features a shielded wire wound construction designed to reduce electromagnetic interference, making it suitable for high-performance electronic circuits.
This compact surface mount inductor package measures 4.45 mm in length, 4.06 mm in depth, and 2 mm in height. It supports reliable operation over a wide temperature range from -55°C to 125°C and exhibits a low maximum DC resistance of 27 milliohms, contributing to minimal power loss in circuits.
The IHLP1616BZER1R0M11 achieves a maximum self-resonant frequency of 64 MHz, suitable for high-frequency applications such as DC/DC converters and power supplies. Its metal composite core construction minimizes buzz noise and withstands high transient current spikes without saturation, enhancing the reliability of the device.
This inductor is molded for mechanical robustness and complies with RoHS, IEC, and JEDEC standards, ensuring quality and environmental compliance. Applications include portable battery-powered devices, PDA/notebook/desktop/server devices, FPGA power systems, and distributed power systems requiring low-profile, high-current inductors.
Compact 1616 package for surface mount applications. Shielded wire wound inductor construction minimizes EMI. Low DC resistance of 27 milliohms for improved efficiency. Wide operating temperature range from -55°C to 125°C.
Metal composite core reduces buzz noise and supports high transient currents. Maximum self-resonant frequency of 64 MHz for high-frequency use. RoHS, IEC, and JEDEC compliant for regulatory quality. Ideal for POL converters, low profile power supplies, and battery-powered electronics.
Molded construction enhances durability and reliability.
This Vishay inductor is an excellent choice for industrial, electronic, computing, and communications equipment applications where size, efficiency, and reliability are critical. Explore more Surface Mount Inductors and other electronic components at EnvMart to meet your engineering and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 1 μH with a tolerance of ±20%.
The maximum DC current rating for the IHLP1616BZER1R0M11 is 4.5 A.
This unit measures 4.45 mm in length, 4.06 mm in depth, and 2 mm in height.
The maximum self-resonant frequency is 64 MHz, making it suitable for high-frequency applications.
It features a shielded wire wound construction designed to minimize electromagnetic interference.
The maximum DC resistance is 27 milliohms, which contributes to efficient current flow.
This model operates reliably over a temperature range from -55°C to 125°C.
It is compliant with RoHS, IEC, and JEDEC standards, ensuring quality and environmental compliance.
The core material is made of metal composite, which helps reduce buzz noise and supports high transient currents.
This inductor is suitable for high current POL converters, low profile power supplies, and portable battery-powered devices.
It belongs to the IHLP-1616BZ-11 series.
The country of origin for this model is India.
