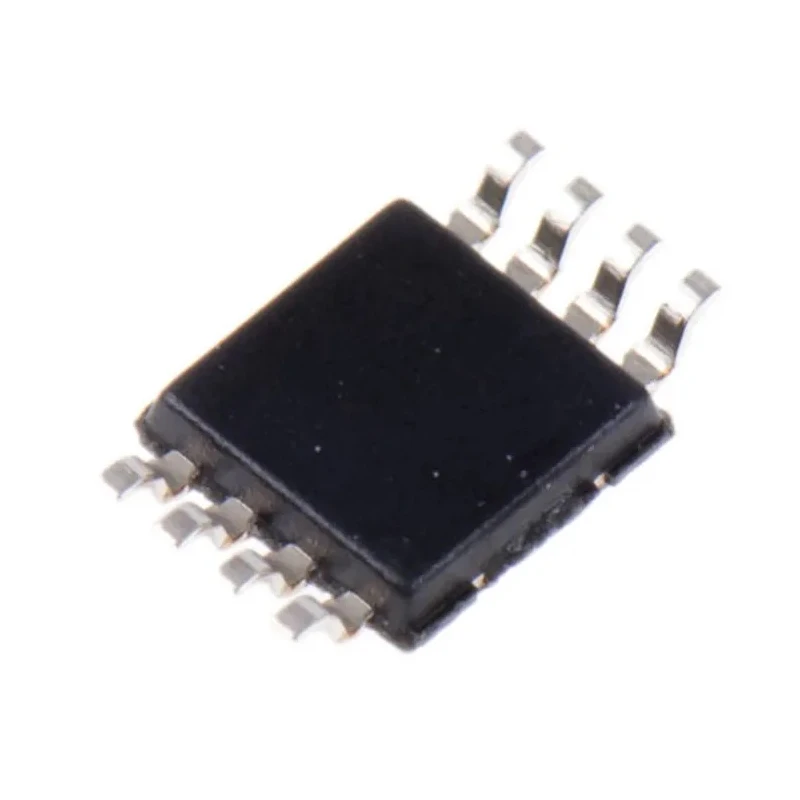

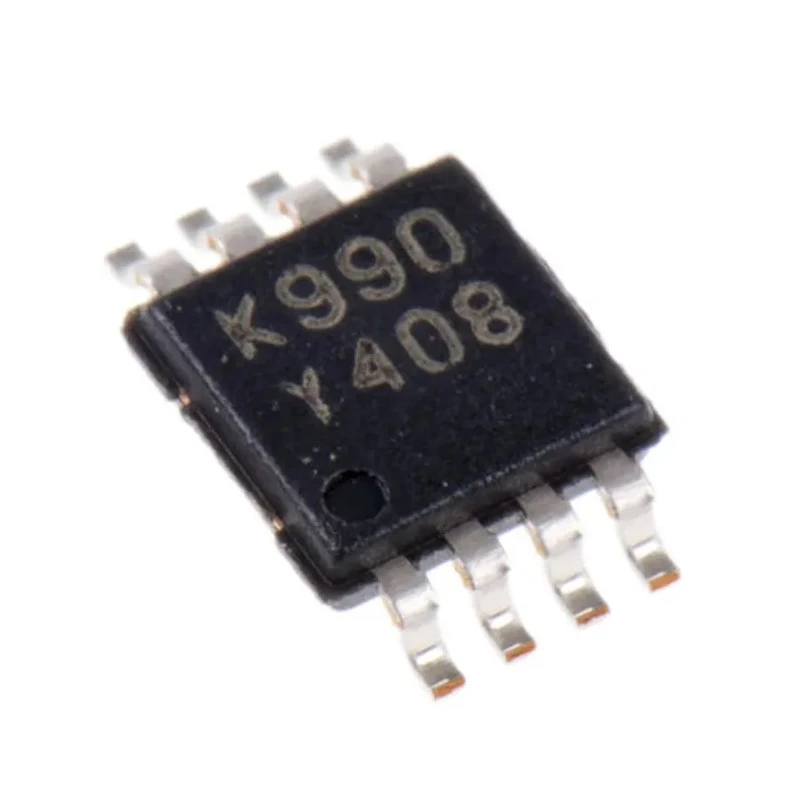

STMicroelectronics Low Power 2.5 MHz Gain Bandwidth Product Dual Channel Operational Amplifier 36 V MiniSOIC TSB572IYST
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.95mm |
| Length | 3.2mm |
| Model | TSB572IYST |
| Width | 3.1mm |
| Mount Type | Surface |
| Series | TSB572 |
| Output Current | 65mA |
| Maximum Operating Temperature | 125°C |
| Package Type | MiniSOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 36V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 2.5MHz |
| Input Bias Current | 70 nA |
| Vos - Input Offset Voltage | 2.1 mV |
| Slew Rate | 1V/μs |
| Input Offset Current | 35 nA |
| Low input bias current | 30 nA max |
Key Features
- Operates from 4 V up to 36 V supply voltage ensuring wide application range.
- Features rail-to-rail input and output to maximize dynamic signal range.
- Low input bias current with a maximum of 30 nA supports high precision circuits.
- Low power consumption at typically 380 μA increases efficiency in battery-powered devices.
- Wide temperature range from -40°C to 125°C allows industrial and automotive use.
- Slew rate of 1 V/μs allows for moderate speed signal processing.
- Complies with RoHS standards for environmental safety and AEC-Q100 automotive standard.
- Compact MiniSOIC package measuring 3.2 mm x 3.1 mm x 0.95 mm for space-constrained designs.
Product Description
The STMicroelectronics TSB572IYST is a low power, dual channel operational amplifier featuring a gain bandwidth product of 2.5 MHz. This device operates from a wide supply voltage range of 4 volts to 36 volts, making it suitable for a variety of industrial, automotive, and consumer electronics applications. It is housed in a compact 8-pin MiniSOIC package measuring 3.2 mm in length, 3.1 mm in width, and 0.95 mm in height, ideal for use in space-constrained PCB layouts.
This operational amplifier offers rail-to-rail input and output, enabling maximum signal dynamic range. It has a low typical power consumption of 380 microamperes, which enhances energy efficiency, especially in battery-powered equipment. Additionally, the device exhibits low input bias current (max 30 nA) and low input offset voltage (2.1 mV), which contribute to high precision analog signal processing.
Designed to meet the automotive AEC-Q100 standard, the TSB572IYST is reliable for use in automotive electronics. It supports operation over a wide temperature range from -40°C to 125°C and provides a slew rate of 1 V/μs suitable for moderate-speed applications. The device can supply up to 65 mA output current, enabling it to drive various loads effectively.
The TSB572IYST complies with RoHS directives, ensuring environmentally safe manufacturing practices and materials. Its compact MiniSOIC package makes it suitable for embedded systems and compact instrumentation.
This operational amplifier is commonly applied in industrial automation, automotive systems, sensor signal conditioning, data acquisition, and instrumentation. It is ideal for designs requiring low power, high precision amplification, and wide voltage operation.
Operates from 4 V to 36 V supply voltage with low power consumption. Dual channel with 2.5 MHz gain bandwidth product enables precise signal amplification. Compact 8-Pin MiniSOIC package optimized for space-limited applications.
Rail-to-rail input/output supports maximum dynamic range. Low input bias current and offset voltage for accuracy. Reliable operation over -40°C to 125°C temperature range suitable for automotive applications. Complies with RoHS and AEC-Q100 automotive standards.
Output current capability of 65 mA to drive various load types. Explore more electronic components and semiconductors such as Operational Amplifiers, comparators, and other integrated circuits at EnvMart to enhance your designs and systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 2.5 MHz.
It operates from a minimum supply voltage of 4 V up to a maximum of 36 V.
The TSB572IYST can supply up to 65 mA of output current.
The MiniSOIC package measures 3.2 mm in length, 3.1 mm in width, and 0.95 mm in height.
This operational amplifier operates reliably over a temperature range from -40°C to 125°C.
It supports surface mounting, making it suitable for various PCB layouts.
The slew rate of the TSB572IYST is 1 V/μs, suitable for moderate-speed applications.
The maximum input bias current for this model is 30 nA.
It complies with RoHS standards for environmental safety and the AEC-Q100 automotive standard.
The input offset voltage is specified at 2.1 mV.
This operational amplifier features two channels.
It is commonly applied in industrial automation, automotive systems, sensor signal conditioning, and data acquisition.
