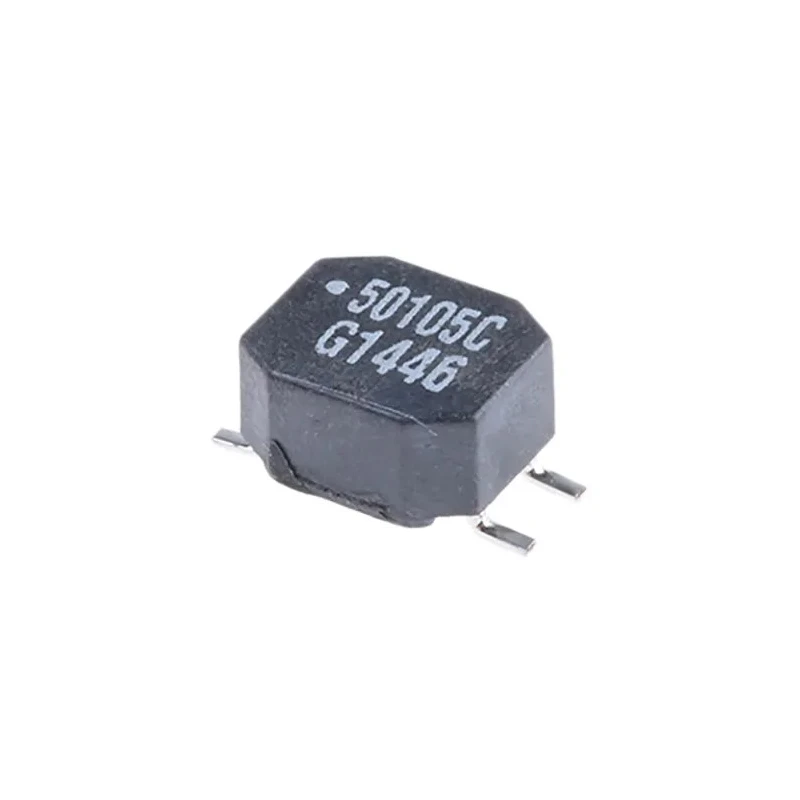

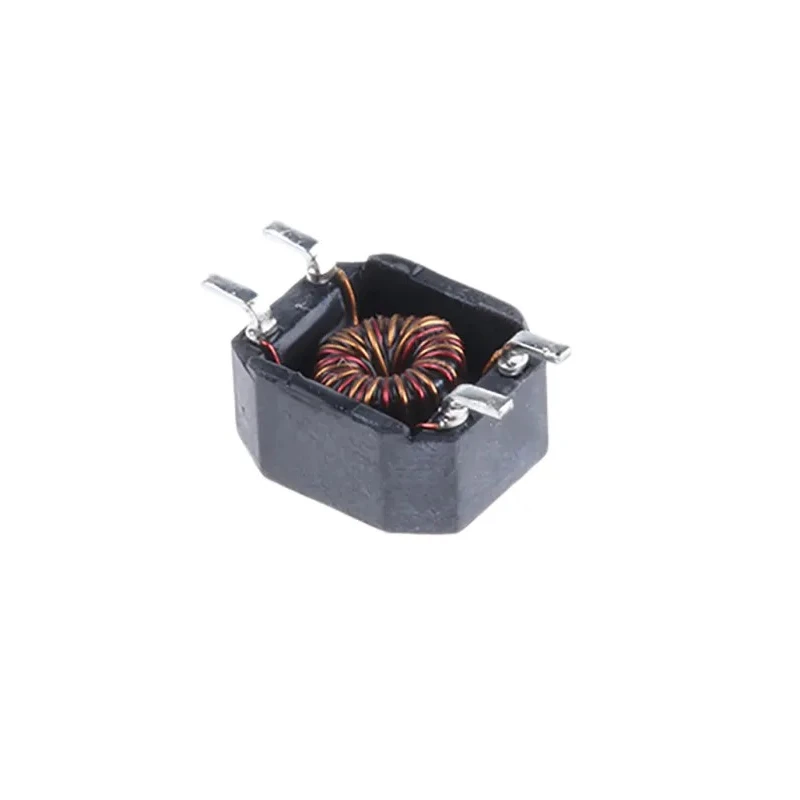

Murata Power Solutions 5000 Series Shielded Surface Mount Common Mode Choke 1 mH 700 mA 50105C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Height | 4.4mm |
| Length | 9.3mm |
| Model | 50105C |
| Depth | 5.9mm |
| Series | 5000 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Inductance | 1mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 700mA |
| Pin Count | 4 |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Compact surface mount design for efficient PCB integration.
- Shielded construction reduces electromagnetic interference.
- Rated for a maximum DC resistance of 300 milliohms.
- Wirewound inductor construction with molded encapsulation for durability.
- Operating temperature range from -40°C to 85°C.
- 4-pin termination style suitable for standard SMT applications.
- Complies with RoHS standards ensuring environmental compliance.
- Ideal for low current switching power supplies and telecom line filtering applications.
Product Description
Murata Power Solutions 50105C is a shielded surface mount common mode choke featuring 1 mH inductance and a maximum DC current rating of 700 mA. Designed for compact, high-performance filtering applications, this choke attenuates common mode noise up to 100 MHz, making it highly suitable for low current switching power supplies and telecommunications equipment.
This 5000 series component employs a wirewound inductor construction with molded encapsulation, providing robust mechanical strength and reliable performance over a wide temperature range from -40°C to 85°C. Its shielded design minimizes electromagnetic interference, ensuring cleaner signals in sensitive electronic circuits.
The 4-pin surface mount termination facilitates easy integration on printed circuit boards, while the device maintains a low maximum DC resistance of 300 milliohms to enhance efficiency. Compliance with RoHS standards underlines its environmental friendliness.
Typical applications include line filtering in switching power supplies, telecom devices, and other electronic assemblies requiring noise reduction. Its dimensions of 9.3 mm length, 5.9 mm depth, and 4.4 mm height provide a compact form factor suitable for densely populated boards.
Country of origin: China. Compact surface mount design for efficient PCB integration. Shielded construction reduces electromagnetic interference. Rated for a maximum DC resistance of 300 milliohms. Wirewound inductor construction with molded encapsulation for durability.
Operating temperature range from -40°C to 85°C. 4-pin termination style suitable for standard SMT applications. Complies with RoHS standards ensuring environmental compliance. Ideal for low current switching power supplies and telecom line filtering applications.
Series 5000 provides reliable attenuation of common mode noise up to 100 MHz. Explore our wide range of electronics components at EnvMart to find compatible parts and complementary devices to enhance your designs.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The 50105C has an inductance value of 1 mH.
This model is rated for a maximum DC current of 700 mA.
The operating temperature range for this choke is from -40°C to 85°C.
The maximum DC resistance of the 50105C is 300 milliohms.
It features a 4-pin surface mount termination style suitable for standard SMT applications.
The dimensions of this model are 9.3 mm in length, 5.9 mm in depth, and 4.4 mm in height.
It employs a wirewound inductor construction with molded encapsulation for enhanced durability.
Yes, it complies with RoHS standards, ensuring environmental compliance.
This model is ideal for low current switching power supplies and telecom line filtering applications.
The shielded construction reduces electromagnetic interference, ensuring cleaner signals in sensitive electronic circuits.
The 5000 series provides reliable attenuation of common mode noise up to 100 MHz.
The 50105C is manufactured in China.
