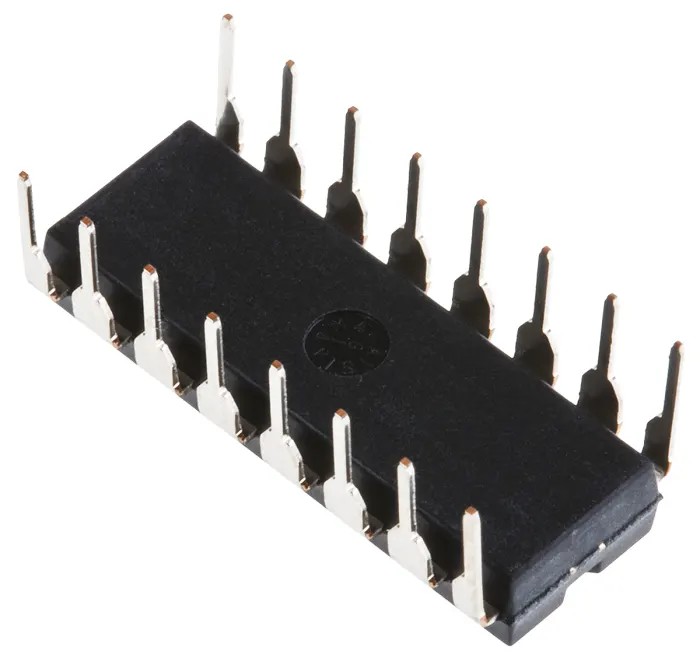

Texas Instruments 4-Channel Differential Non-Inverting Line Receiver, Through Hole, 16-Pin PDIP SN75175N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.69mm |
| Model | SN75175N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SN75175 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Receiver |
| Number Of Channels | 4 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | SN75 |
| Logic Function | Line Receiver |
| Minimum Supply Voltage | 4.75V |
| Maximum High Level Output Current | -400μA |
| Maximum Propagation Delay Time @ CL | 35ns |
| Supply Current | 70mA |
| Maximum Low Level Output Current | 16mA |
Key Features
- The device supports differential input and output for robust signal integrity.
- It operates at a minimum supply voltage of 4.75V and a maximum of 5.25V.
- The maximum propagation delay time is 35 nanoseconds, enabling fast response.
- Operating temperature range is from 0°C to 70°C for dependable performance.
- Designed to meet industrial RS-485 standards with a supply current of 70mA.
- Non-inverting logic polarity ensures signal consistency in data transmission.
- The package type is PDIP 16-pin, suitable for through-hole mounting.
Product Description
Texas Instruments SN75175N 4-Channel Line Receiver is a differential, non-inverting signal receiver designed specifically for industrial applications requiring high speed and reliable data transmission over RS-485 interfaces. It operates within a supply voltage range of 4.75V to 5.25V and supports four independent channels to receive differential input signals.
The IC features through-hole mounting in a 16-pin PDIP package, providing a robust physical connection suited for industrial electronics and control systems. It is engineered to function efficiently in ambient temperatures from 0°C to 70°C, ensuring operational stability in a variety of environments.
This line receiver offers a maximum propagation delay of 35 nanoseconds, making it ideal for high-speed communication systems in automation, instrumentation, and industrial control. The maximum supply current is 70mA, balancing speed and power consumption considerations.
The device's output currents are specified with a maximum high-level output current of -400μA and a maximum low-level output current of 16mA, designed to interface seamlessly with downstream electronics. Its differential input and output setup facilitates noise immunity and signal integrity, essential for long distance and noisy industrial environments.
Supports 4 differential input channels for versatile signal reception. Non-inverting output polarity maintains signal fidelity in RS-485 systems. Through-hole PDIP 16-pin package ensures ease of integration into PCB designs.
Operating temperature range from 0 to 70°C for industrial reliability. High-speed operation with 35ns maximum propagation delay. Supply voltage range between 4.75V and 5.25V for compatibility with standard industrial power supplies.
Robust supply current rating of 70mA for consistent performance.
This Texas Instruments SN75175N line receiver is widely used in industrial automation, control systems, data communication interfaces, and electronic equipment requiring precise and reliable line reception. It is an essential semiconductor component ensuring high data integrity and interference resistance in RS-485 communication networks.
Explore more semiconductor and line interface IC solutions at EnvMart to improve your system design and performance.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SN75175N operates within a supply voltage range of 4.75V to 5.25V.
This model supports four independent channels for receiving differential input signals.
The maximum propagation delay time for the SN75175N is 35 nanoseconds.
It operates effectively within an ambient temperature range of 0°C to 70°C.
The device features a differential output type, ensuring robust signal integrity.
The maximum supply current for this model is 70mA.
This line receiver comes in a PDIP 16-pin package, suitable for through-hole mounting.
The SN75175N has a differential input type, which enhances noise immunity.
The maximum high-level output current is -400μA.
The minimum supply voltage required for this line receiver is 4.75V.
This model is widely used in industrial automation, control systems, and data communication interfaces.
The maximum low-level output current for this device is 16mA.
