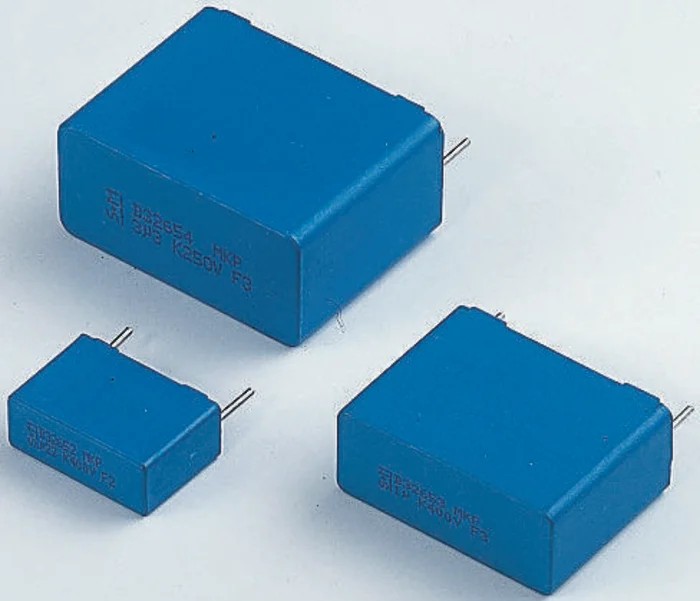

TDK Film Capacitor 100 nF 500V AC 1.25 kV DC Through Hole B32654A7104K189

TDK B32654A7104K189 Film Capacitor is a high-quality passive electronic component designed for through hole mounting. Featuring a capacitance of 100 nF, rated at 500V AC and 1.25 kV DC, this capacitor is ideal for high pulse strength applications.

The capacitor utilizes wound capacitor technology with an internal series connection for voltage ratings above 1250V DC. It is encapsulated in a flame retardant plastic case compliant with UL 94 V-0 standards, sealed with epoxy resin to ensure robust mechanical and environmental protection.

Typical uses include TV S-correction circuits, TV flyback transformers, and electronic ballast circuits where small physical size combined with reliable performance is critical. The component offers a maximum operating temperature of 100°C and features a lead pitch of 27.5mm, making it suitable for standard PCB layouts.

This component conforms to the automotive industry standard AEC-Q200 Rev D, assuring reliability in demanding automotive electronic environments. It meets UL and RoHS standards, confirming adherence to international safety and environmental regulations.

High pulse strength for demanding electronic circuits. Encapsulation provides flame retardant protection and mechanical robustness. Compact dimensions allow efficient PCB space usage. Reliable operation up to 100°C ambient temperature.

Designed for through hole mounting with 0.8mm lead diameter. Suitable for automotive and commercial electronics requiring robust capacitors. Complies with UL and RoHS certifications ensuring safety and environment-friendliness.

This TDK film capacitor is perfect for industrial, automotive, electronic manufacturing, and HVAC control applications where stability, reliability, and safety are paramount. For further selections, explore the Film Capacitor category on EnvMart to find complementary products and alternative specifications.
