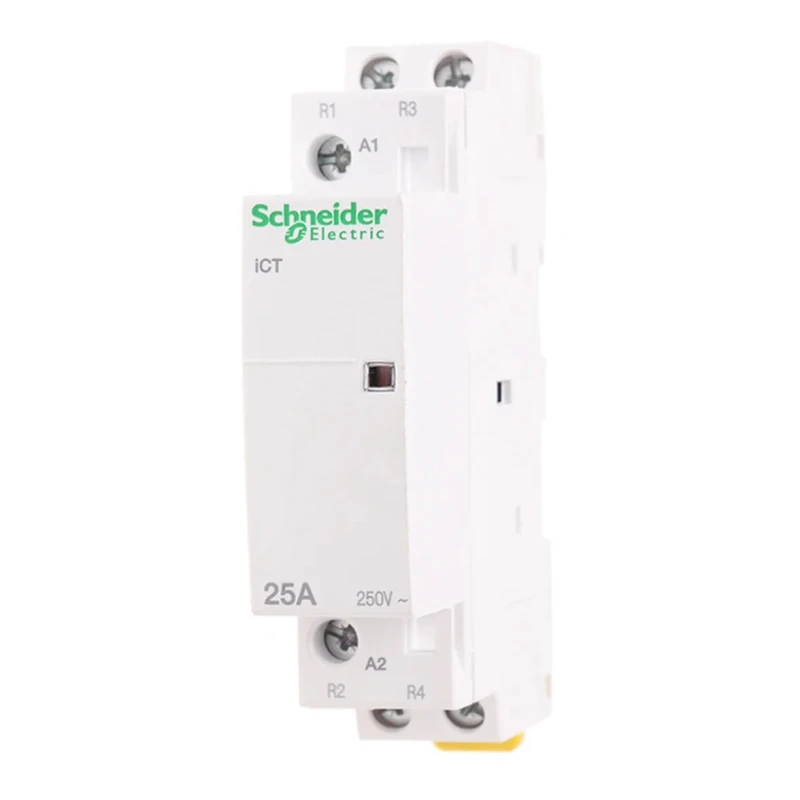

Schneider Electric Acti9 iCT Contactor 230V AC Coil 2-Pole 25A 1.2W 240V 2 NC 250V AC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 18mm |
| Model | Acti9 |
| Depth | 68mm |
| Width | 81mm |
| Mount Type | DIN Rail |
| Series | Acti9 iCT |
| Power Rating | 1.2W |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 2 |
| Standards/Approvals | RoHS, IEC/EN 61095 |
| Contact Voltage | 250V ac |
| Coil Voltage | 230V ac |
| Normal State Configuration | 2 NC |
| Contact Current | 25A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NC |
| Operational Current Ie | 25A |
| Control Circuit Voltage Uc | 240V |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 2P |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| Better World Verification | Byggvarubedömningen |
| Class-2 insulation | continuous safety for operators and unqualified personnel |
Key Features
- Equipped with a 230V AC coil and 2 poles for reliable switching.
- Supports a contact current rating of 25A with a 250V AC contact voltage.
- Includes 2 normally closed (2 NC) auxiliary contacts for added switching capability.
- Designed for DIN rail mounting with screw terminal connections.
- Operates between -5°C to 60°C for diverse environmental conditions.
- Compact dimensions of 18mm length, 81mm width, and 68mm depth.
- Power rating of 1.2W at 240V ensures efficient coil consumption.
- Complies with RoHS and IEC/EN 61095 standards for safety and quality.
Product Description
Schneider Electric A9C20736 Acti9 iCT Contactor is engineered for reliable power switching in industrial and commercial motor control applications. Featuring a 230V AC coil and a 2-pole design, this contactor supports switching currents up to 25 amps at 250V AC.
This compact device measures 18mm in length, 81mm in width, and 68mm in depth, allowing efficient panel installation on DIN rails with screw terminals for secure connections. The integrated 2 normally closed auxiliary contacts provide additional control flexibility.
Designed for operational temperatures ranging from -5°C to 60°C, it ensures dependable performance in various environments. The coil consumes 1.2 watts at 240V, promoting energy-efficient operation. The product conforms to RoHS and IEC/EN 61095 safety standards, guaranteeing compliance and reliability.
Class-2 insulation offers continuous protection for both operators and unqualified personnel, complementing the IP20 finger-safe terminals marked with both North American and International standards for safety and usability.
Typical applications include motor control circuits within automation and control gear, manufacturing systems, and electrical distribution frameworks in industrial, commercial, and HVAC settings. The compact design facilitates mounting alongside other components, with spacers recommended when multiple contactors are installed on the same DIN rail to ensure heat dissipation and optimal operation.
Equipped with a 230V AC coil and 2 poles for reliable switching. Supports a contact current rating of 25A with a 250V AC contact voltage. Includes 2 normally closed (2 NC) auxiliary contacts for added switching capability.
Designed for DIN rail mounting with screw terminal connections. Operates between -5°C to 60°C for diverse environmental conditions. Compact dimensions of 18mm length, 81mm width, and 68mm depth. Power rating of 1.2W at 240V ensures efficient coil consumption.
Complies with RoHS and IEC/EN 61095 standards for safety and quality. Class-2 insulation provides continuous safety for operators and unqualified personnel. IP20 finger-safe terminals with North American and International terminal markings.
Explore the Schneider Electric catalog on EnvMart for reliable Contactors and industrial automation components tailored to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this contactor is 230V AC.
It supports a maximum contact current rating of 25A.
This model has dimensions of 18mm in length, 81mm in width, and 68mm in depth.
It is designed for DIN rail mounting with screw terminal connections.
It operates effectively between -5°C and 60°C.
This contactor includes 2 normally closed (2 NC) auxiliary contacts.
It complies with RoHS and IEC/EN 61095 standards for safety and quality.
The power rating of the coil is 1.2W at 240V.
The contact voltage rating is 250V AC.
It features Class-2 insulation, providing continuous safety for operators and unqualified personnel.
It is designed for motor control applications within industrial and commercial settings.
It has IP20 finger-safe terminals with both North American and International terminal markings.
