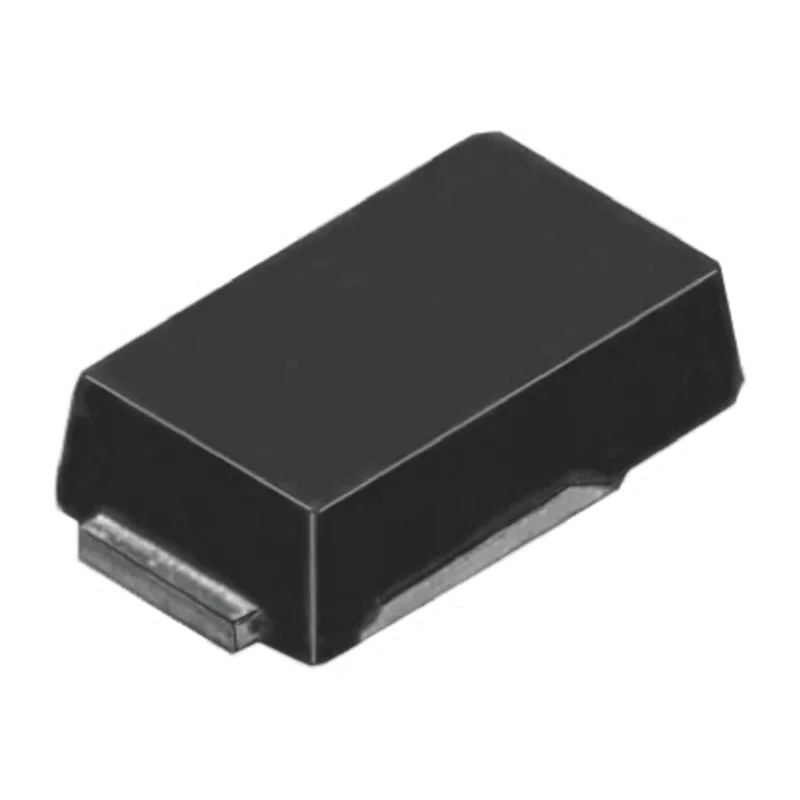

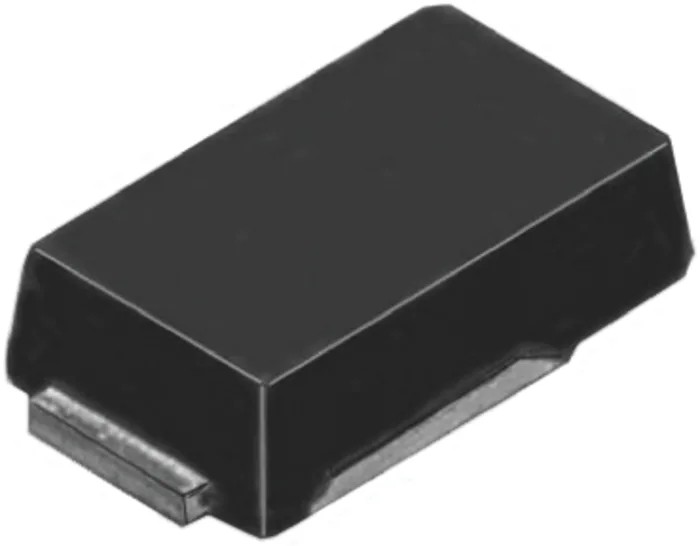

Vishay Schottky Diode 30 V 1.5 A 2-Pin SMP Surface Mount SS1P3L-M3/84A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.15mm |
| Length | 3.61mm |
| Model | SS1P3L-M3/84A |
| Width | 2.18mm |
| Mount Type | Surface |
| Series | SS1P3L |
| Maximum Operating Temperature | 150°C |
| Package Type | SMP |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 0.38V |
Key Features
- This diode features a maximum continuous forward current of 1.5 A.
- Peak reverse repetitive voltage is rated at 30 V for reliable blocking capability.
- The maximum forward voltage drop is 0.38 V ensuring efficient conduction.
- Peak non-repetitive forward surge current is 50 A, accommodating transient current spikes.
- Operating temperature range spans from -55°C to 150°C, suitable for diverse environments.
- Its compact dimensions are 3.61 mm length, 2.18 mm width, and 1.15 mm height.
- The diode configuration is single with 2 pins designed for surface mount technology (SMT).
- Maximum peak reverse current is low at 200 μA, enhancing performance in power sensitive circuits.
Product Description
The Vishay SS1P3L-M3/84A is a Schottky diode that offers high efficiency with its low forward voltage drop and fast switching capabilities. Designed in a compact 2-pin SMP surface mount package, it supports a continuous forward current of 1.5 A and a peak reverse voltage of 30 V, making it suitable for power rectification and switching applications.
This diode operates effectively over a wide temperature range from -55°C to 150°C, providing robust performance in industrial, automotive, and consumer electronics environments. Its minimal reverse leakage current of 200 μA enhances efficiency in power circuits.
Physical dimensions of 3.61 mm in length, 2.18 mm width, and 1.15 mm height enable high-density PCB designs essential in modern electronics. The maximum forward voltage of 0.38 V ensures low conduction losses, which is critical for power saving applications.
The peak non-repetitive surge current rating of 50 A allows handling of transient current peaks without damage. The single diode configuration with 2 pins and the surface mount type package facilitates automated manufacturing and high-volume production.
This Schottky diode is widely used in industrial automation, power supplies, switching regulators, and fast switching circuits within laboratory and manufacturing setups. It is manufactured to meet industry standards though it does not carry specific certifications.
Maximum continuous forward current of 1.5 A supports moderate power loads. Low forward voltage drop of 0.38 V minimizes power dissipation. Operating temperature range from -55°C to 150°C ensures reliability. Peak reverse voltage of 30 V suits low-voltage power applications.
Compact SMP package dimensions allow space-saving on PCBs. Fast switching characteristics optimize high-frequency performance. Peak non-repetitive surge current rating provides transient protection. Low peak reverse current enhances efficiency in power circuits.
Single diode configuration simplifies circuit design and layout. Discover more Schottky Diodes and rectifiers from Vishay at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the Vishay SS1P3L-M3/84A is 1.5 A.
This model has a peak reverse repetitive voltage rating of 30 V.
The dimensions of this diode are 3.61 mm in length, 2.18 mm in width, and 1.15 mm in height.
The maximum forward voltage drop is 0.38 V, ensuring efficient conduction.
The operating temperature range spans from -55°C to 150°C, making it suitable for diverse environments.
The peak non-repetitive forward surge current rating is 50 A, accommodating transient current spikes.
The maximum peak reverse current is low at 200 μA, enhancing performance in power-sensitive circuits.
This diode is packaged in a compact 2-pin SMP surface mount configuration.
The diode configuration is single, designed for surface mount technology (SMT).
It is widely used in industrial automation, power supplies, switching regulators, and fast switching circuits.
This model belongs to the SS1P3L series.
The low forward voltage drop of 0.38 V minimizes power dissipation, which is critical for power-saving applications.
