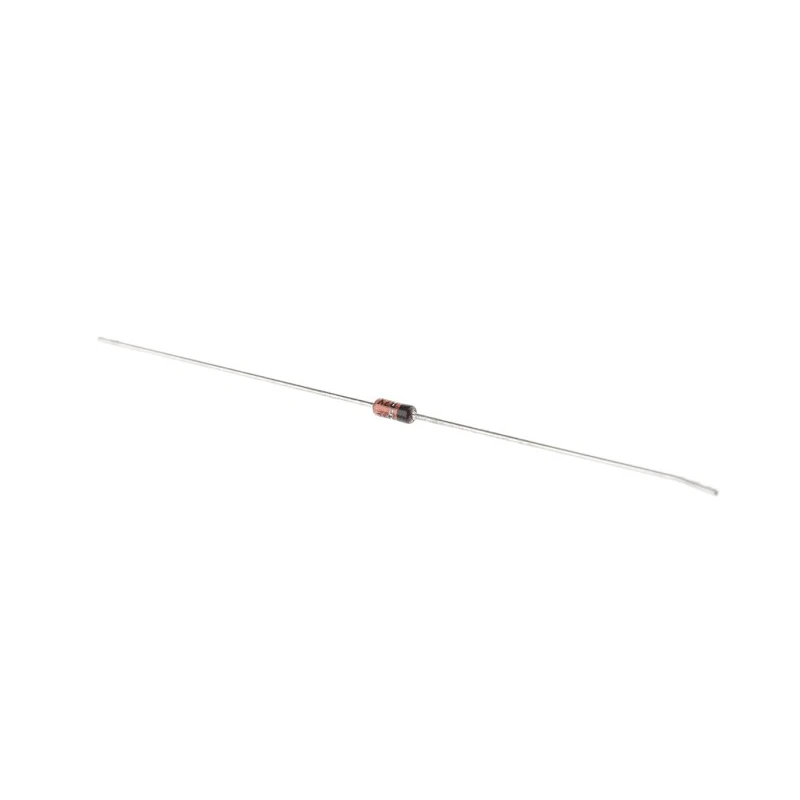

Vishay 1.8 V 500 mW Through Hole 2-Pin DO-35 Zener Diode, Single, 6% Tolerance BZX55C8V2-TAP

Vishay BZX55C8V2-TAP is a single diode Zener diode designed for voltage regulation applications featuring a nominal Zener voltage of 8.2 V and a power dissipation capability of 500 mW. Packaged in a compact 2-pin DO-35 form factor, it is ideal for through hole mounting on printed circuit boards.

This Zener diode provides very sharp reverse characteristic and very low reverse current, making it suitable for precision voltage stabilization tasks in electronic circuits. Its tolerance of ±6% ensures consistent voltage regulation across a range of operating conditions.

The diode operates reliably within a temperature range from -65°C to 175°C, making it applicable in automotive, industrial, and commercial electronics requiring stable voltage control. The device is AEC-Q101 qualified, confirming its suitability for automotive industry standards.

Its low noise and high stability characteristics make it ideal for use in laboratory and manufacturing circuits where precise voltage regulation is critical. The diode’s maximum Zener impedance of 7 ohms contributes to its effectiveness in voltage regulation applications.

Applications include protection circuits, reference voltage sources, and voltage regulation in power supplies and signal conditioning circuits. The compact DO-35 package facilitates easy integration into through hole PCB designs.

Set contains a single Vishay BZX55C8V2-TAP Zener diode packed ready for insertion. This device enhances circuit reliability and voltage control in diverse industrial, automotive, laboratory, and commercial environments.

Features a nominal Zener voltage of 8.2 V providing voltage regulation. Has a maximum power dissipation of 500 mW suitable for small signal regulation. Utilizes through hole mount type with a 2-pin DO-35 package. Offers excellent stability with low reverse leakage current of 100 nA.

Operational temperature range from -65°C to 175°C ensuring wide usage in various environments. Designed as a voltage regulator with a Zener impedance of 7 Ohms for effective voltage control. Compliant with automotive standard AEC-Q101 for reliable automotive applications.
