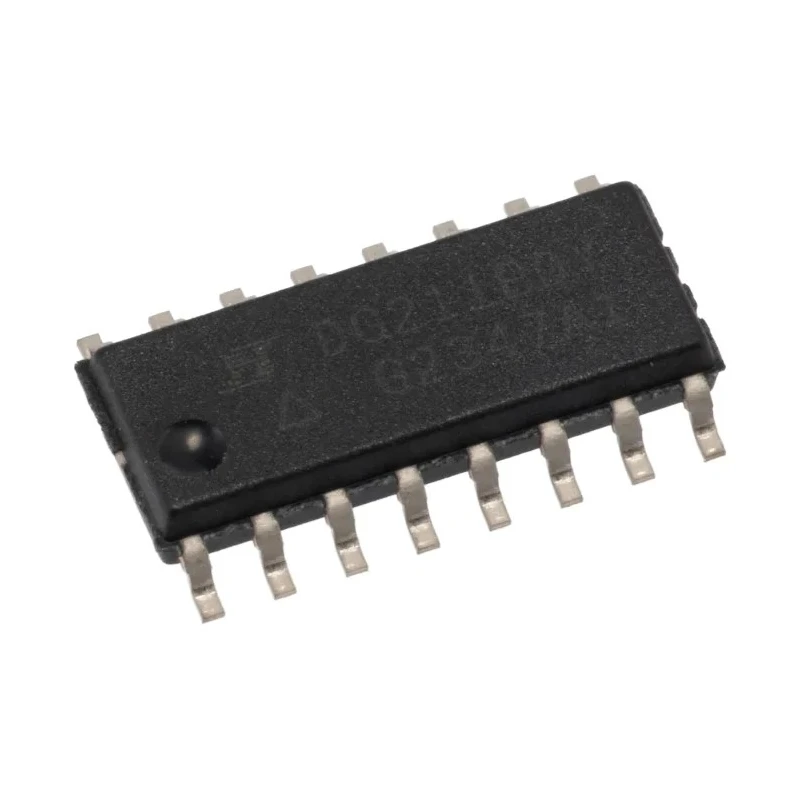

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG211BDY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG211BDY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG211B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- Operates with wide supply voltages from -22V to +22V.
- Maximum on-state resistance of 200Ω provides predictable signal attenuation.
- Contains four independent single-pole single-throw (SPST) elements.
- Compatible with CMOS/TTL logic for straightforward control.
- Operating temperature range from -40°C to 85°C for diverse environments.
- Compact 16-pin SOIC package suitable for surface mounting on PCBs.
- Ideal for audio signal path selection and multiplexing low-frequency measurement channels.
- Widely used in mixed-signal control logic, test equipment, and industrial sensor switching.
Product Description
Vishay DG211BDY-E3 analogue switch is a highly reliable semiconductor device featuring four CMOS quad SPST analogue switch elements integrated into a compact 16-pin SOIC package with surface mount technology.
Designed to operate from bipolar supply rails of -22V to +22V, it enables flexible use in various mixed-signal electronic circuits requiring analogue signal routing and control. The device offers compatibility with CMOS and TTL logic levels, simplifying integration into diverse digital control systems.
The maximum on-state resistance of 200Ω ensures minimal signal degradation and predictable performance in audio signal path selection, low-frequency measurement multiplexing, and other precision switching applications.
With an operating temperature range from -40°C to +85°C, the DG211BDY-E3 performs reliably in both typical industrial and laboratory environments. The package measures 10mm (length) × 4mm (width) × 1.55mm (height), fitting compact printed circuit boards.
Applications spread across industrial systems, test equipment, consumer electronics, and sensors where multiple independent analogue switches are necessary. However, this component is not certified for automotive grade use.
Wide operating supply voltage range from -22V to +22V. Four independent SPST switch elements integrated. Compatible with CMOS/TTL compatible logic control. Compact SOIC-16 package designed for surface mount PCBs. RoHS compliant for regulatory conformance.
Typical uses in audio, test equipment, sensors, and industrial electronics. Explore more Vishay semiconductor products for your electronic switch and multiplexing needs at EnvMart.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 22V.
It operates within a temperature range of -40°C to 85°C.
This unit contains four independent single-pole single-throw (SPST) elements.
The maximum on-state resistance is 200Ω, ensuring predictable signal attenuation.
It is compatible with CMOS and TTL logic levels, allowing for straightforward control.
The package dimensions are 10mm in length, 4mm in width, and 1.55mm in height.
It features a surface mount type suitable for printed circuit boards (PCBs).
Yes, this model is RoHS compliant, ensuring regulatory conformance.
It is widely used in audio signal path selection, multiplexing low-frequency measurement channels, and industrial sensor switching.
The device has a pin count of 16.
The country of origin for this model is India.
This analogue switch is part of the DG211B series.
