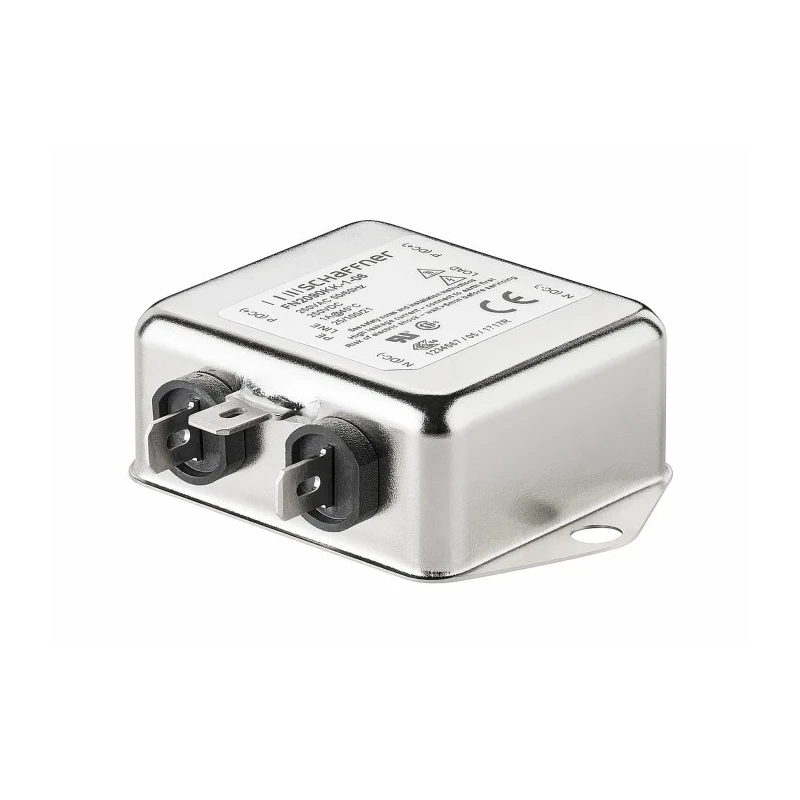

Schaffner Chassis Mount EMI Filter 3 A 250V ac/dc 0Hz to 400 Hz Fast-On 1 Phase FN2090
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schaffner |
| Height | 30.3mm |
| Length | 54mm |
| Model | FN2090 |
| Depth | 85mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 0, 400Hz |
| Series | FN2090 |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 2 |
| Resistance | 470kΩ |
| Capacitance | 330nF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| Number of Phases | 1 |
| Leakage Current | 2μA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 14mH |
| Termination Style | Fast-On |
Key Features
- Designed for fast and easy chassis mounting with Fast-On termination style.
- Two-stage filter providing very high differential and common-mode attenuation.
- Maximum operating temperature of 100°C with a minimum operating temperature of -25°C.
- Capacitance of 330 nF and inductance of 14 mH for effective noise suppression.
- Leakage current of 2 μA ensures efficient EMI filtering.
- Resistance rated at 470 kΩ for reliable operation.
- Suitable for electrical and electronic equipment requiring noise suppression.
Product Description
Schaffner FN2090B-3-06 is a robust chassis mount EMI filter designed for industrial and electronic applications demanding high performance noise reduction. It is rated for a maximum current of 3 A and can handle voltages up to 250V ac/dc with operating frequencies ranging from DC (0 Hz) up to 400 Hz, making it suitable for various single-phase power line filtering tasks.
This two-stage EMI filter features a Fast-On termination style, enabling quick and secure chassis mounting. With capacitance valued at 330 nF and inductance of 14 mH, the FN2090 series provides exceptional differential and common-mode noise attenuation essential for sensitive equipment and environments.
The filter operates reliably in harsh conditions with a temperature range from -25°C to 100°C and maintains a minimal leakage current of 2 μA, ensuring minimal power loss and improved safety. Its physical dimensions of 30.3 mm height, 85 mm depth, and 54 mm length make it compact and easy to incorporate into various equipment designs.
Typical applications include electrical and electronic equipment, consumer devices, building automation, and medical equipment where electromagnetic noise control is critical. This filter helps enhance the performance and lifespan of connected devices by effectively mitigating interference.
Fast and easy chassis mounting with Fast-On terminals for secure installation. Two-stage filter design achieving very high differential and common-mode attenuation. Reliable operation across wide temperature ranges from -25°C up to 100°C.
Low leakage current of 2 μA minimizes power loss and interference. Compact size and chassis mount form factor suit diverse industrial and commercial uses. Capacitance of 330 nF and inductance of 14 mH provide enhanced noise filtering capability.
Resistance of 470 kΩ supports stable electrical characteristics and performance.
Schaffner EMI Filters are known for their quality and durability, ideally suited for industrial, laboratory, and commercial environments. Explore more Schaffner power line filter products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMI filter is 3 A.
It can handle voltages up to 250V ac/dc.
The operating frequency range is from DC (0 Hz) to 400 Hz.
The dimensions are 30.3 mm in height, 54 mm in length, and 85 mm in depth.
This model features a Fast-On termination style for easy chassis mounting.
The capacitance is 330 nF and the inductance is 14 mH.
The operating temperature range is from -25°C to 100°C.
The leakage current is 2 μA, ensuring minimal power loss.
The resistance is rated at 470 kΩ for reliable operation.
It features a two-stage filter design for high noise attenuation.
It is suitable for electrical and electronic equipment, consumer devices, building automation, and medical equipment requiring noise suppression.
