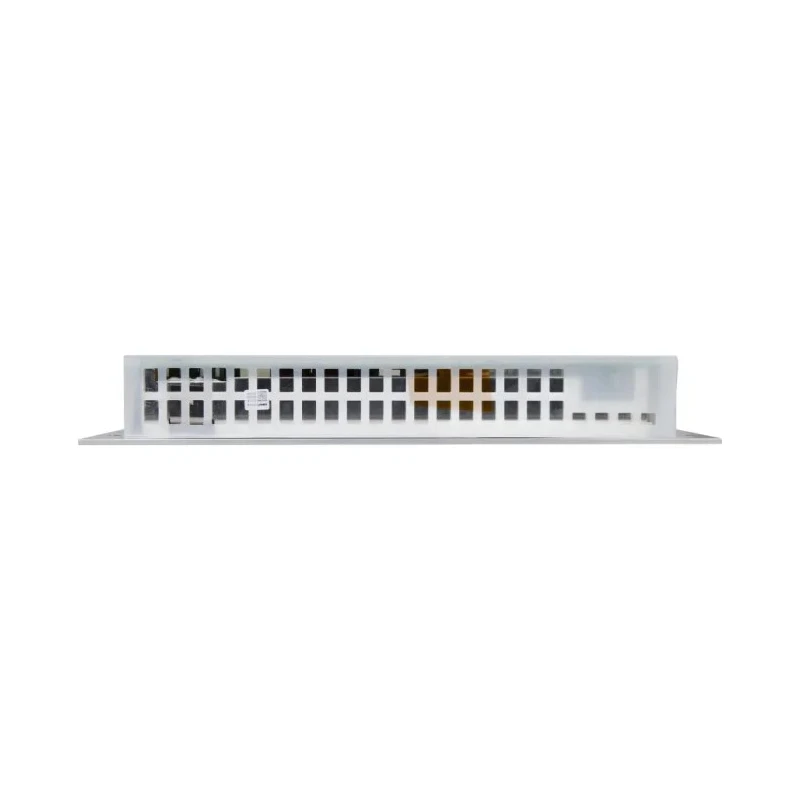

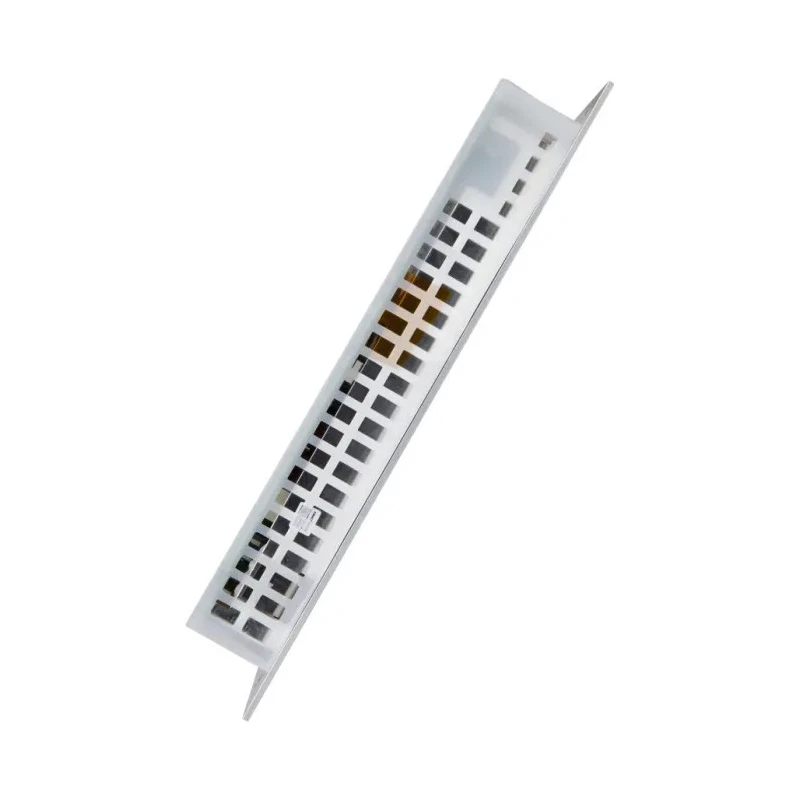

Osram IP20 2 Output LED Driver, 150 V, 50 V, 1.05 kW, 1600 mA, 400 mA Non-Dimmable Linear / Area Constant Current

Free Delivery in India | Lowest Global Shipping Charges

Osram IP20 2 Output LED Driver, 150 V, 50 V, 1.05 kW, 1600 mA, 400 mA Non-Dimmable Linear / Area Constant Current

Name: Osram IP20 2 Output LED Driver, 150 V, 50 V, 1.05 kW, 1600 mA, 400 mA Non-Dimmable Linear / Area Constant Current
Brand: Osram
SKU: 174927



Category LED Driver Brand Osram Condition New

Specifications

Country of Origin	Bulgaria
Brand	Osram
Model	IP20
IP Rating	IP20
Mount Type	Screw
Series	OPTOTRONIC FIT D NFC HC B
Configuration	Enclosed
Sub Type	Linear / Area Constant Current
Operating Modes	Constant Current
Number of outputs	2
Maximum Output Power	1.05kW
Input Voltage	220, 400V
Output Voltage	150, 50V
Power Dissipation	30W
Dimming Operation	Non-Dimmable
Primary Type	AC-DC
Driver Current	1600, 400mA
LED Voltage	150, 550V

Key Features

Supports dual output voltages of 150 V and 50 V with driver currents of 1600 mA and 400 mA respectively.
Maximum output power rating of 1.05 kW for reliable LED performance.
Operates on input voltages of 220 V and 400 V AC with screw mount type for secure installation.
IP20 rated enclosed AC-DC driver designed for linear and area constant current LED applications.
Highly efficient operation with power dissipation of 30 W and an expected lifetime of up to 100,000 hours at 65 °C.
Complies with EN 61547, EN 61347-2-13, EN 61347-1, EN 61000-3-3, EN 61000-3-2, CE, and EN 62384 standards for safety and electromagnetic compatibility.
Ideal for industrial, commercial, and architectural LED lighting requiring precise current control.
Non-dimmable operation ensures consistent LED brightness without flicker.

Product Description

Osram IP20 LED Driver OT-FIT-1000/220-400/1A6-D-NFC-HC-2CH-B-L is a dual-output, non-dimmable linear constant current LED driver designed for industrial and commercial LED lighting applications. This driver supports output voltages of 150 V and 50 V with current ratings of 1600 mA and 400 mA, respectively, making it suitable for LEDs with varying voltage requirements.

Operating at input voltages of 220 V and 400 V AC, it features a screw mount type installation with an IP20 rated enclosed design, providing protection against solid objects but not water ingress, suitable for indoor electrical installations.

The driver delivers a maximum output power of 1.05 kW and dissipates about 30 W of power, combining high efficiency with durability. With a long operational lifetime of up to 100,000 hours at a case temperature of 65 °C and a maximum failure rate of 10%, this product offers lasting reliability for challenging environments.

Conforming to multiple European standards including EN 61547 for EMC, EN 61347-2-13 and EN 61347-1 for lamp control gear, and CE marking ensures compliance for safety and electromagnetic compatibility. Its constant current operating mode guarantees stable current flow to LEDs, preventing flicker and enabling consistent light output.

Dual output voltages at 150 V and 50 V with 1600 mA and 400 mA driver current. Non-dimmable control for steady LED illumination. Designed for linear and area constant current LED applications. Enclosed screw mount AC-DC configuration compliant with IP20 protection.

High efficiency with a maximum output power of 1.05 kW. Robust lifetime rating up to 100,000 hours at Tc = 65 °C. Conforms to European electrical and safety standards. Ideal for architectural, commercial, and industrial LED lighting projects requiring reliable consistent current regulation.

This product is manufactured in Bulgaria and is part of the OPTOTRONIC FIT D NFC HC B series by Osram. It is suited for use in industrial automation, commercial lighting installations, and architectural LED setups where precise current control and high reliability are critical.
