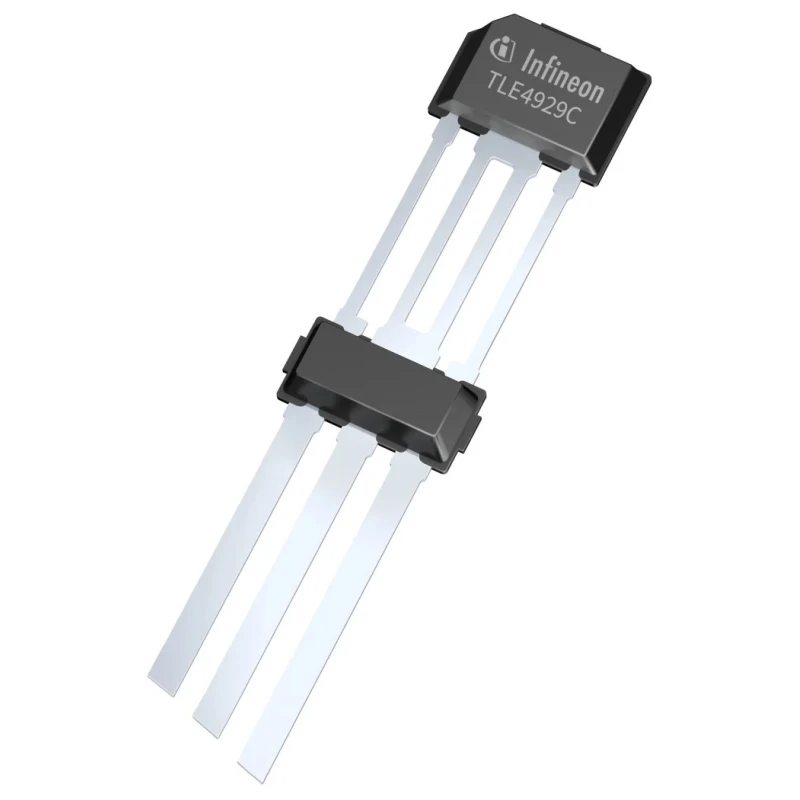

Infineon Through Hole Hall Effect Sensor, Analogue, I2C, 2.8 V - 3.5 V Supply, SSO Package, 3-Pin TLE4929CXHAM18NHAMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | TLE4929CXHAM18NHAMA1 |
| SENSITIVITY | 7.7LSB/mT |
| Technology | Analogue |
| Sensor Type | Hall Effect |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | TLE4929 |
| Maximum Operating Temperature | 125°C |
| Package Type | SSO |
| Minimum Operating Temperature | -40°C |
| Interface Type | I2C |
| Pin Count | 3 |
| Maximum Supply Voltage | 3.5V |
| Minimum Supply Voltage | 2.8V |
| Supply Current | 3.4mA |
| Magnetic Type | Omnipolar |
Key Features
- Operates within a supply voltage range of 2.8 V to 3.5 V.
- Features a sensitivity of 7.7 LSB/mT for precise magnetic field detection.
- Suitable for operating temperature range from -40°C to 125°C.
- Low supply current consumption of 3.4 mA enhances energy efficiency.
- 3-pin configuration ensures ease of integration into circuits.
- Provides magnetic stray-field robustness and programmable switching threshold for accuracy.
- Ideal for industrial applications such as crankshaft position sensing and speed detection.
- No automotive standards compliance, optimized for reliable industrial use.
Product Description
The Infineon TLE4929CXHAM18NHAMA1 is a through-hole mounting Hall Effect sensor featuring an analogue sensing technology with I2C interface and SSO package. It operates efficiently in a supply voltage range of 2.8 V to 3.5 V and provides accurate magnetic field detection with a sensitivity of 7.7 LSB per millitesla. Its compact dimensions of 2.9 mm length, 1.6 mm width, and 1.1 mm height, along with low supply current consumption of 3.4 mA, make it suitable for integration into various electronic designs.
This sensor is engineered to withstand harsh industrial environments with an operating temperature range from -40°C to 125°C and enhanced magnetic stray-field robustness based on a differential sensing principle. The device supports direction detection and includes a Stop-Start-Algorithm, making it ideal for applications in hybrid powertrains, accurate speedometers, and other high-precision speed-sensing or position-sensing solutions in industrial contexts.
The programmable switching threshold adds versatility by enabling customization for additional accuracy in magnetic switching points. The 3-pin through-hole mounting and omnipolar magnetic sensing capability provide backward compatibility and ease of installation. Although not certified to automotive standards, it is optimized for demanding industrial and manufacturing applications requiring reliable motion sensing.
Operates between 2.8 V and 3.5 V supply voltage. Sensitivity is 7.7 LSB/mT for precise detection. Compact SSO package with dimensions 2.9 mm x 1.6 mm x 1.1 mm. Operates reliably in -40°C to 125°C temperature range. Low current consumption of 3.4 mA ensures efficiency.
Supports omnipolar magnetic sensing and direction detection. Ideal for industrial motion sensor IC applications. Programmable switching threshold for enhanced accuracy. Designed for industrial use in hybrid powertrain and speed sensing.
Choose the Infineon TLE4929CXHAM18NHAMA1 Hall Effect Sensor for industrial-grade magnetic sensing solutions. Explore more sensors and components in EnvMart's comprehensive electronics category.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a supply voltage range of 2.8 V to 3.5 V.
The sensitivity is 7.7 LSB/mT, allowing for precise magnetic field detection.
It can operate in temperatures ranging from -40°C to 125°C.
This sensor features an I2C interface for communication.
The dimensions are 2.9 mm in length, 1.6 mm in width, and 1.1 mm in height.
The supply current consumption is 3.4 mA, enhancing energy efficiency.
It has a 3-pin configuration for ease of integration into circuits.
This model supports through-hole mounting.
It is ideal for industrial applications such as crankshaft position sensing and speed detection.
Yes, it includes a programmable switching threshold for enhanced accuracy in magnetic switching points.
It supports omnipolar magnetic sensing and direction detection.
The country of origin is India.
