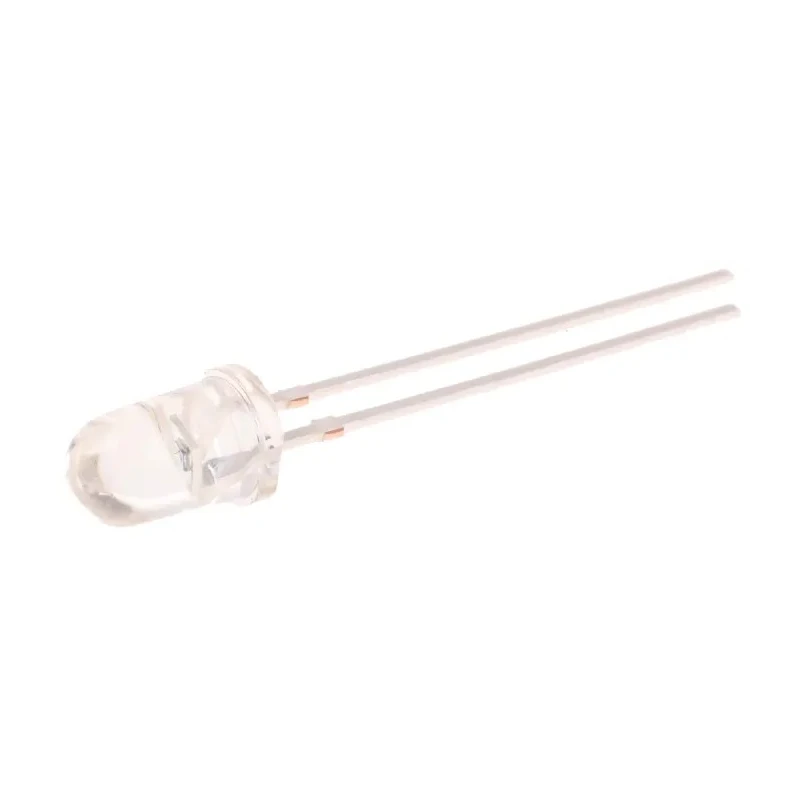

Vishay Phototransistor 40° Infrared, Visible Light, Through Hole 2-Pin, 5 mm (T-1 3/4) BPW96C

Vishay BPW96C is a silicon NPN phototransistor in a clear plastic 5 mm (T-1 3/4) through-hole package designed to detect infrared and visible light with a sensitivity angle of 40°. This device combines high photosensitivity and fast response times, making it suitable for electronic control and drive circuit detection applications in industrial, laboratory, and manufacturing environments.

The BPW96C phototransistor offers a typical rise time of 2 μs and a fall time of 2.3 μs, enabling rapid light detection and switching. Its peak wavelength sensitivity of 850 nm supports near-infrared applications including sensor and measurement systems. With a maximum collector current of 50 mA, it reliably handles typical signal levels while operating in temperature extremes from -40°C up to 100°C.

Its through-hole 2-pin mounting and compact 5 mm package simplify integration onto printed circuit boards where precise light sensing is necessary. The clear plastic package enhances infrared and visible light detection capabilities. The device complies with RoHS directives, ensuring environmentally conscious manufacturing and disposal.

The BPW96C is suitable for use in electronics manufacturing, automation systems, sensor instrumentation, industrial control panels, and optical switching. Its compact dimensions - height of 8.6 mm, width of 5.75 mm, and diameter of 5 mm - facilitate use in space-constrained designs. Voltage ratings include 70 V collector-emitter and 5 V emitter-collector, supporting a wide range of system voltages.

This phototransistor provides high photosensitivity in a compact 5 mm housing. Fast typical rise and fall times of 2 μs and 2.3 μs respectively. Peak wavelength of 850 nm for near-infrared detection. Maximum collector current rating of 50 mA for reliable operation.

Wide operating temperature range from -40°C to 100°C. RoHS compliant for environmentally safe use. Through-hole 2-pin mounting style for easy PCB integration. Angle of half sensitivity 40° for directed sensing. Maximum voltages: 70 V collector-emitter, 5 V emitter-collector.

Compact physical size suitable for space-limited applications. Explore EnvMart for more Vishay Phototransistors and electronic components to enhance your industrial and laboratory instrument designs with precise and reliable optical sensors.
