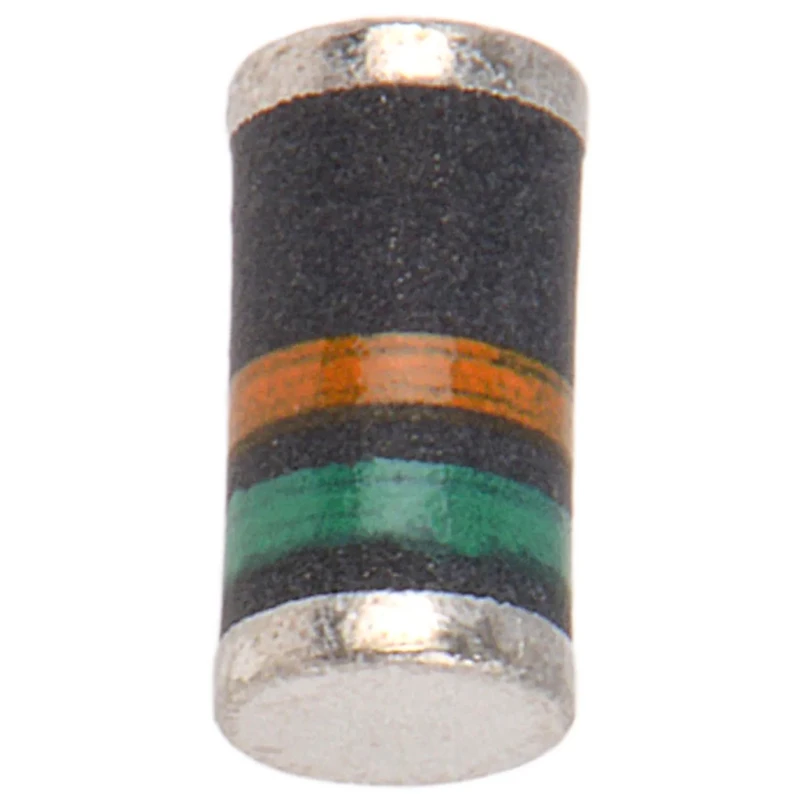

Vishay 200 V 1 A General Purpose Diode Ultrafast Recovery 2-Pin DO-213AB BYM12-200-E3/96
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.67mm |
| Brand | Vishay |
| Height | 2.67mm |
| Length | 5.2mm |
| Model | BYM12-200-E3/96 |
| Width | 2.67mm |
| Mount Type | Surface |
| Series | BYM12-xxx |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-213AB |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
| Semikron 50V 1A, Silicon Junction Diode, 2-Pin DO-213AB SUF4001Brand | Semikron |
Key Features
- Maximum continuous forward current of 1 ampere for reliable operation.
- Peak reverse repetitive voltage rated at 200 volts ensures robust blocking capability.
- Low forward voltage drop of 1 volt enhances energy efficiency.
- Ultrafast recovery time of 50 nanoseconds suitable for switched mode power supplies.
- Compact surface mount package DO-213AB with 2 pins for ease of PCB integration.
- Operating temperature range from -65°C to 175°C suitable for harsh conditions.
- Peak non-repetitive forward surge current up to 30 amperes for transient load handling.
- Compliance with RoHS standards assures environmental safety.
Product Description
Vishay BYM12-200-E3/96 is a high-quality, general purpose diode designed primarily for ultrafast recovery in demanding electronic circuits. Packaged in a compact DO-213AB 2-pin surface mount format, it delivers a maximum continuous forward current of 1 ampere and can withstand peak reverse repetitive voltages up to 200 volts. This diode is engineered to provide efficient operation with a low forward voltage drop of 1 volt and an ultrafast recovery time of 50 nanoseconds, making it ideal for high frequency switched mode power supplies and inverter circuits.
The diode operates reliably in extreme temperatures ranging from -65°C up to 175°C, supporting robust performance in industrial, laboratory, and power electronics applications. Its peak non-repetitive forward surge current rating of 30 amperes ensures durable transient load handling capability. This Vishay ultrafast recovery rectifier is manufactured to comply with RoHS environmental standards, ensuring safety and regulatory compliance.
With its single diode configuration and surface mount DO-213AB package, the BYM12-200-E3/96 provides a compact and efficient solution for power conversion, freewheeling diode tasks, and other general purpose rectification needs in commercial and industrial electronics systems.
Maximum continuous forward current of 1 ampere for reliable operation. Peak reverse repetitive voltage rated at 200 volts ensures robust blocking capability. Low forward voltage drop of 1 volt enhances energy efficiency.
Ultrafast recovery time of 50 nanoseconds suitable for switched mode power supplies. Compact surface mount package DO-213AB with 2 pins for ease of PCB integration. Operating temperature range from -65°C to 175°C suitable for harsh conditions.
Peak non-repetitive forward surge current up to 30 amperes for transient load handling. Compliance with RoHS standards assures environmental safety.
This diode is well suited for applications in industrial electronics, power supplies, inverters, and other high frequency switching environments where efficiency and fast recovery are critical. Choose Vishay BYM12-200-E3/96 for durable and efficient semiconductor diode solutions backed by decades of manufacturing excellence.
Discover more quality electronic components by exploring EnvMart’s Semiconductor and Diode categories for industrial and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 1 ampere.
This diode has a peak reverse repetitive voltage rating of 200 volts.
The forward voltage drop for this diode is 1 volt.
It features an ultrafast recovery time of 50 nanoseconds, making it suitable for high-frequency applications.
The operating temperature range is from -65°C to 175°C, allowing it to perform in harsh conditions.
This diode is packaged in a DO-213AB format with a 2-pin configuration.
The peak non-repetitive forward surge current rating is up to 30 amperes.
It complies with RoHS standards, ensuring environmental safety.
The dimensions are 5.2mm in length, 2.67mm in width, and 2.67mm in height.
This is a general purpose diode designed for ultrafast recovery applications.
The peak reverse current for this diode is rated at 5 microamperes.
This diode is manufactured in India.
