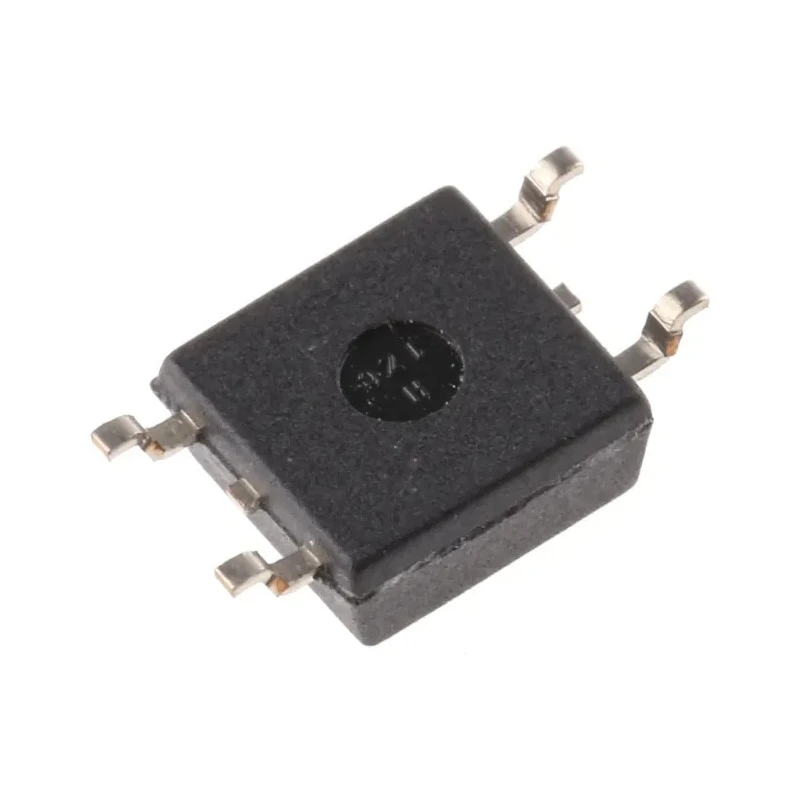

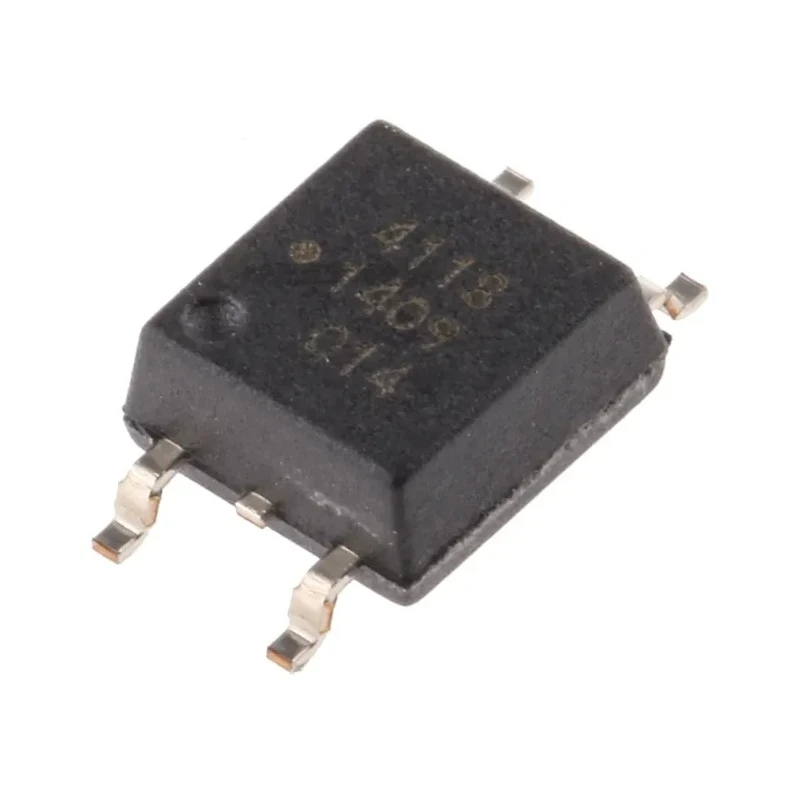

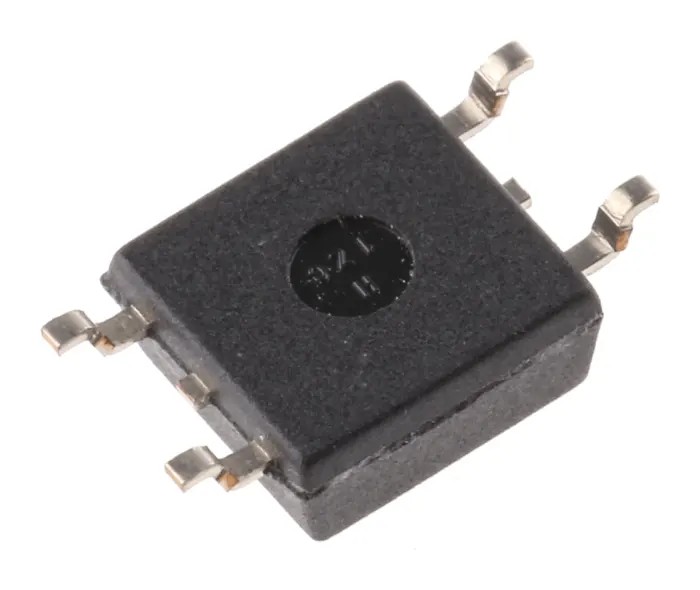

Broadcom Solid State Relay Surface Mount 0.1 A Load 400 V Load 0.8V Control ASSR-4118-003E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Height | 2mm |
| Length | 4.3mm |
| Model | ASSR-4118-003E |
| Width | 4.4mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | ASSR-4118 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 0.4pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | 4-Pin |
| Maximum Load Current | 0.1A |
| Standards/Approvals | UL, IEC, CSA, RoHS |
| Maximum Load Voltage | 400V |
| Minimum Load Voltage | -400V |
| Minimum Control Voltage | 1.1V |
| Maximum Control Voltage | 0.8V |
| Off State Leakage Current | 1μA |
| On State Resistance | 8Ω |
Key Features
- Compact surface mount package suitable for automated assembly.
- High voltage MOSFET output ensures fast and reliable switching.
- Wide operating temperature range from -40°C to 85°C allows use in industrial environments.
- Low on-state resistance of 8 ohms minimizes power loss during operation.
- Typical off-state leakage current is only 1 microampere, ensuring minimal power consumption.
- Capacitance rating of 0.4 picofarads suitable for low noise operation.
- Designed with a 4-pin terminal type and SPST contact configuration.
- Complies with UL, IEC, CSA, and RoHS standards for safety and environmental compliance.
Product Description
Broadcom ASSR-4118-003E is a high-quality Solid State Relay designed for surface mount applications requiring a load current capacity of 0.1 A and a load voltage rating up to 400 V.
This relay utilizes a Photo MOSFET output type, offering fast switching speeds and enhanced reliability without mechanical wear. Its compact dimensions of 4.3 mm length, 4.4 mm width, and 2 mm height allow integration into space-constrained printed circuit board layouts.
The device operates reliably across a wide temperature range from -40°C to 85°C, making it suitable for various industrial, automation, and electronic control applications. In addition, its low on-state resistance of 8 ohms and minimal off-state leakage current of 1 µA contribute to efficient power management.
Compact surface mount design for automated PCB assembly. Supports load current up to 0.1 A and voltage up to 400 V. Wide operating temperature range suitable for industrial environments. Low on-state resistance ensures efficient power usage.
Minimal off-state leakage reduces power losses in standby mode. Capacitance of 0.4 pF enables low noise switching. Complies with major international safety and environmental standards. 4-pin configuration with SPST contact type for easy connection.
Control voltage between 0.8 V and 1.1 V allows versatile interfacing.
This Solid State Relay is ideal for applications in industrial automation, electronic equipment, manufacturing control systems, and other electronic control scenarios where reliable, compact, and long-lasting relay switching is required.
Discover further components and accessories within the electronic relays category on EnvMart to complement your electrical and automation projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 0.1 A.
This model has a load voltage rating of up to 400 V.
The control voltage for this relay ranges from 0.8 V to 1.1 V.
The dimensions of this relay are 4.3 mm in length, 4.4 mm in width, and 2 mm in height.
It utilizes a Photo MOSFET output type for fast switching speeds and reliability.
The on-state resistance of this model is 8 ohms, which helps minimize power loss during operation.
The typical off-state leakage current is only 1 microampere (1 µA), ensuring minimal power consumption.
The relay operates reliably across a wide temperature range from -40°C to 85°C.
It features a SPST (Single Pole Single Throw) contact configuration.
This relay complies with UL, IEC, CSA, and RoHS standards for safety and environmental compliance.
The capacitance rating of this model is 0.4 picofarads, suitable for low noise operation.
